Control Assembly: Service and Repair

Heating Ventilation Air Conditioning (HVAC) Module









Removal and Installation

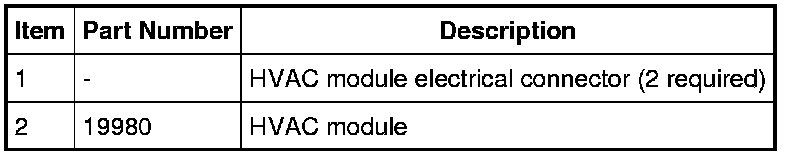

1. Remove the Audio Control Module (ACM). For additional information, refer to Accessories and Optional Equipment. Communications Control Module

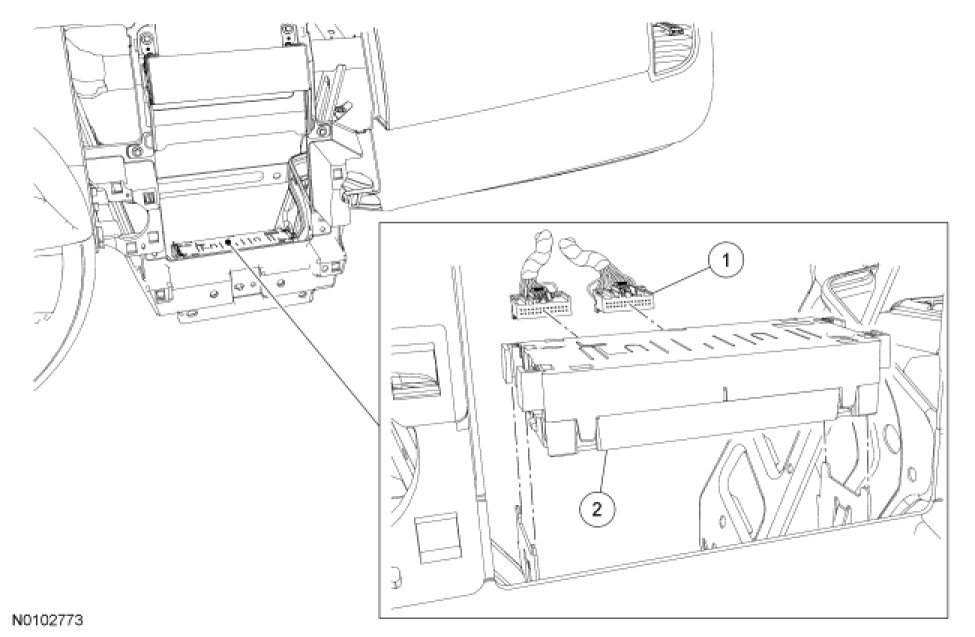

2. Disconnect the 2 HVAC module electrical connectors.

3. Release the retaining tabs and remove the HVAC module.





4. To install, reverse the removal procedure.
