LH Ignition Components - Exploded View

Engine Ignition Components - Exploded View

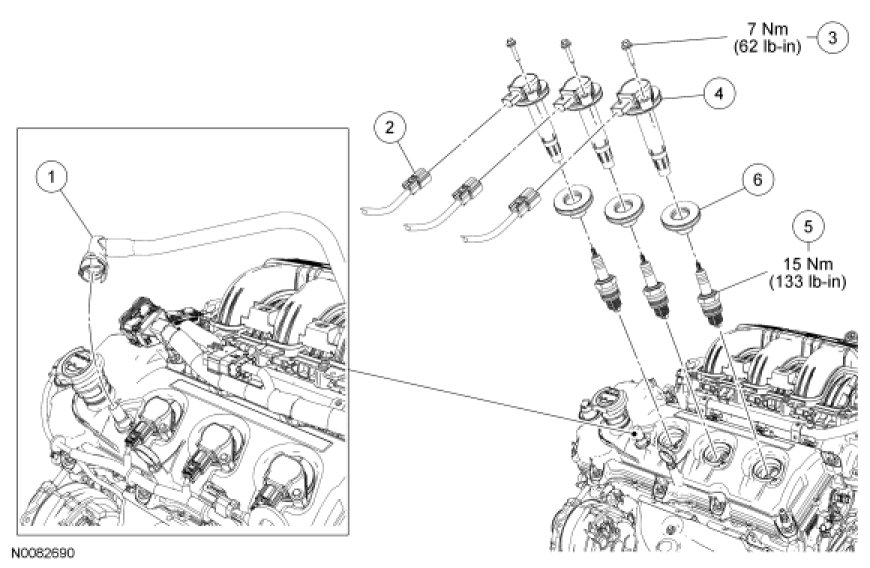

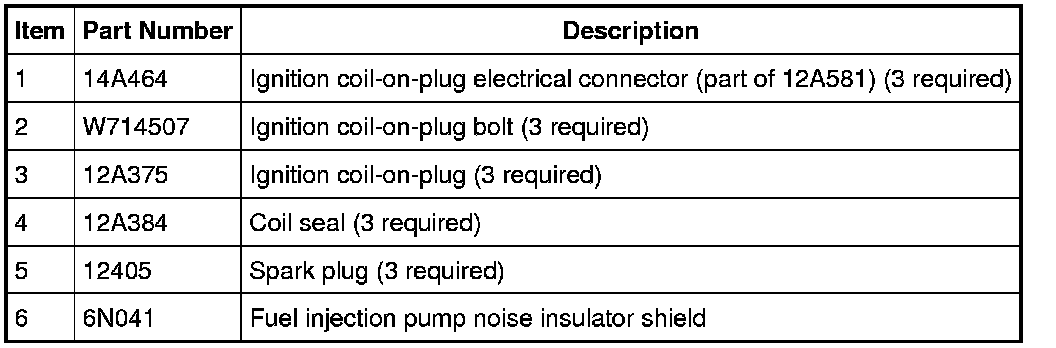

3.5L LH Side

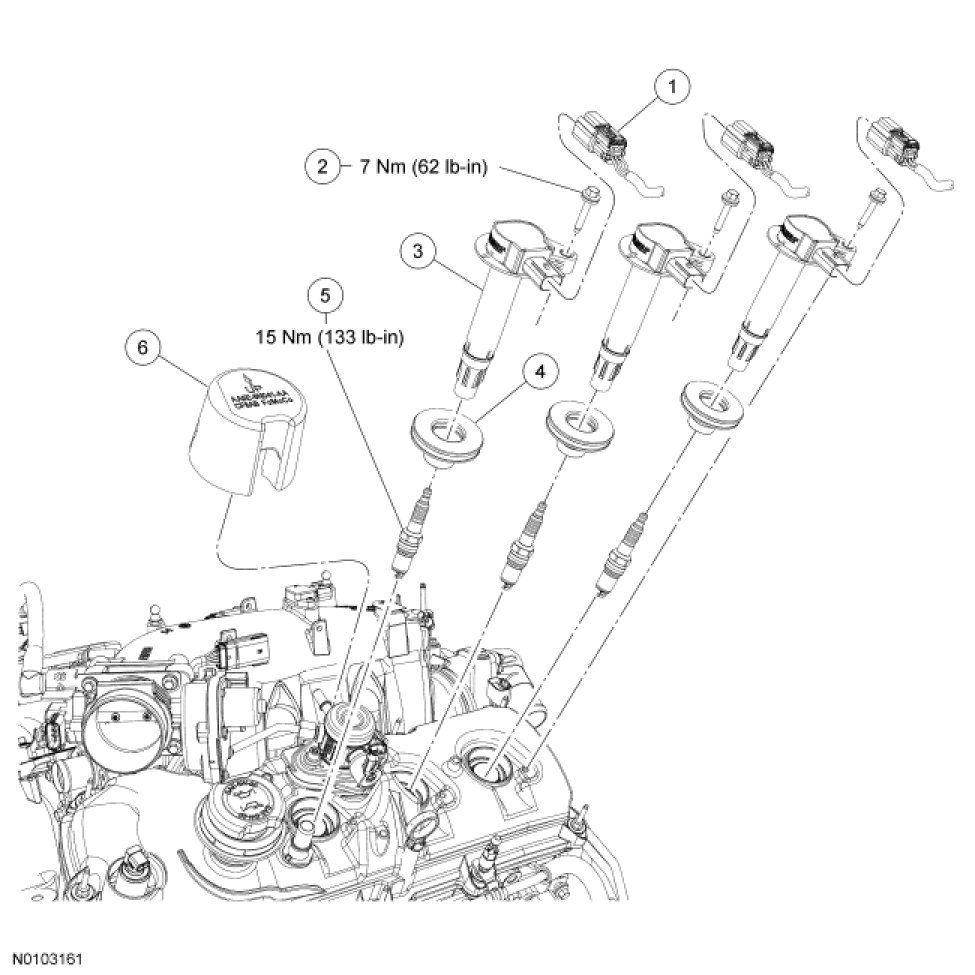

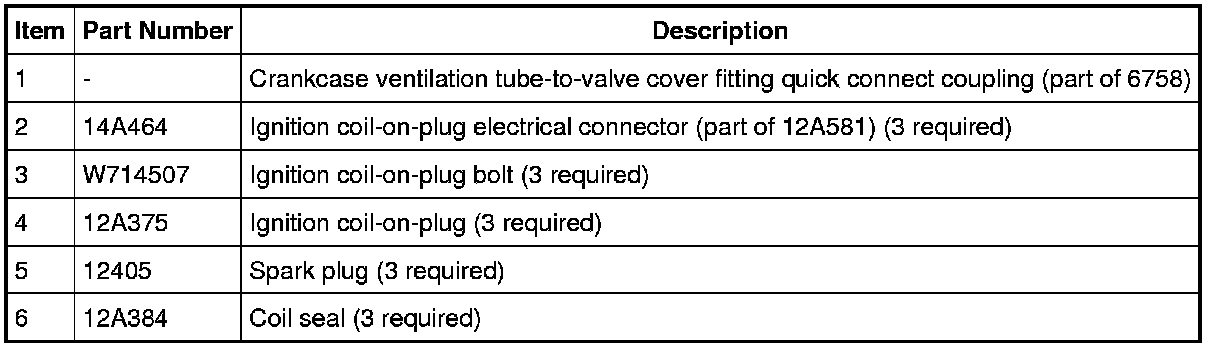

3.5L Gasoline Turbocharged Direct Injection (GTDI) LH Side
