Part 2

Engine



















Engine Upper











Engine Upper - LH Cylinder Head











Engine Upper - RH Cylinder Head











Engine Front

NOTE: Early build shown, late build similar.













Lower Engine Block (View 1)











Lower Engine Block (View 2)









NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

NOTICE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.

NOTE: On early build engines, the timing chain rides on the inner side of the RH timing chain guide. Late build engines are equipped with a different design RH timing chain guide that requires the timing chain to ride on the outer side of the RH timing chain guide. For service, all replacement RH timing chain guides will be the late build design.

NOTE: Assembly of the engine requires various inspections/measurements of the engine components (engine block, crankshaft, connecting rods, pistons and piston rings). These inspections/measurements will aid in determining if the engine components will require replacement. For additional information, refer to Engine.

Engines equipped with late build/replacement RH timing chain guides

53. Install the RH primary timing chain guide and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).





All vehicles

54. Install the RH secondary timing chain tensioner and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).





55. NOTE: Use a camshaft sprocket bolt to turn the camshafts.

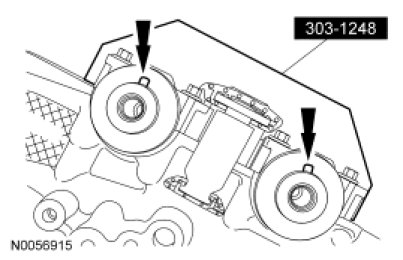

Rotate the RH camshafts to the Top Dead Center (TDC) position and install the Camshaft Holding Tool on the flats of the camshafts.





56. Assemble the RH Variable Camshaft Timing (VCT) assembly, the RH exhaust camshaft sprocket and the RH secondary timing chain.
- Align the colored links with the timing marks.





57. Position the RH secondary timing assembly onto the camshafts.





58. Install the new VCT bolt and the exhaust camshaft bolt and the original washer. Tighten in 4 stages.
- Stage 1: Tighten to 40 Nm (30 lb-ft).

- Stage 2: Loosen one full turn.

- Stage 3: Tighten to 10 Nm (89 lb-in).

- Stage 4: Tighten 90 degrees.





59. Remove the lockpin from the RH secondary timing chain tensioner.





60. Install the LH secondary timing chain tensioner and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).





61. NOTE: Use a camshaft sprocket bolt to turn the camshafts.

Rotate the LH camshafts to the TDC position and install the Camshaft Holding Tool on the flats of the camshafts.





62. Assemble the LH VCT assembly, the LH exhaust camshaft sprocket and the LH secondary timing chain.
- Align the colored links with the timing marks.





63. Position the LH secondary timing assembly onto the camshafts.





64. Install the new VCT bolt and the exhaust camshaft bolt and the original washer. Tighten in 4 stages.
- Stage 1: Tighten to 40 Nm (30 lb-ft).

- Stage 2: Loosen one full turn.

- Stage 3: Tighten to 10 Nm (89 lb-in).

- Stage 4: Tighten 90 degrees.





65. Remove the lockpin from the LH secondary timing chain tensioner.





66. Rotate the crankshaft clockwise 60 degrees to the TDC position (crankshaft dowel pin at 11 o'clock).





67. Install the crankshaft timing chain sprocket.





68. Install the primary timing chain with the colored links aligned with the timing marks on the VCT assemblies and the crankshaft sprocket.





69. Install the upper LH primary timing chain guide and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).





70. Install the lower LH primary timing chain guide and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).





71. Install the primary timing chain tensioner arm.





72. Reset the primary timing chain tensioner.
- Rotate the lever counterclockwise.

- Using a soft-jawed vise, compress the plunger.

- Align the hole in the lever with the hole in the tensioner housing.

- Install a suitable lockpin.





73. NOTE: It may be necessary to rotate the crankshaft slightly to remove slack from the timing chain and install the tensioner.

Install the primary tensioner and the 2 bolts.

- Tighten to 10 Nm (89 lb-in).

- Remove the lockpin.





74. As a post-check, verify correct alignment of all timing marks.





75. Inspect the VCT housing seals for damage and replace as necessary.

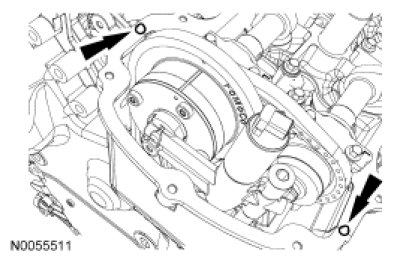

76. NOTICE: Make sure the dowels on the Variable Camshaft Timing (VCT) housing are fully engaged in the cylinder head prior to tightening the bolts. Failure to follow this instruction will result in severe engine damage.

Install the LH VCT housing and the 3 bolts.

- Tighten in the sequence shown to 10 Nm (89 lb-in).





77. NOTICE: Make sure the dowels on the Variable Camshaft Timing (VCT) housing are fully engaged in the cylinder head prior to tightening the bolts. Failure to follow this instruction will result in severe engine damage.

Install the RH VCT housing and the 3 bolts.

- Tighten in the sequence shown to 10 Nm (89 lb-in).

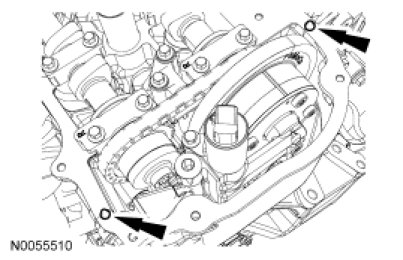

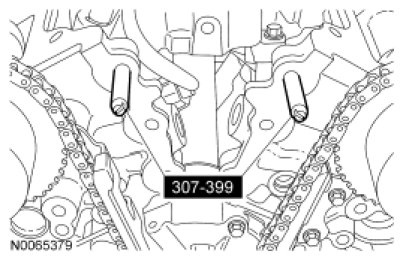

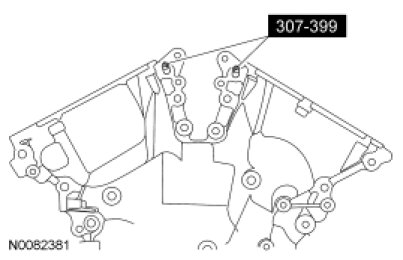

78. Install the Alignment Pins.





79. NOTICE: Failure to use Motorcraft(R) High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The engine front cover and bolts 17, 18, 19 and 20 must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts and the engine mount bracket bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow these instructions can cause future oil leakage.

Apply a 3.0 mm (0.11 in) bead of Motorcraft(R) High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the 3 engine mount bracket bosses.

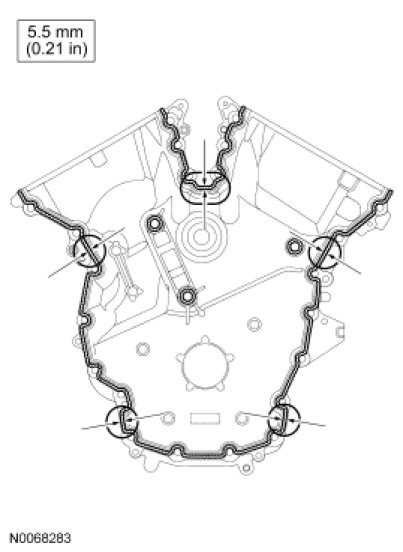

- Apply a 5.5 mm (0.21 in) bead of Motorcraft(R) High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in 5 places as indicated.





80. NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

Install the engine front cover and bolts 17, 18, 19 and 20.

- Tighten in sequence to 3 Nm (27 lb-in).





81. Remove the Alignment Pins.





82. NOTE: Do not tighten the bolts at this time.

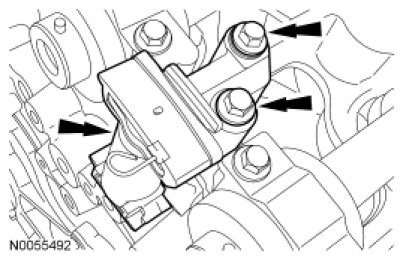

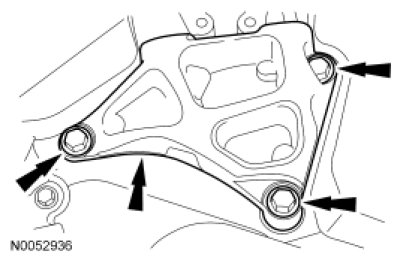

Install the engine mount bracket and the 3 bolts.





83. NOTICE: Do not expose the Motorcraft(R) High Performance Engine RTV Silicone to engine oil for at least 90 minutes after installing the engine front cover. Failure to follow this instruction may cause oil leakage.

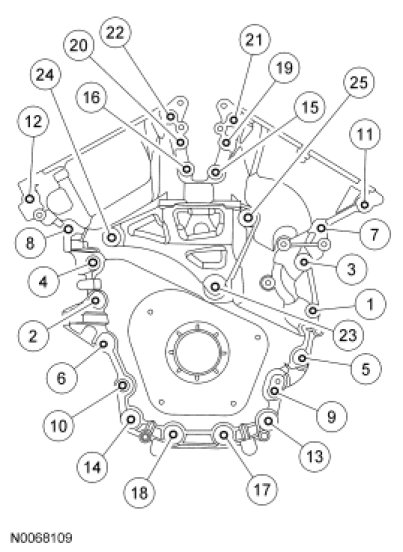

Install the remaining engine front cover bolts. Tighten all of the engine front cover bolts and engine mount bracket bolts in the sequence shown in 2 stages:

- Stage 1: Tighten bolts 1 thru 22 to 10 Nm (89 lb-in) and bolts 23, 24 and 25 to 15 Nm (133 lb-in).

- Stage 2: Tighten bolts 1 thru 22 to 24 Nm (18 lb-ft) and bolts 23, 24 and 25 to 75 Nm (55 lb-ft).





84. NOTICE: The thread sealer on the engine mount studs (including new engine mount studs if applicable) must be cleaned off with a wire brush and new Threadlock and Sealer applied prior to installing the engine mount studs. Failure to follow this procedure may result in damage to the engine mount studs or engine.
Install the engine mount studs in the following sequence.

1. Clean the front cover engine mount stud holes with pressurized air to remove any foreign material.

2. Clean all the thread sealer from the engine mount studs (old and new studs).

3. Apply new Threadlock and Sealer to the engine mount stud threads.

4. Install the 2 engine mount studs.
- Tighten to 20 Nm (177 lb-in).





85. Install the Heated Oxygen Sensor (HO2S) connector bracket and bolt to the engine front cover.
- Tighten to 10 Nm (89 lb-in).

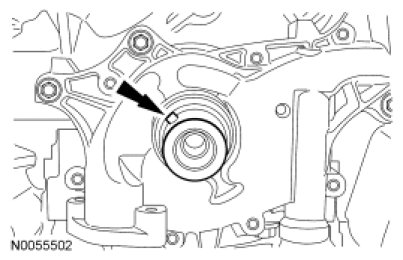

86. NOTE: Apply clean engine oil to the crankshaft front seal bore in the engine front cover.

Using the Crankshaft Vibration Damper Installer and Front Crankshaft Seal Installer, install a new crankshaft front seal.





87. NOTE: Lubricate the outside diameter sealing surfaces with clean engine oil.

Using the Crankshaft Vibration Damper Installer and Front Cover Oil Seal Installer, install the crankshaft pulley.

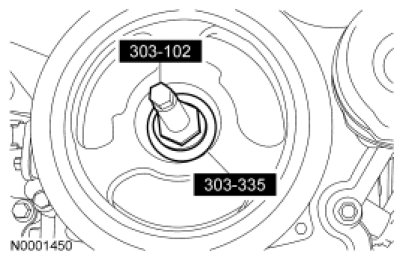

88. Using the Strap Wrench, install the crankshaft pulley washer and new bolt and tighten in 4 stages.
- Stage 1: Tighten to 120 Nm (89 lb-ft).

- Stage 2: Loosen one full turn.

- Stage 3: Tighten to 50 Nm (37 lb-ft).

- Stage 4: Tighten an additional 90 degrees.





89. NOTE: Installation of new seals is only required if damaged seals were removed during disassembly of the engine.

NOTE: Spark plug tube seal installation shown, VCT solenoid seal installation similar.

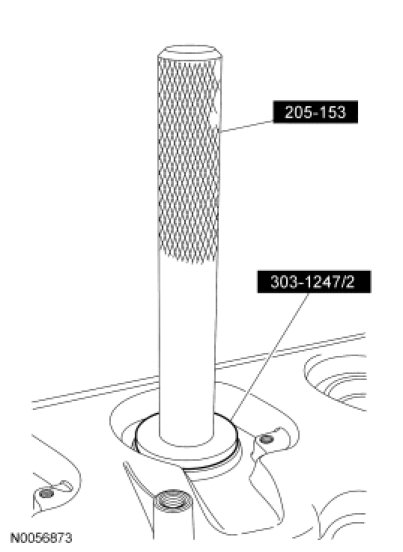

Using the VCT Spark Plug Tube Seal Installer and Handle, install new VCT solenoid and/or spark plug tube seals.





90. NOTICE: Failure to use Motorcraft(R) High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow these instructions can cause future oil leakage.

Apply an 8 mm (0.31 in) bead of Motorcraft(R) High Performance Engine RTV Silicone to the engine front cover-to-RH cylinder head joints.





91. Using a new gasket, install the RH valve cover and tighten the 11 stud bolts.

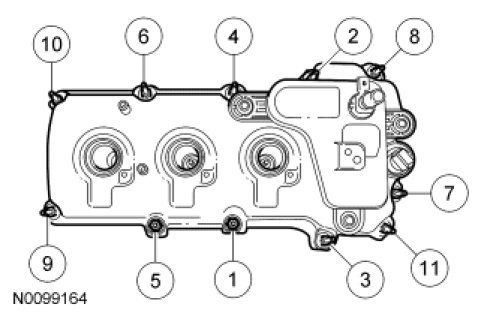

- Tighten in the sequence shown to 10 Nm (89 lb-in).





92. NOTICE: Failure to use Motorcraft(R) High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow these instructions can cause future oil leakage.

Apply an 8 mm (0.31 in) bead of Motorcraft(R) High Performance Engine RTV Silicone to the engine front cover-to-LH cylinder head joints.





93. Using a new gasket, install the LH valve cover and tighten the 10 stud bolts.
- Tighten in the sequence shown to 10 Nm (89 lb-in).





94. Install the 3 LH ignition coil-on-plugs and the 3 bolts.
- Tighten to 7 Nm (62 lb-in).





95. Install the 3 RH ignition coil-on-plugs and the 3 bolts.
- Tighten to 7 Nm (62 lb-in).





96. NOTE: Make sure to thoroughly clean any residual fuel or foreign material from the cylinder head, block and the general surrounding area of the fuel rails and injectors.

Using the Fuel Injector Brush, clean the fuel injector orifices.





97. NOTICE: Do not attempt to cut the lower Teflon(R) seal without first pulling it away from the fuel injector or damage to the injector may occur.

NOTE: Be very careful when removing the lower Teflon(R) seals, not to scratch, nick or gouge the fuel injectors.

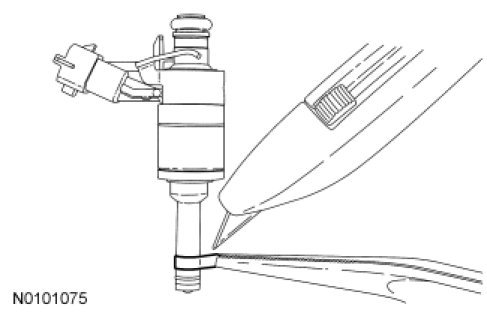

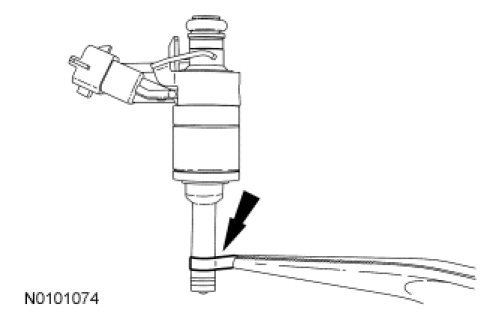

Pull the Teflon(R) seal away from the injector with narrow tip pliers.





98. Carefully cut and remove the 6 lower fuel injector Teflon(R) seals.
- Discard the 6 lower fuel injector Teflon(R) seals.





99. NOTE: Do not lubricate the 6 new lower Teflon(R) fuel injector seals.

NOTE: The original lower Teflon(R) fuel injector seals may be either black or white. When installing new seals, always use the black Teflon(R) fuel injector seals.

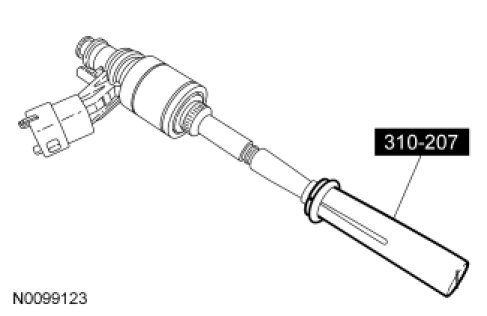

Install the new Teflon(R) seals on the narrow end of the Arbor (part of the Fuel Injector Seal Installer), then install the Arbor on the fuel injector tips.

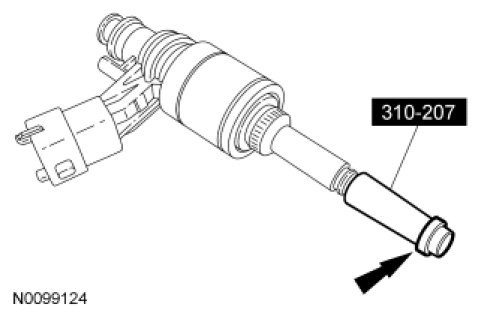

100. Using the Pusher Tool (part of the Fuel Injector Seal Installer), slide the Teflon(R) seals off of the Arbor and into the groove on the fuel injectors.





101. Place the Adjustment Ring (part of the Fuel Injector Seal Installer) beveled side first, over the fuel injector tip until it bottoms out against the fuel injector and turn 180 degrees.
- After one minute, turn the Adjustment Ring back 180 degrees and remove.





102. NOTICE: It is very important to note the routing of the fuel charge wiring harnesses on the fuel rails and index-mark the location of the tie straps prior to removal or damage may occur to the wire harnesses during installation. The illustration details the correct fuel charge wire harness routing and tie strap positioning for installation.

Install the fuel charge wire harnesses and tie straps to the index-marked locations on the fuel rails. Start by attaching the first tie strap farthest down the wire harness and continue to the connector end of the harness, leaving ample slack between the fuel injectors.





103. NOTICE: Use fuel injector O-ring seals that are made of special fuel-resistant material. The use of ordinary O-ring seals may cause the fuel system to leak. Do not reuse the O-ring seals.

NOTE: To install, apply clean engine oil to the 6 new upper fuel injector O-ring seals only. Do not lubricate the lower fuel injector Teflon(R) seals.

NOTE: Inspect the fuel injector support disks and replace if necessary.

Install the 6 new upper fuel injector O-ring seals.





104. Install the 6 new fuel injector clips.
