Front Crankshaft Seal: Service and Repair

Crankshaft Front Seal









Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Remove the crankshaft pulley. For additional information, refer to Crankshaft Pulley Service and Repair.

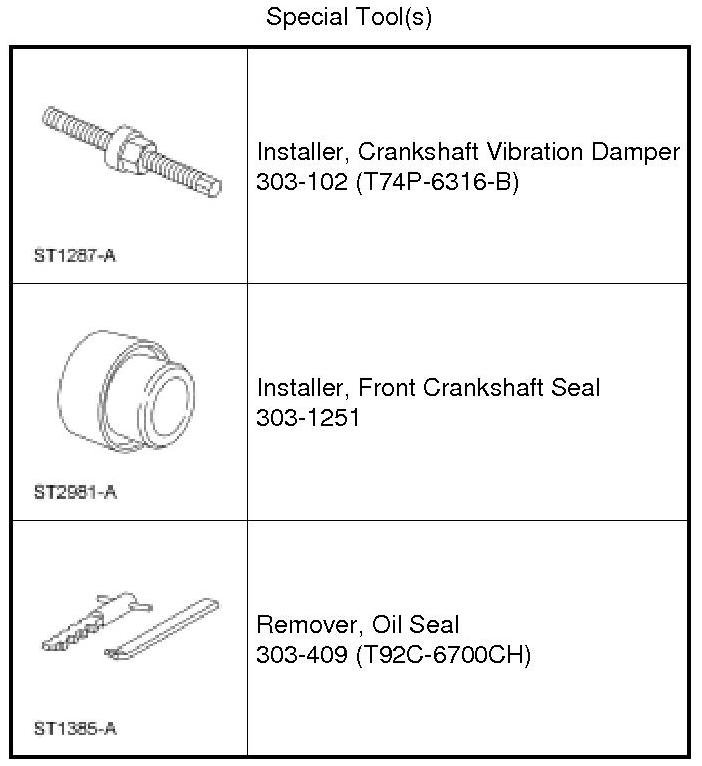

3. Using the Oil Seal Remover, remove and discard the crankshaft front seal.

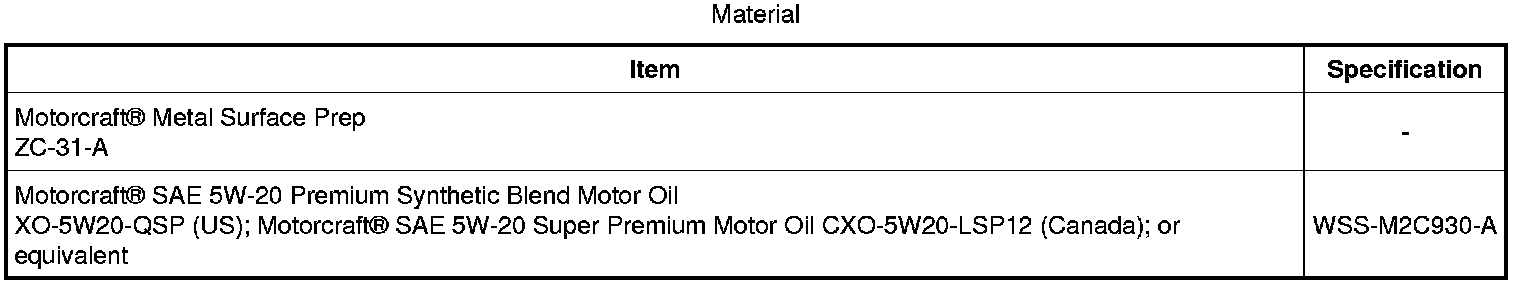

- Clean all sealing surfaces with metal surface prep.





Installation

1. NOTE: Apply clean engine oil to the crankshaft front seal bore in the engine front cover.

Using the Front Crankshaft Seal Installer and Crankshaft Vibration Damper Installer, install a new crankshaft front seal.





2. Install the crankshaft pulley. For additional information, refer to Crankshaft Pulley Service and Repair.
