Removal and Replacement

Engine Mount













Removal and Installation

1. Drain the cooling system. For additional information, refer to Cooling System &/or Engine Block Heater.

2. Remove the LH catalytic converter. For additional information, refer to Exhaust System &/or Catalytic Converter.

3. NOTICE: The Oil Pan Holding Fixture must be carefully aligned to the mounting bosses on the oil pan. Failure to follow these instructions may result in damage to the oil pan.

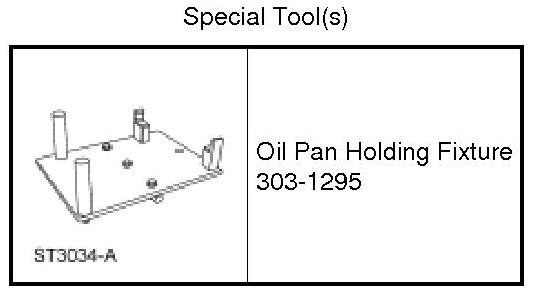

Position a floor jack and the Oil Pan Holding Fixture under the oil pan.





4. Remove the noise generator. For additional information, refer to Intake Air System Components - Exploded View in Fuel Delivery and Air Induction.

5. Remove the engine coolant degas bottle. For additional information, refer to Cooling System &/or Engine Block Heater.

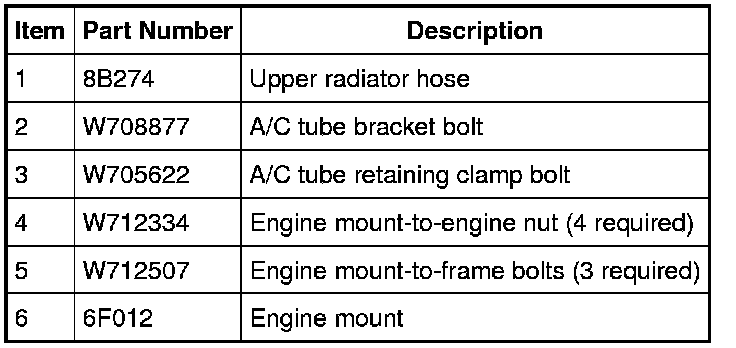

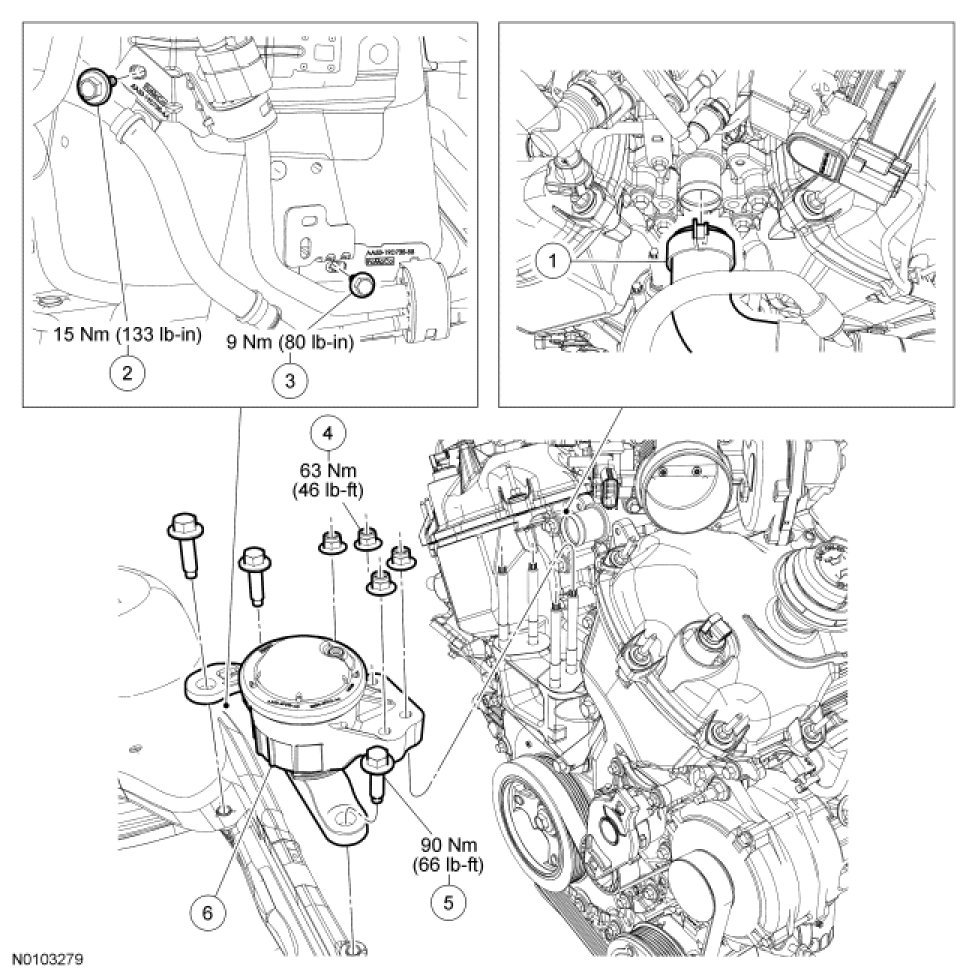

6. Disconnect the upper radiator hose from the intake manifold.

7. Remove the A/C tube bracket bolt from the upper RH shock tower.
- To install, tighten to 15 Nm (133 lb-in).

8. Remove the A/C tube retaining clamp bolt from the lower RH shock tower.
- To install, tighten to 9 Nm (80 lb-in).

9. Remove the 4 engine mount nuts.
- To install, tighten to 63 Nm (46 lb-ft).

10. Remove the 3 bolts and the engine mount.
- To install, tighten to 90 Nm (66 lb-ft).

11. To install, reverse the removal procedure.

12. Fill and bleed the cooling system. For additional information, refer to Cooling System &/or Engine Block Heater.
