Engine

Engine

NOTE: On early build engines, the timing chain rides on the inner side of the RH timing chain guide. Late build engines are equipped with a different design RH timing chain guide that requires the timing chain to ride on the outer side of the RH timing chain guide. For service, all replacement RH timing chain guides will be the late build design.

The 3.5L Gasoline Turbocharged Direct Injection (GTDI) (4V) is a V-6 engine with the following features:

- Dual overhead camshafts
- Four valves per cylinder
- GTDI
- An aluminum intake manifold
- Aluminum cylinder heads
- An aluminum, 60-degree V-cylinder block
- Timing chain driven coolant pump
- Variable Camshaft Timing (VCT) system
- The electronic ignition system with 6 ignition coils


Engine Identification

For quick identification, refer to the safety certification decal.

- The decal is located on the LH front door lock face panel.

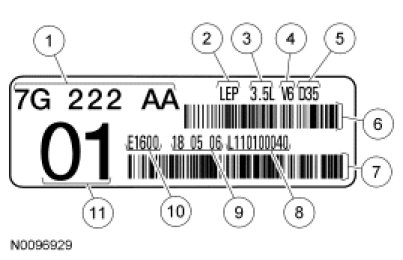

Engine Code Information Label

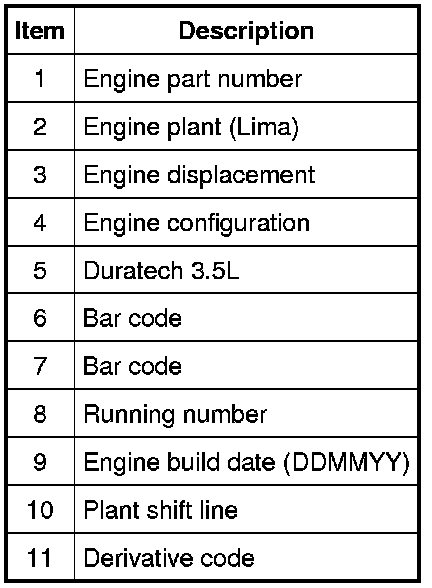

The engine code information label, located on the front side of the valve cover, contains the following:











Engine Cylinder Identification






Exhaust Emission Control System

Operation and required maintenance of the exhaust emission control devices used on this engine is covered in Computers and Control Systems Information.


Induction System

The GTDI is Pulse Width Modulated (PWM).

Fuel is metered directly into each combustion chamber. Fuel injectors pulse to follow engine firing order, in accordance with engine demand.

The various sensors detect any changes in the operating conditions and send signals to the PCM. This permits the PCM to control the opening duration (pulse width) of the fuel injectors and maintain optimum exhaust emission control and engine performance for all operating conditions.


Valve Train

The valve train uses Direct Acting Mechanical Buckets (DAMB). The camshaft lobes are positioned directly above mechanical buckets which are positioned on top of the valves.


Variable Camshaft Timing (VCT) System

The VCT system changes intake camshaft timing dependent on engine speed, load and oil temperature. Oil pressure advances and retards camshaft timing to improve low-speed and high-speed engine performance, engine idle quality and exhaust emissions.


PCV System

All engines are equipped with a closed-type PCV system recycling the crankcase vapors to the upper intake manifold.


Lubrication System

The engine lubrication system is of the force-feed type in which oil is supplied under full pressure to the crankshaft, connecting rod bearings, timing chain tensioners and VCT solenoids. The flow of oil to the valve tappets and valve train is controlled by a restricting orifice located in the cylinder head, front camshaft cap.


Oil Pump

The lubrication system is designed to provide optimum oil flow to critical components of the engine through its entire operating range.

The heart of the system is a positive displacement internal gear oil pump.

Generically, this design is known as a gerotor pump, which operates as follows:

- The oil pump is mounted on the front face of the cylinder block.
- The inner rotor is piloted on the crankshaft post and is driven through flats on the crankshaft.
- System pressure is limited by an integral, internally-vented relief valve which directs the bypassed oil back to the inlet side of the oil pump.
- Oil pump displacement has been selected to provide adequate volume to make sure of correct oil pressure both at hot idle and maximum speed.
- The relief valve calibration protects the system from excessive pressure during high-viscosity conditions.
- The relief valve is designed to provide adequate connecting rod bearing lubrication under high-temperature and high-speed conditions.


Cooling System

The engine cooling system includes the following:

- Radiator
- Timing chain driven coolant pump
- Electric fan assembly(s)
- Degas bottle (aids in maintaining the correct volume of engine coolant)
- Coolant thermostat
- Coolant hoses
