Fuel Tank Pressure Sensor
Fuel Tank Pressure Sensor

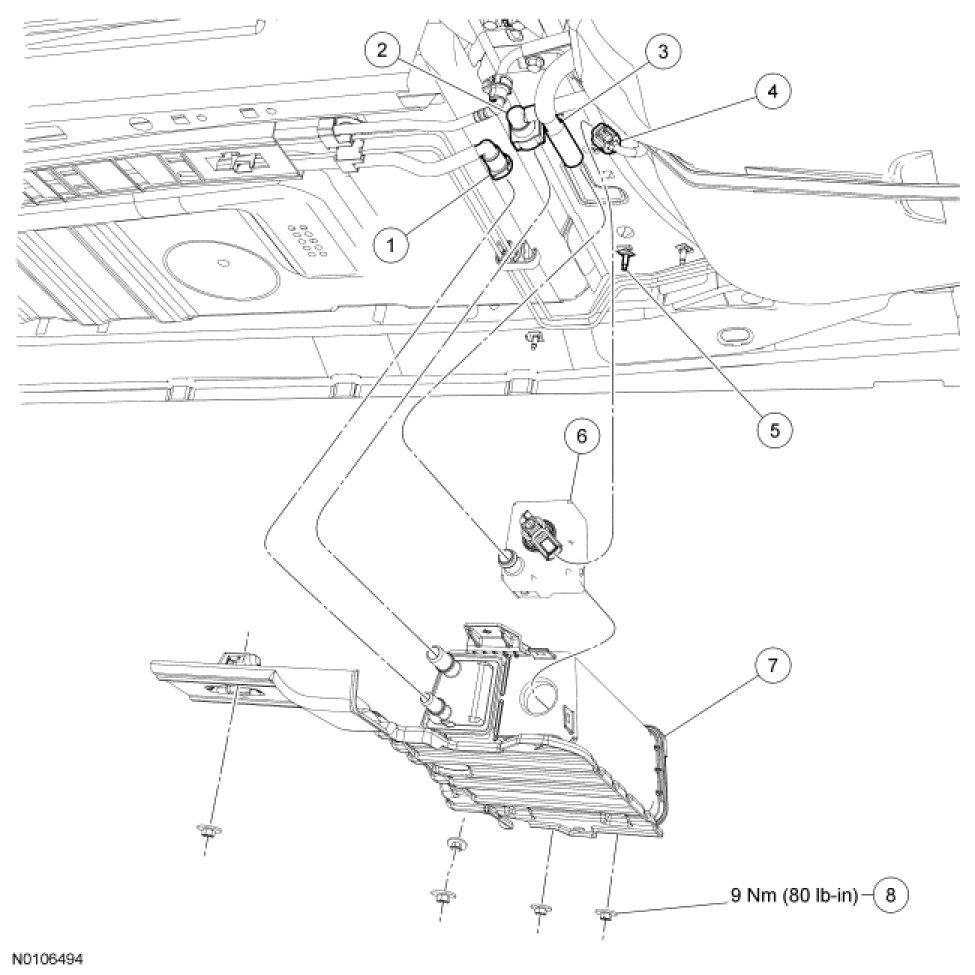

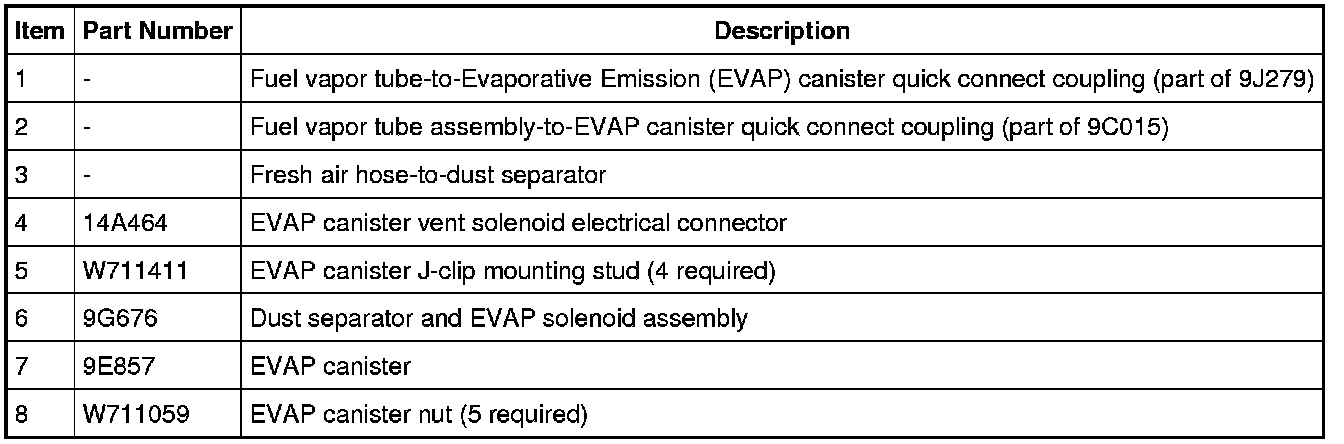

Evaporative Emission (EVAP) System Components - Exploded View
