Taurus AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exterior Moulding / Trim
Exterior Moulding / Trim

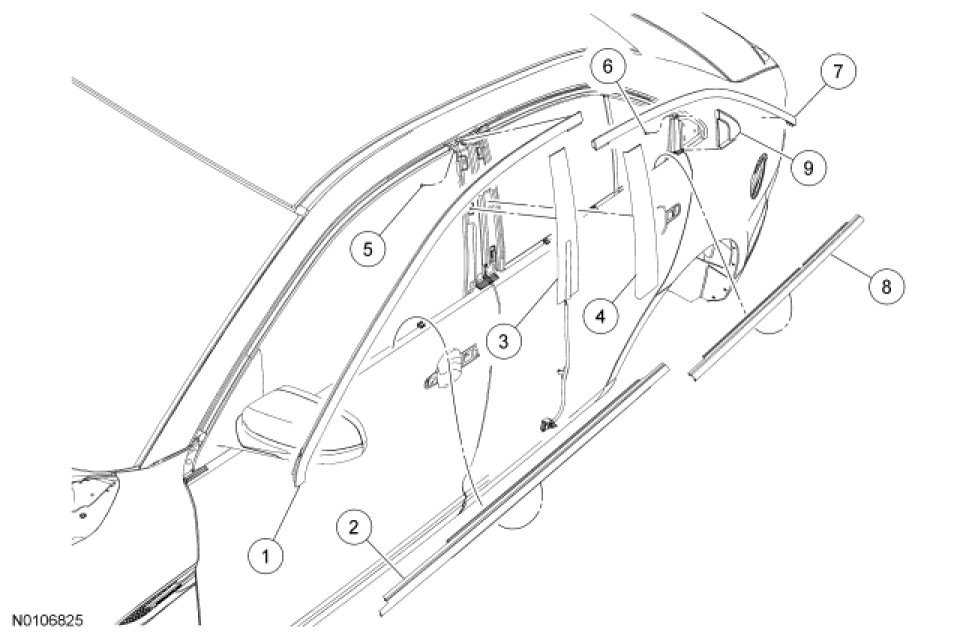

Exterior Trim - Exploded View

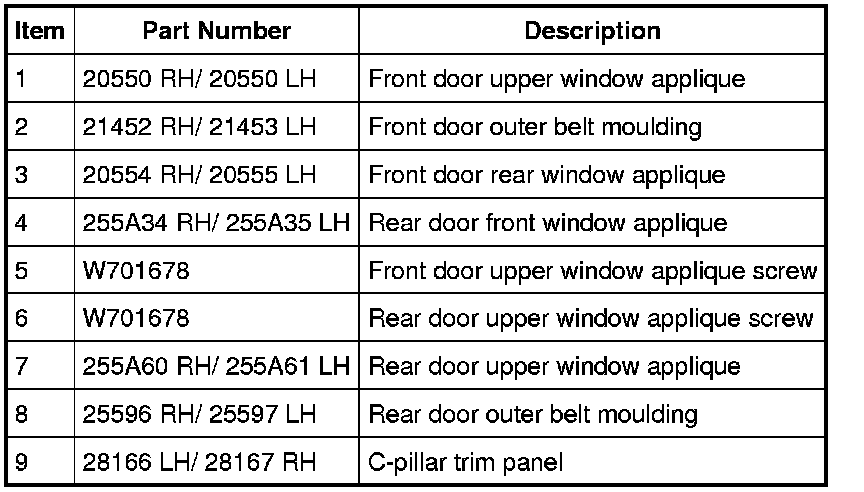

Upper Trim

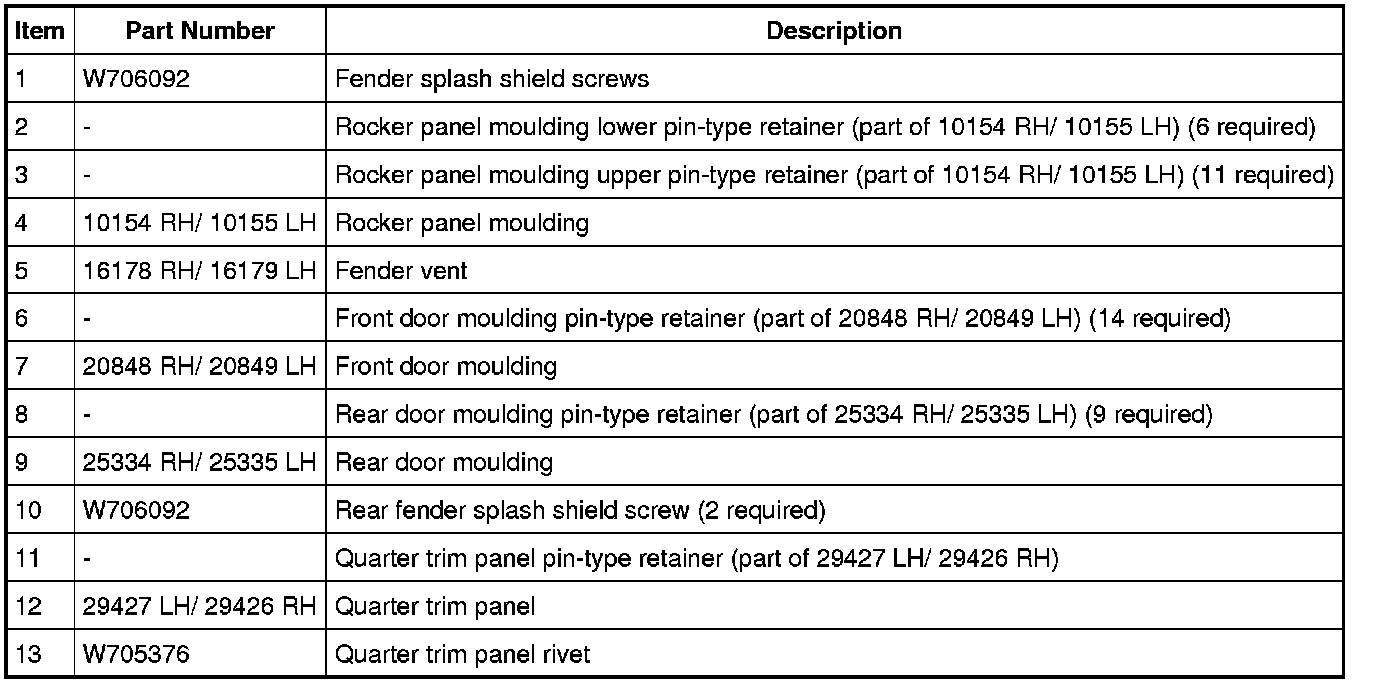

Lower Trim
