Home >> Ford >> 2010 >> Taurus AWD V6-3.5L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 25 (Electronic Engine Controls)

Diagram Set 25 (Electronic Engine Controls)

25-1:

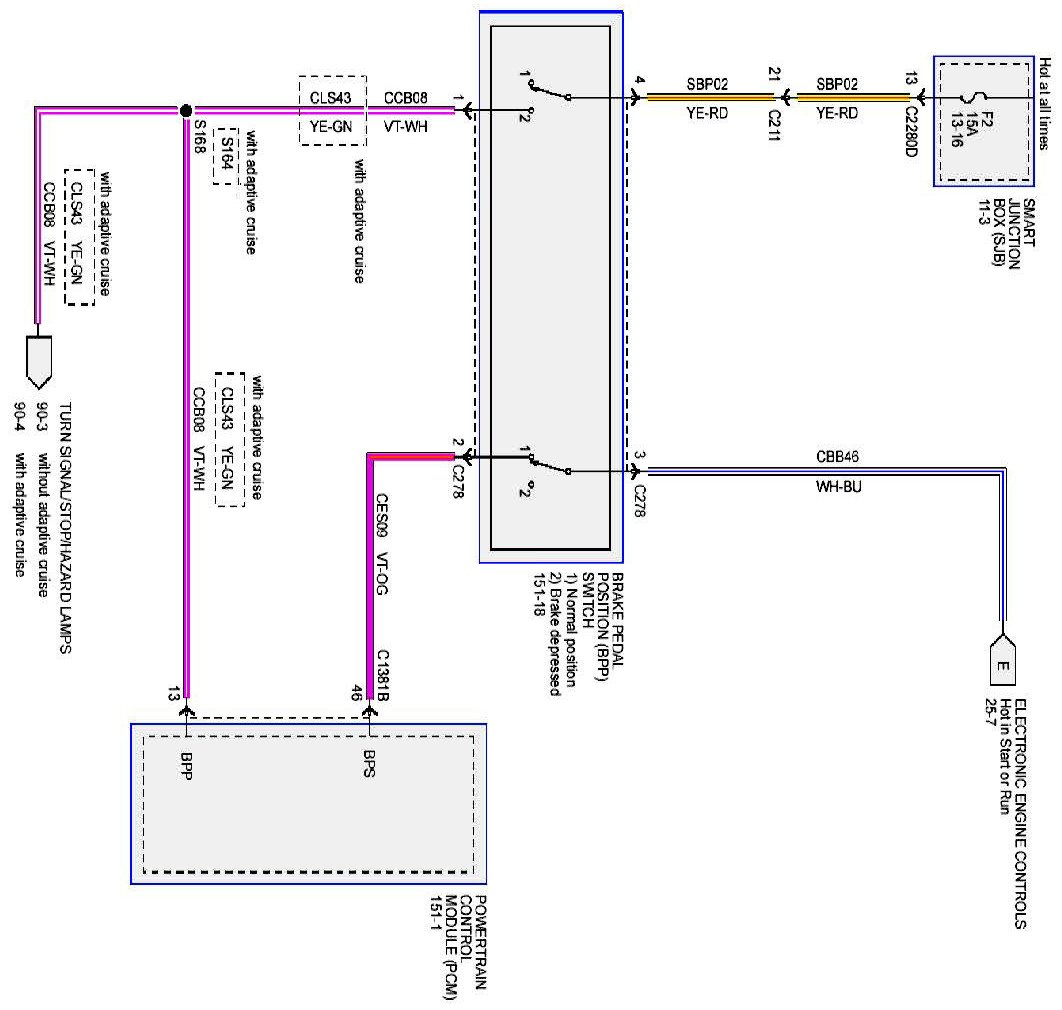

25-2:

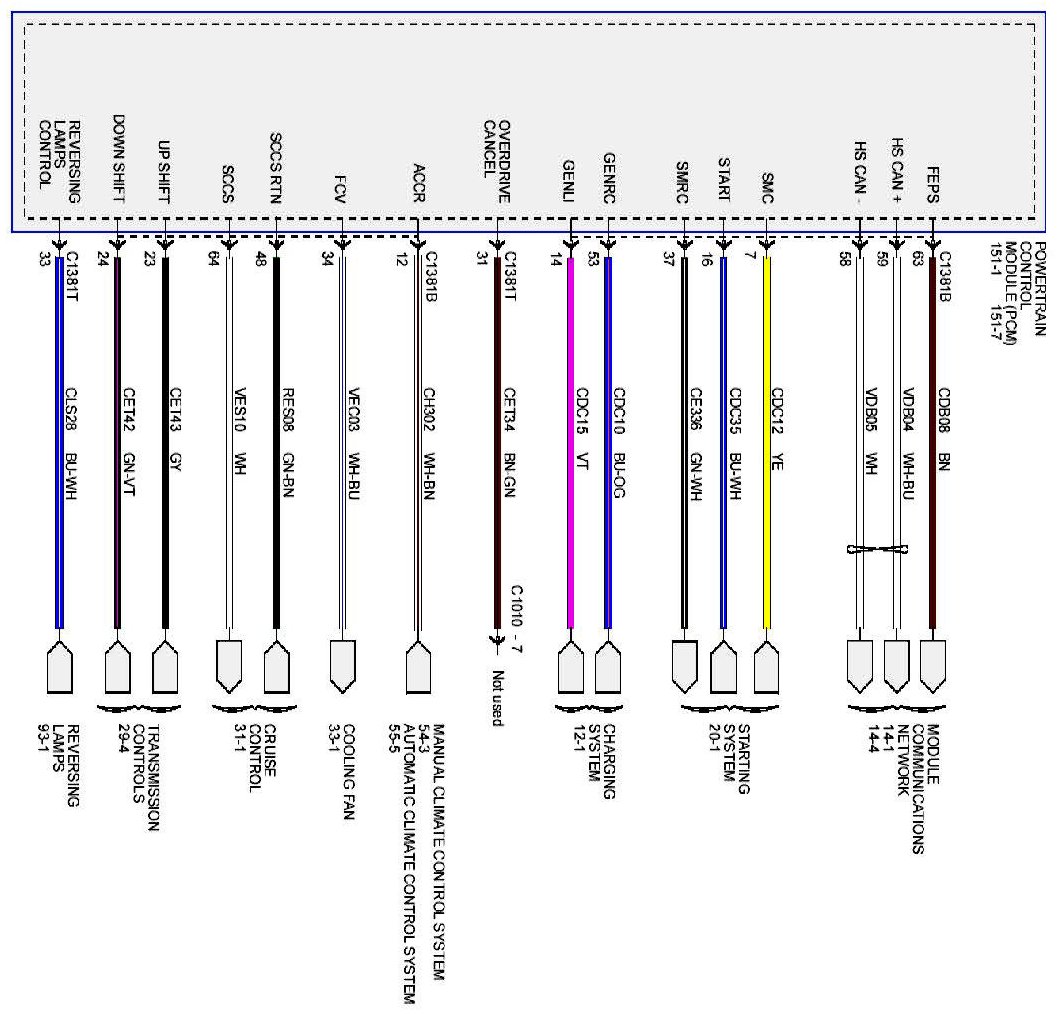

25-3:

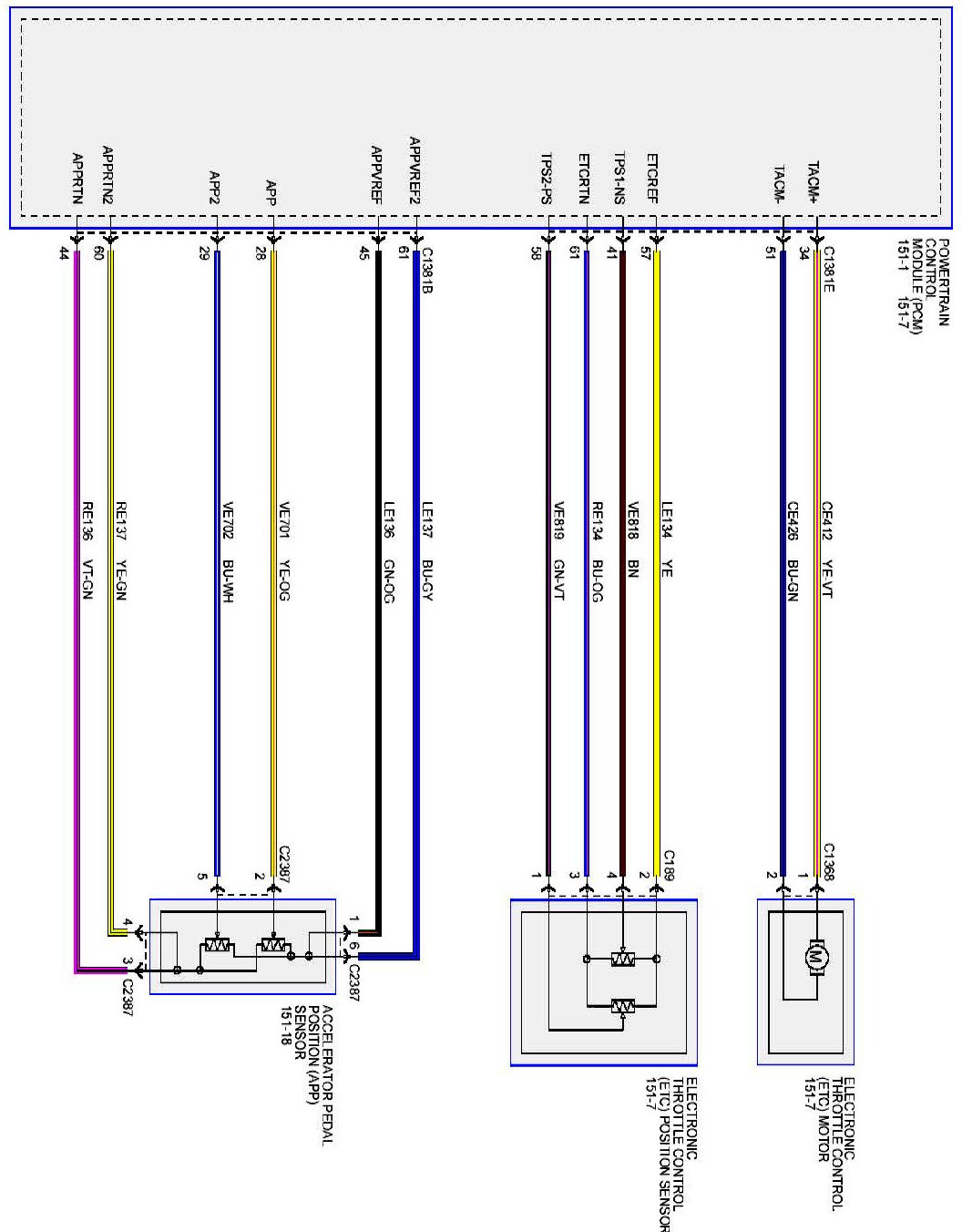

25-4:






25-5:






25-6:






25-7:






25-8:






25-9:






25-10:






25-11:






25-12:






25-13:






25-14:
