Home >> Ford >> 2010 >> Taurus AWD V6-3.5L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 14 (Module Communications Network)

Diagram Set 14 (Module Communications Network)

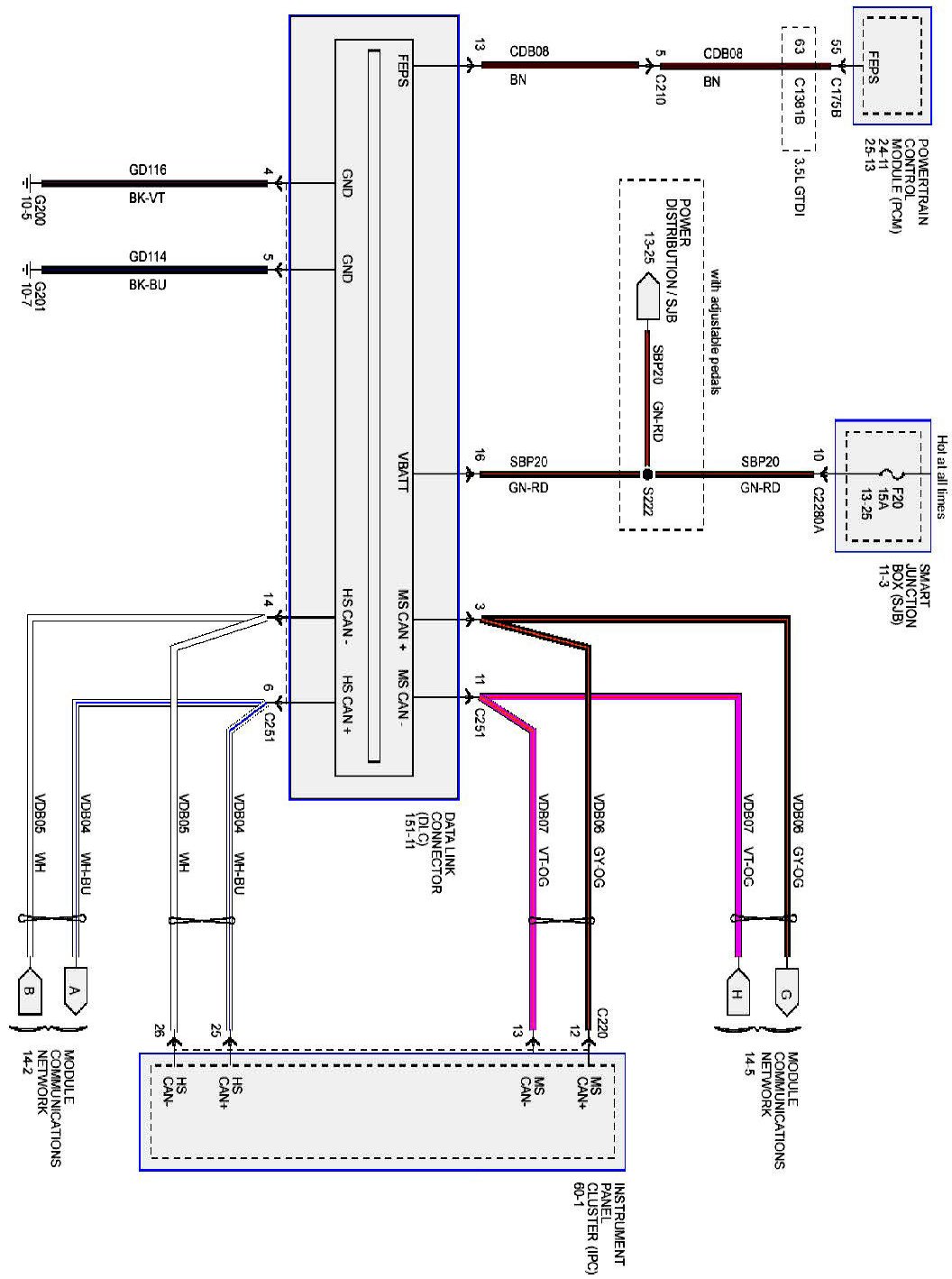

14-1:

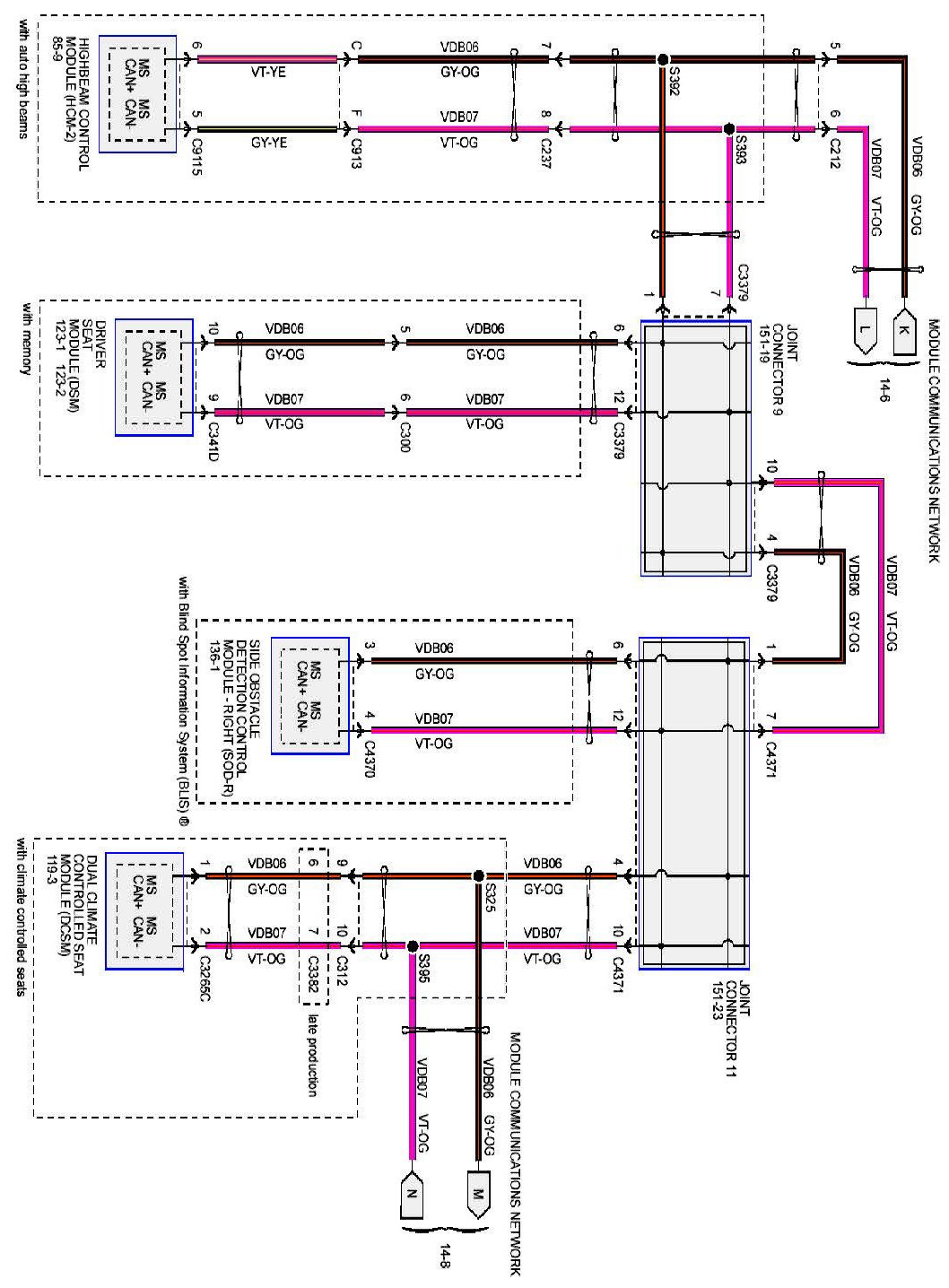

14-2:

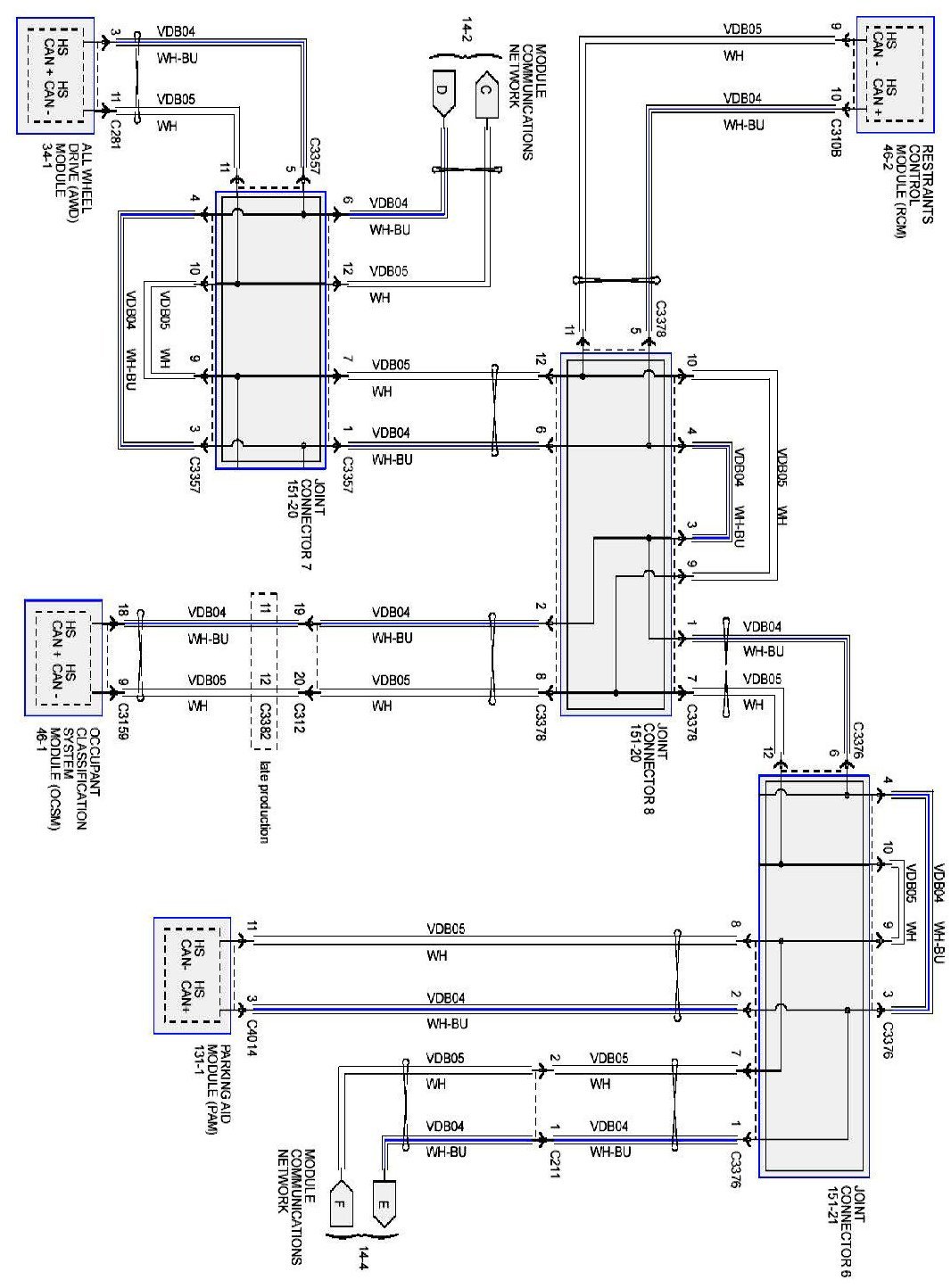

14-3:

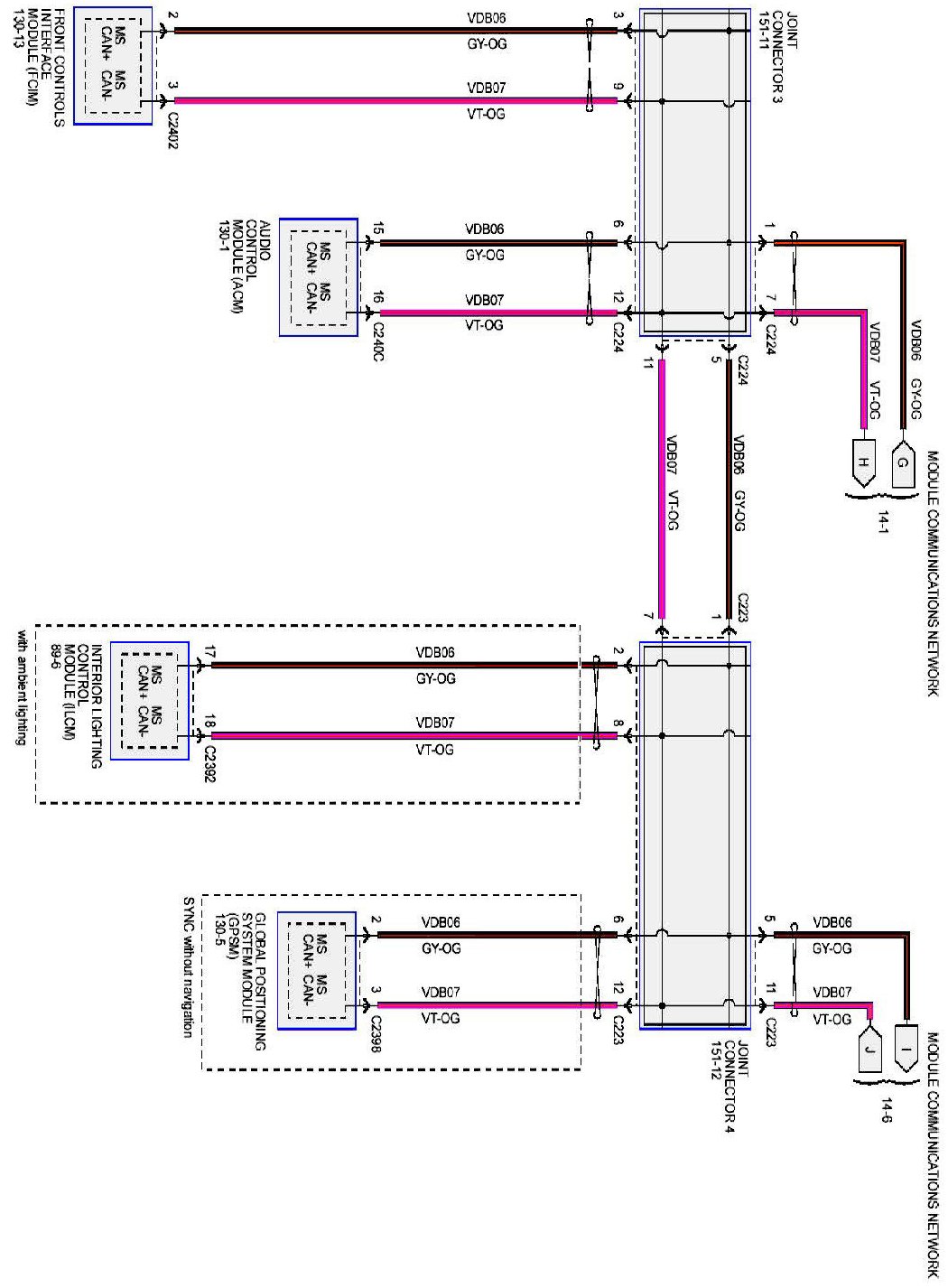

14-4:

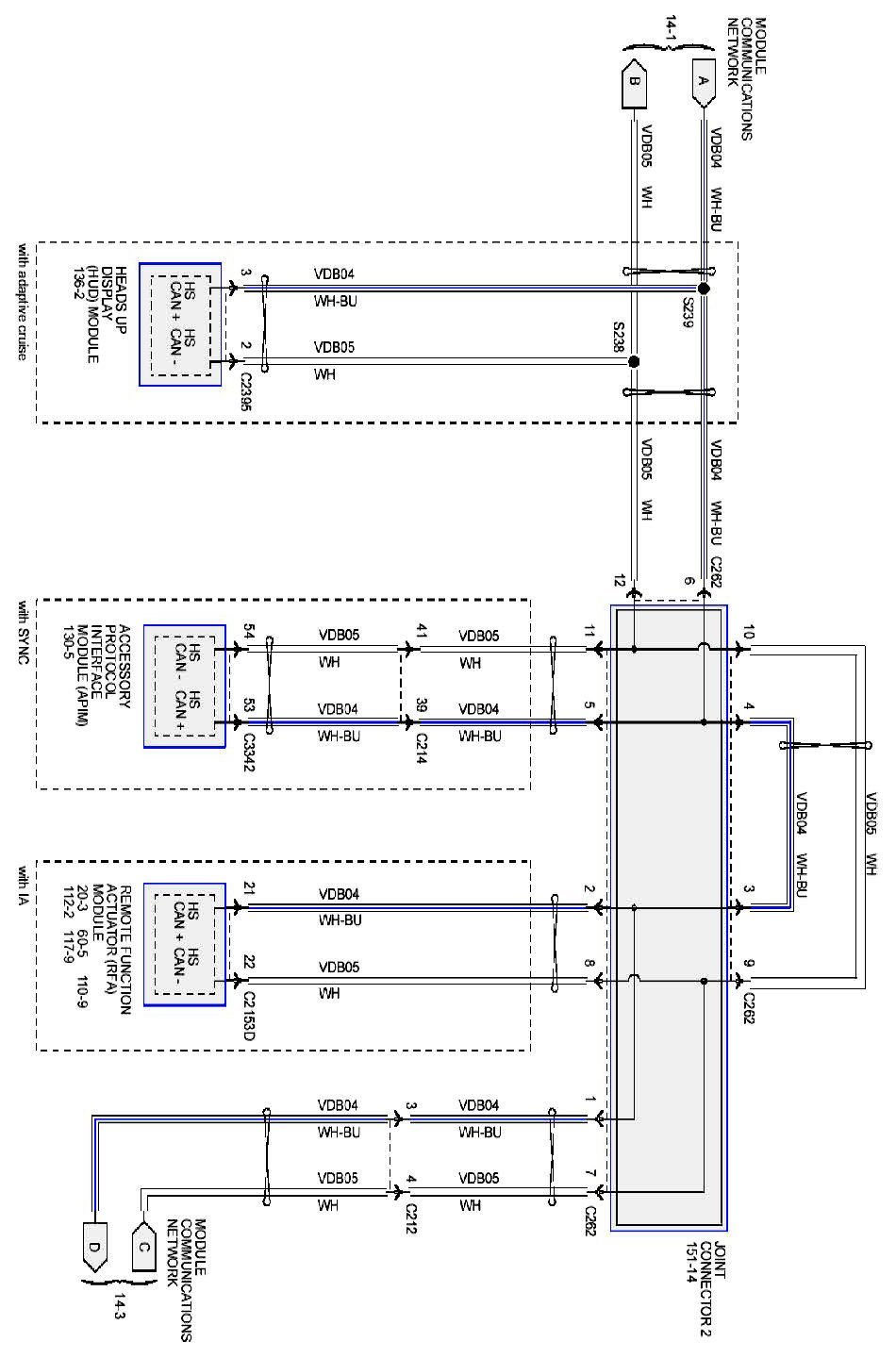

14-5:






14-6:






14-7:






14-8:
