Home >> Ford >> 2010 >> Taurus AWD V6-3.5L Turbo >> Repair and Diagnosis >> Diagrams >> Connectors

Connectors

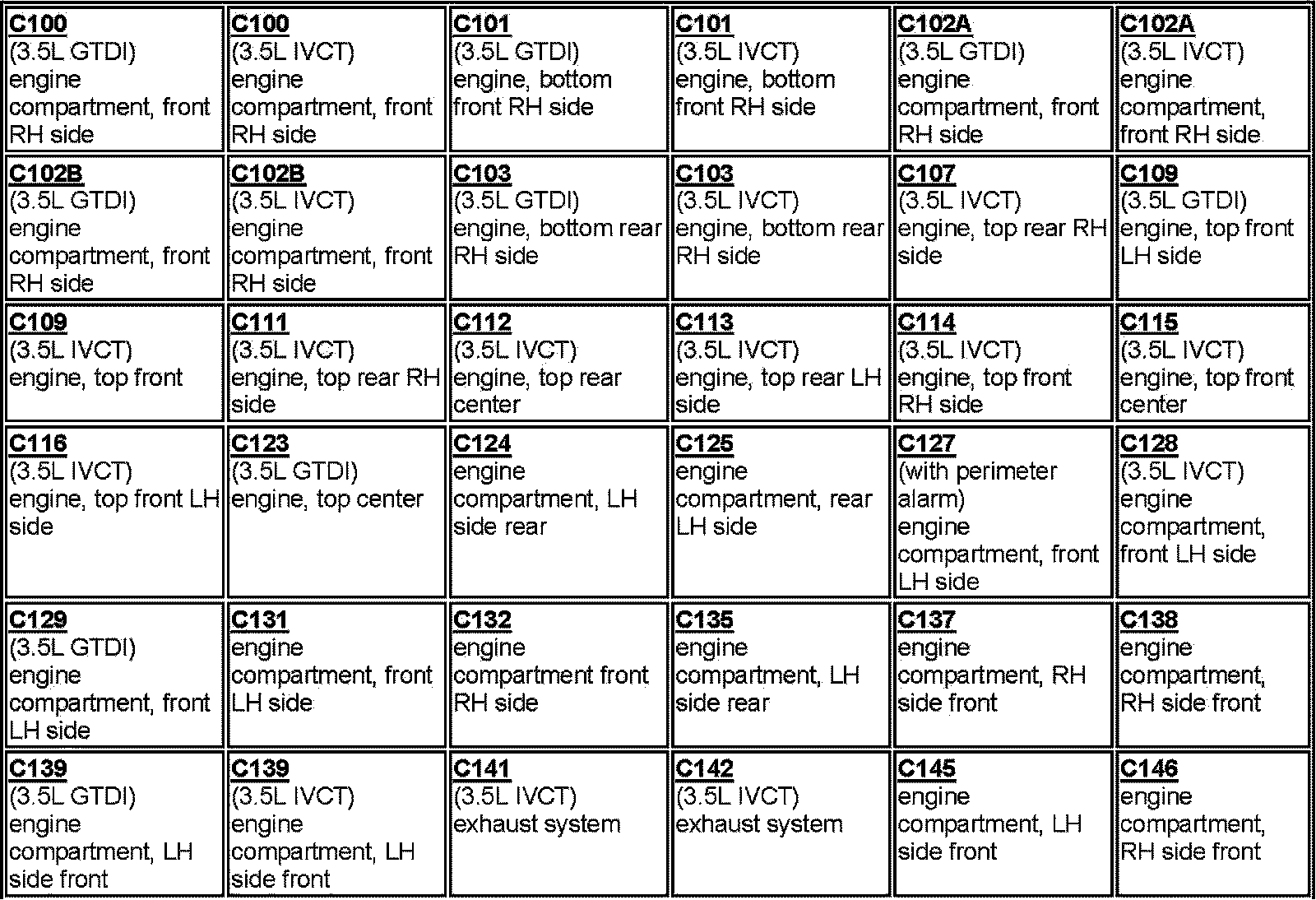

C100-C146:

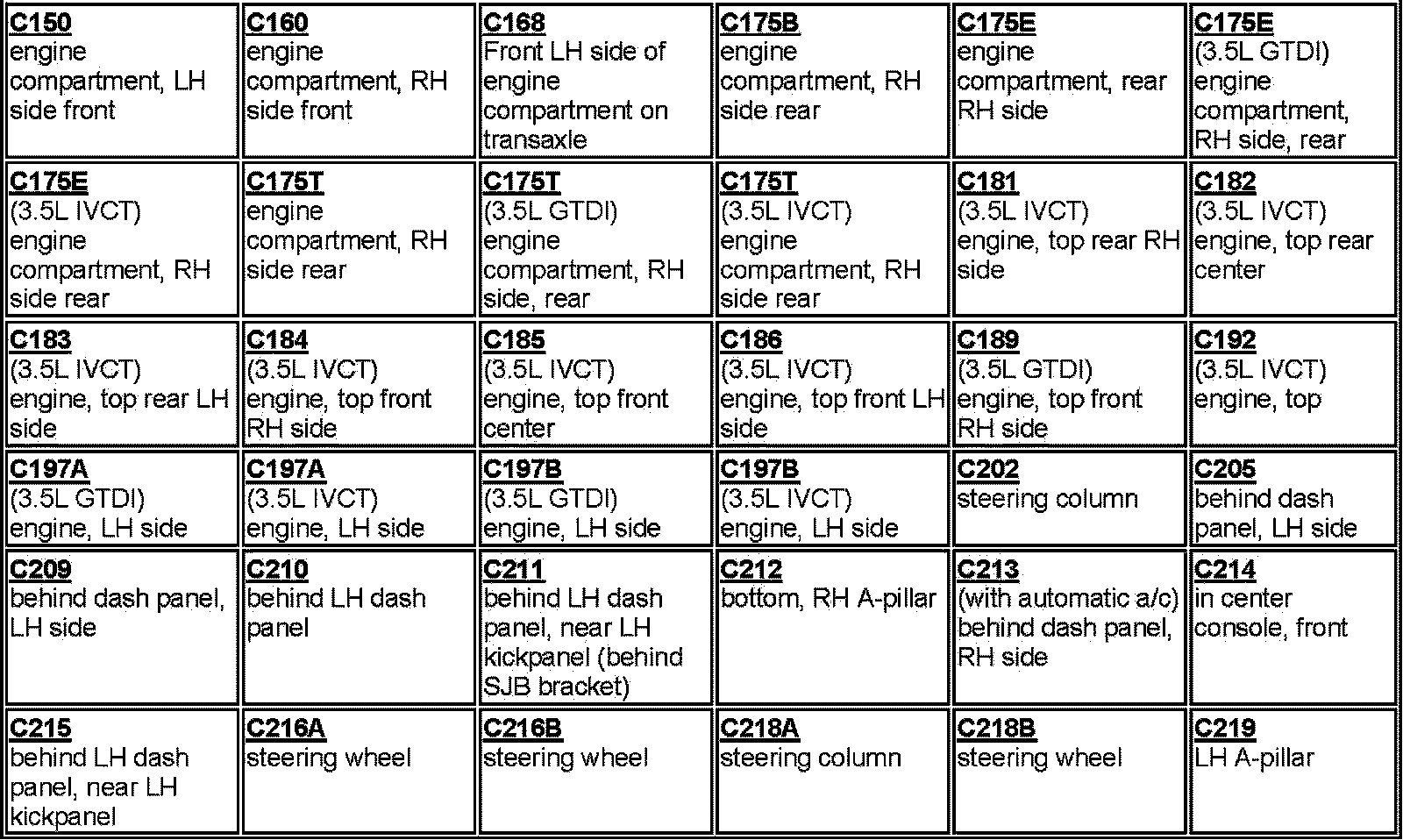

C150-C219:





C220-C325:

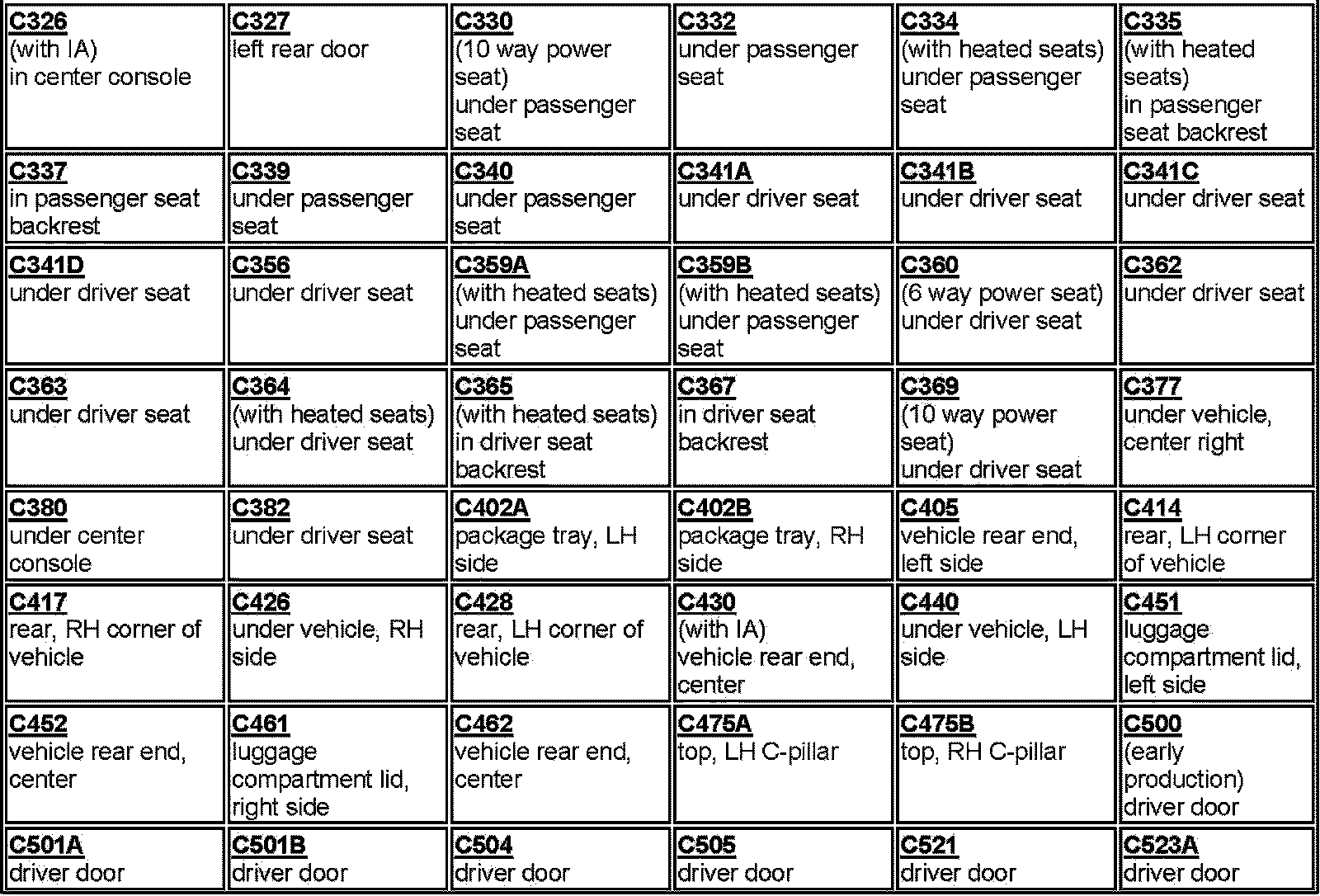

C326-C523A:





C523B-C963C:

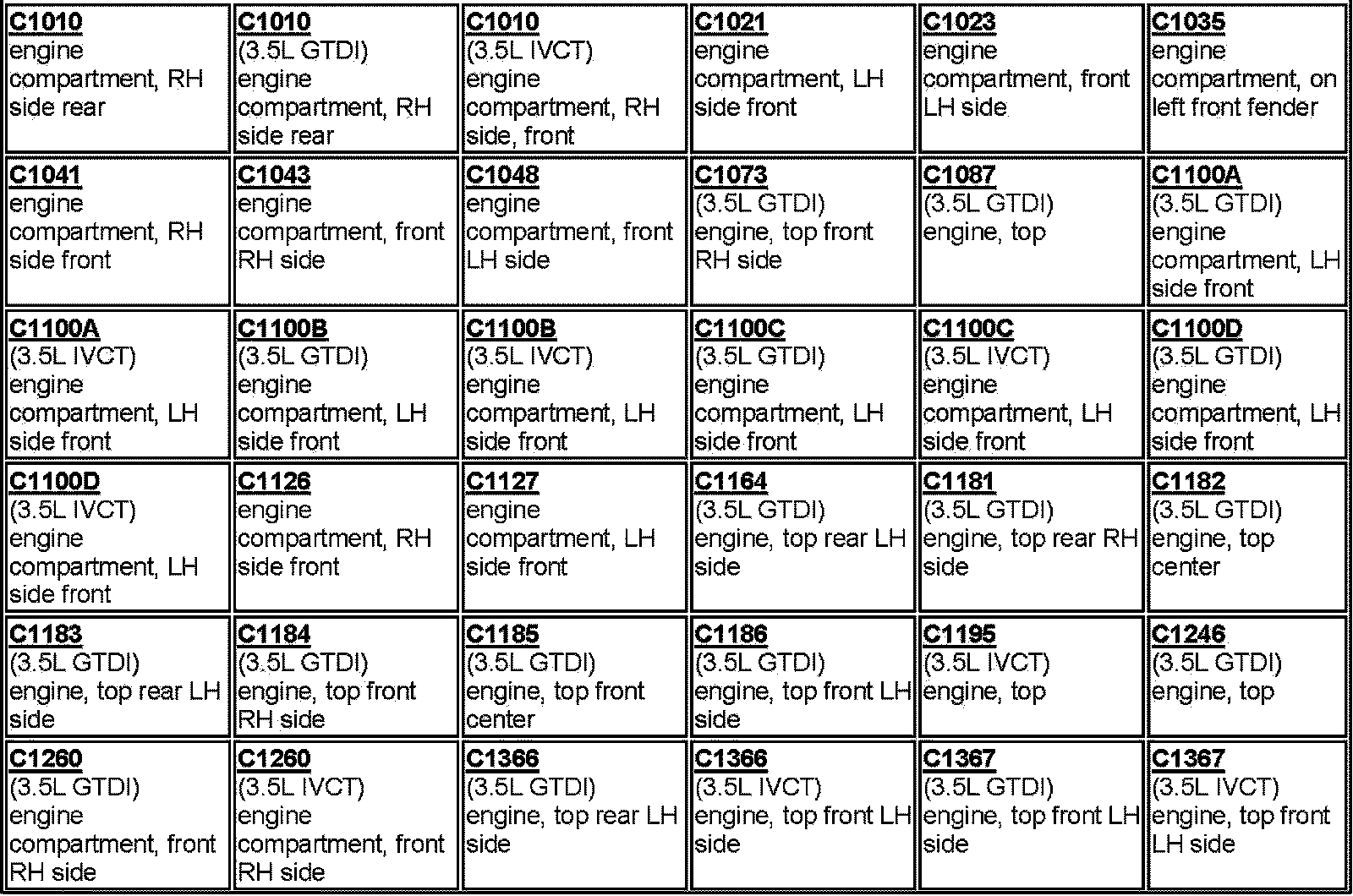

C1010-C1367:

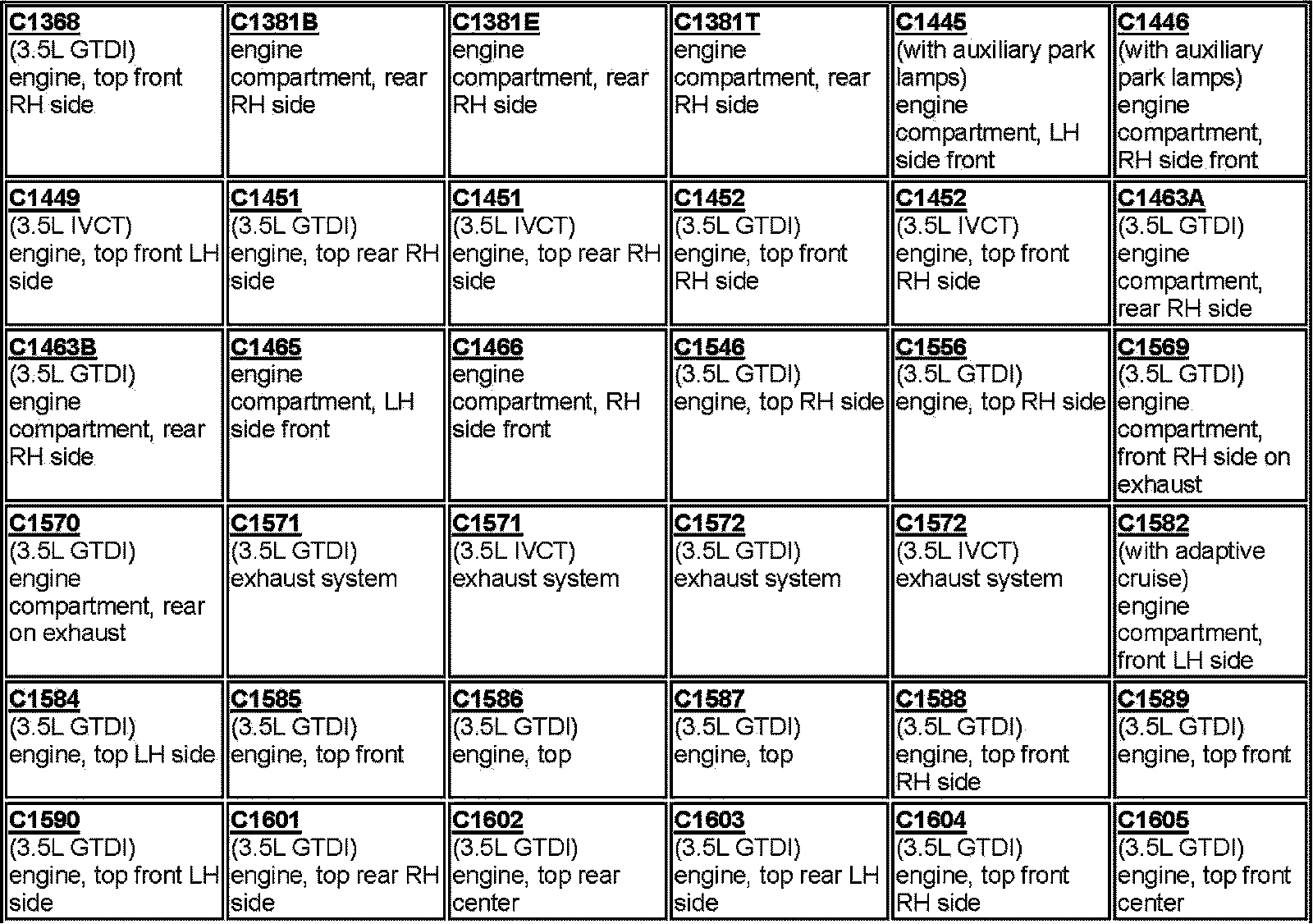

C1368-C1606:

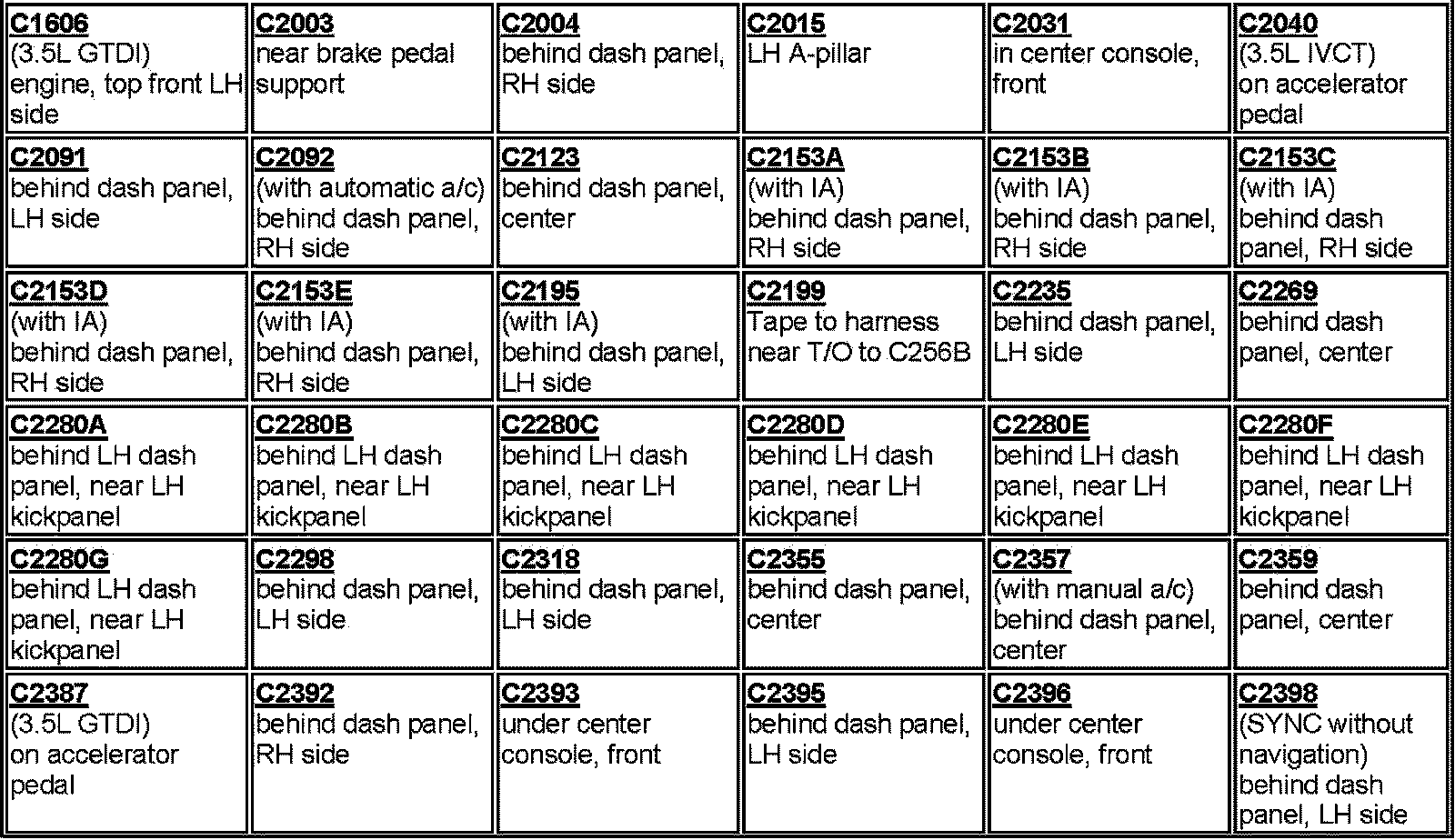

C1606-C2398:

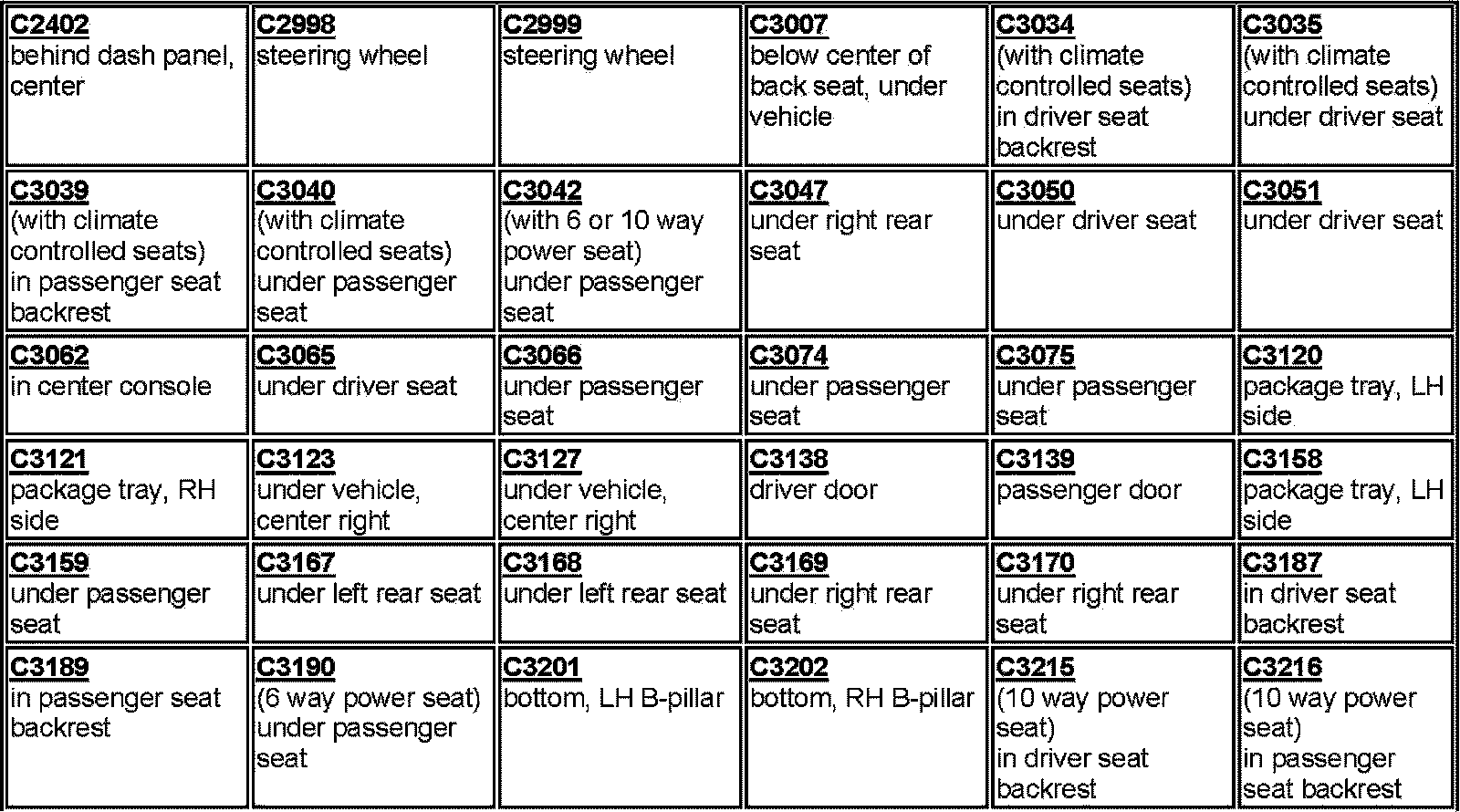

C2402-C3216:

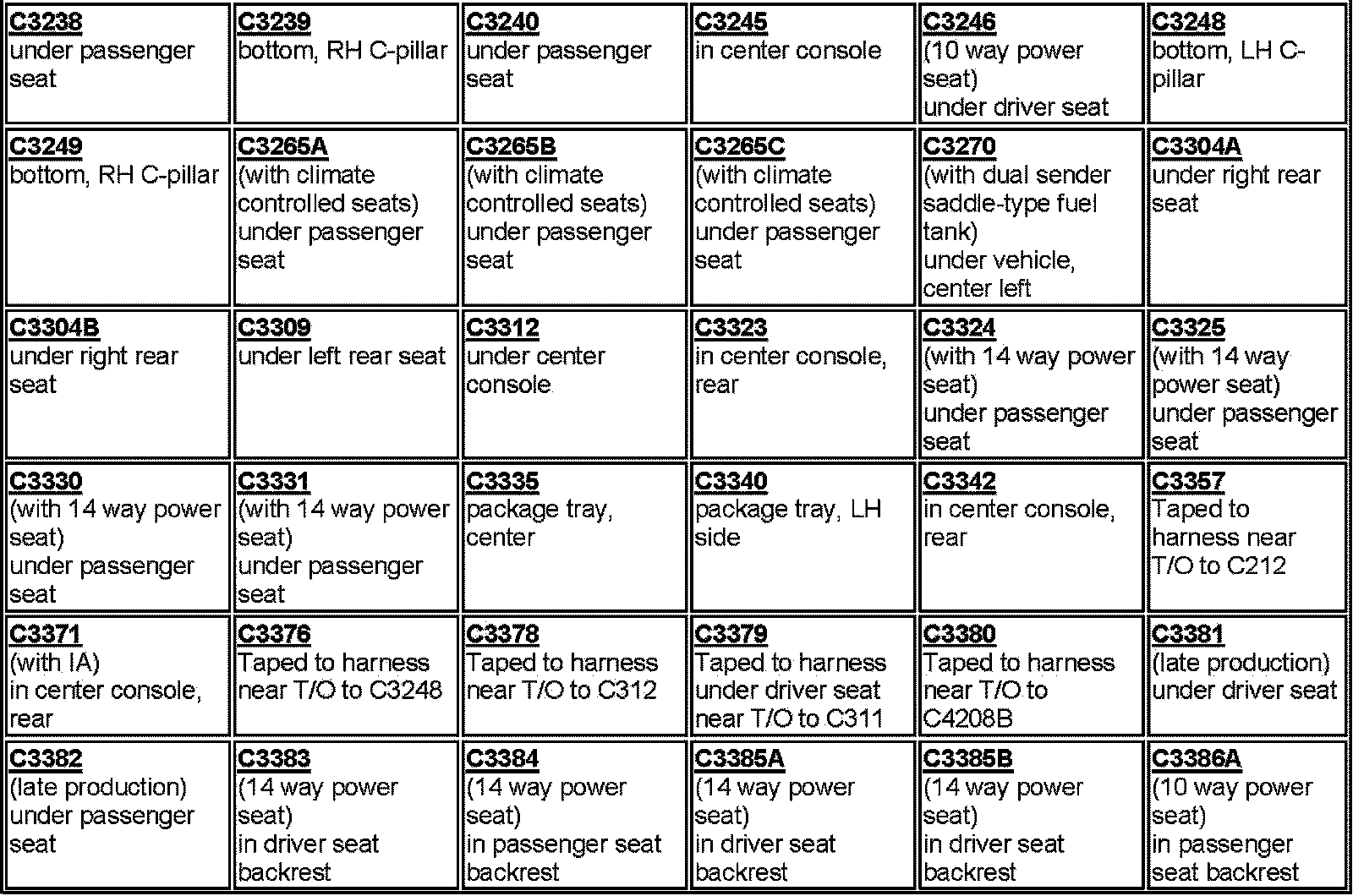

C3238-C3386A:

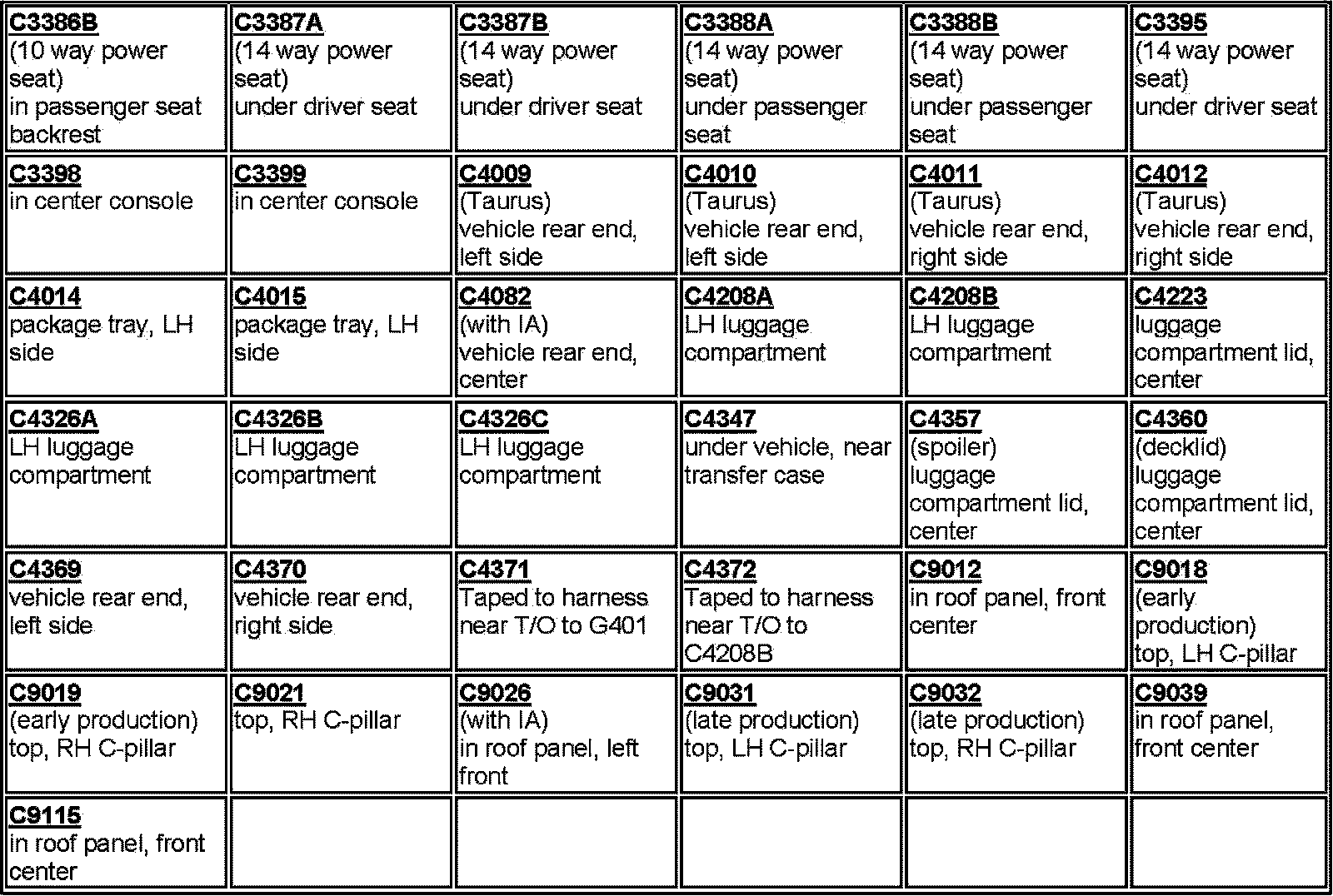

C3386B-C9115:
