Taurus AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>

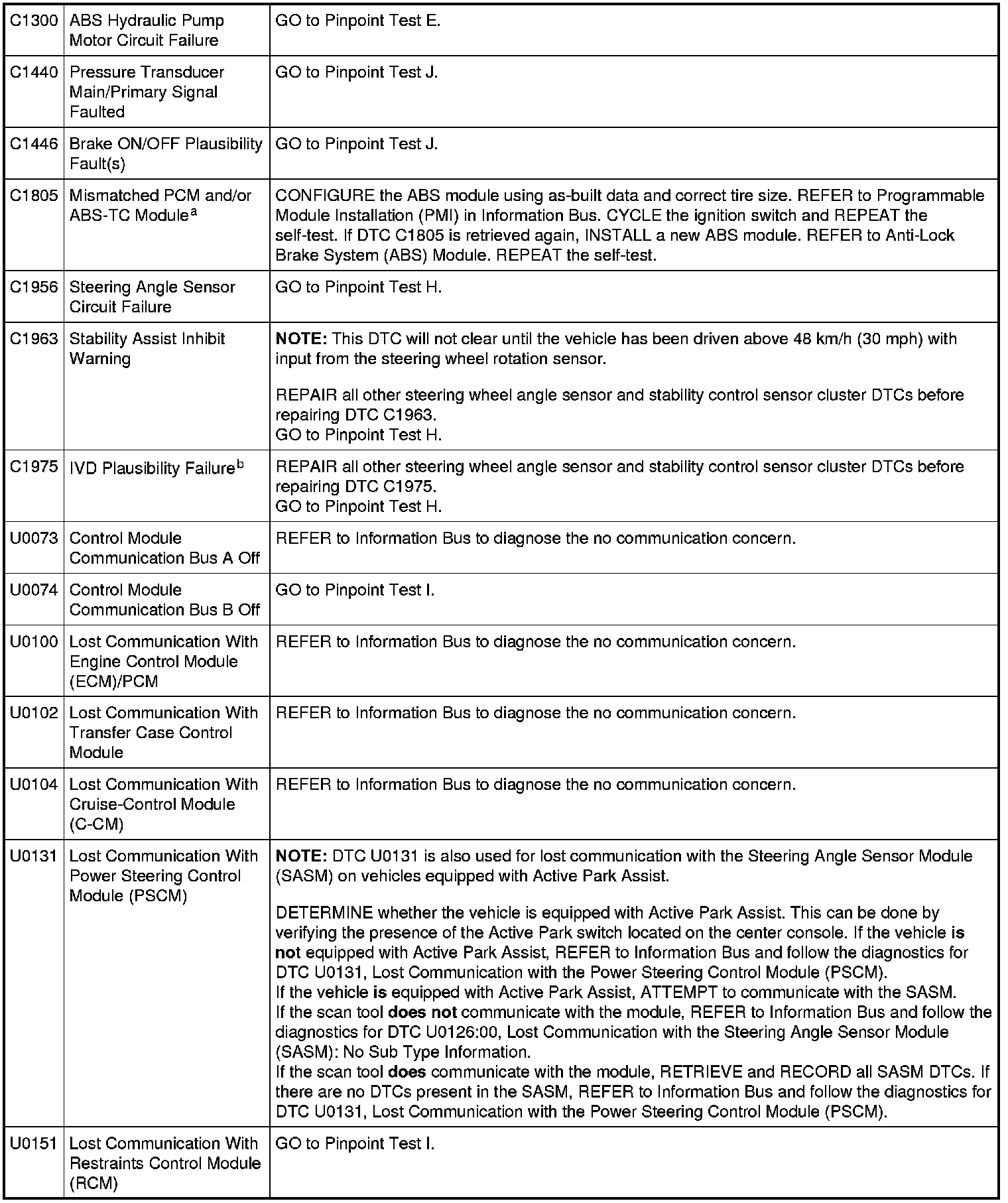

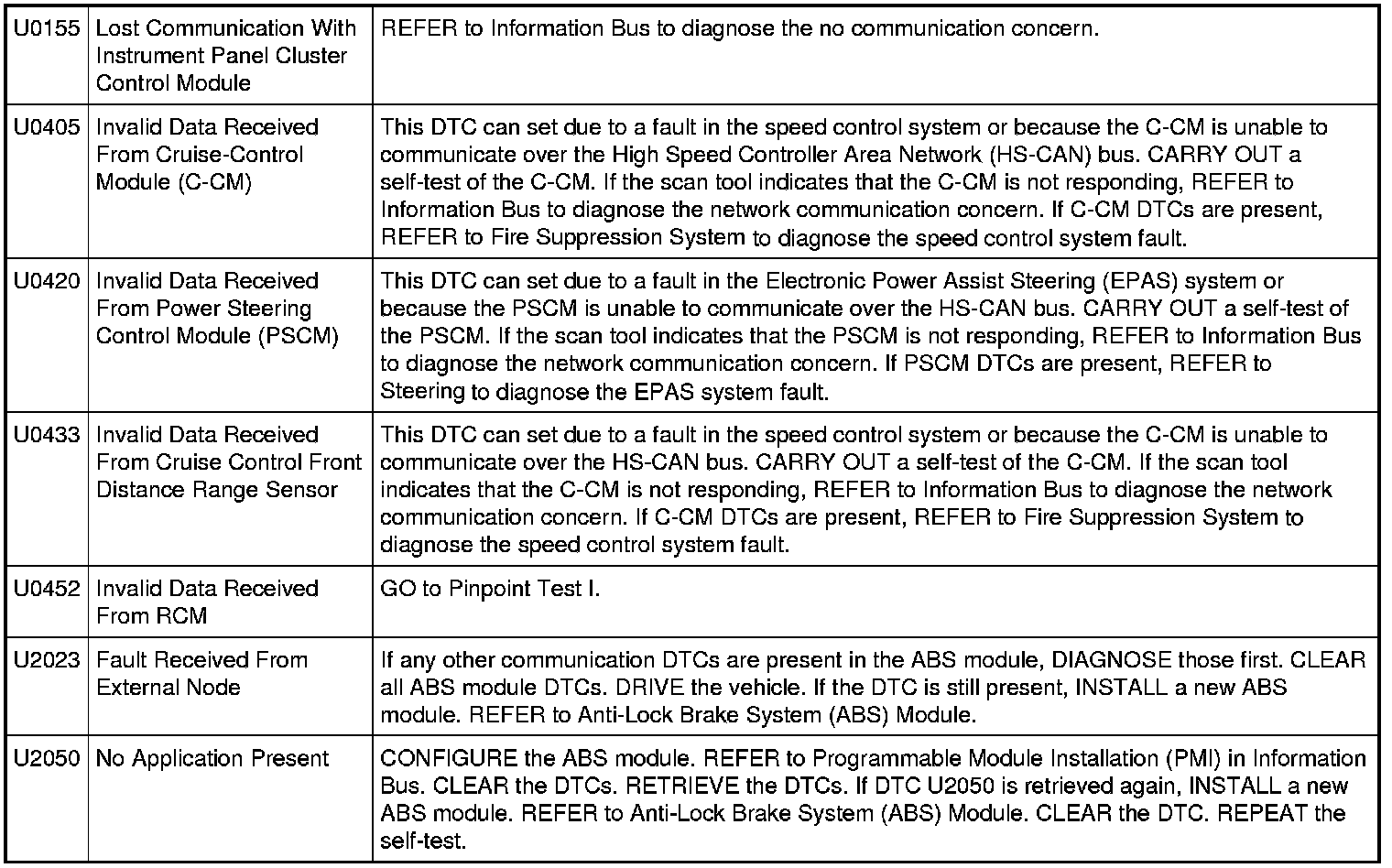

ABS Module DTC Chart
ABS Module DTC Chart
Anti-Lock Control
DTC Charts
ABS Module DTC Chart
a Traction Control
b Interactive Vehicle Dynamics
