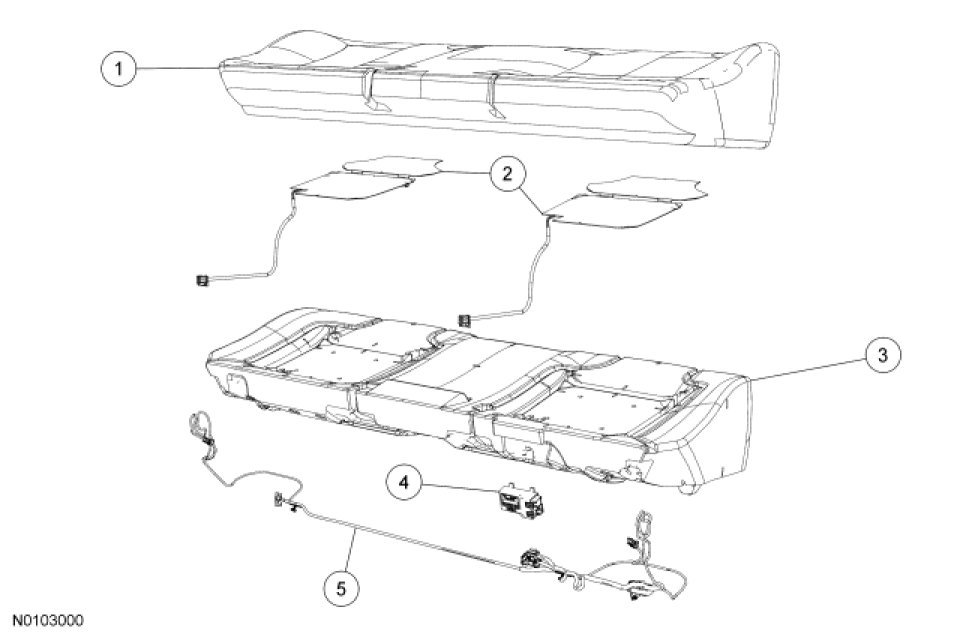

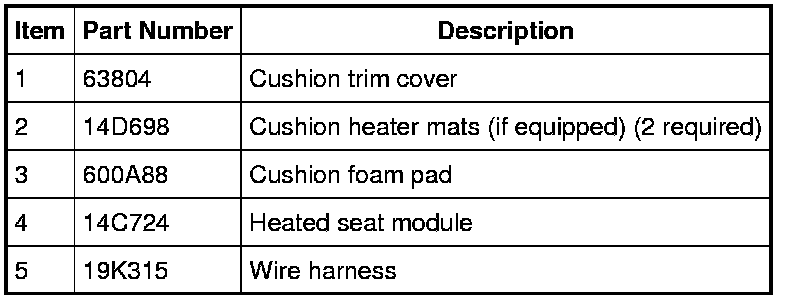

Seat - Exploded View, Second Row

Seat - Exploded View, Second Row

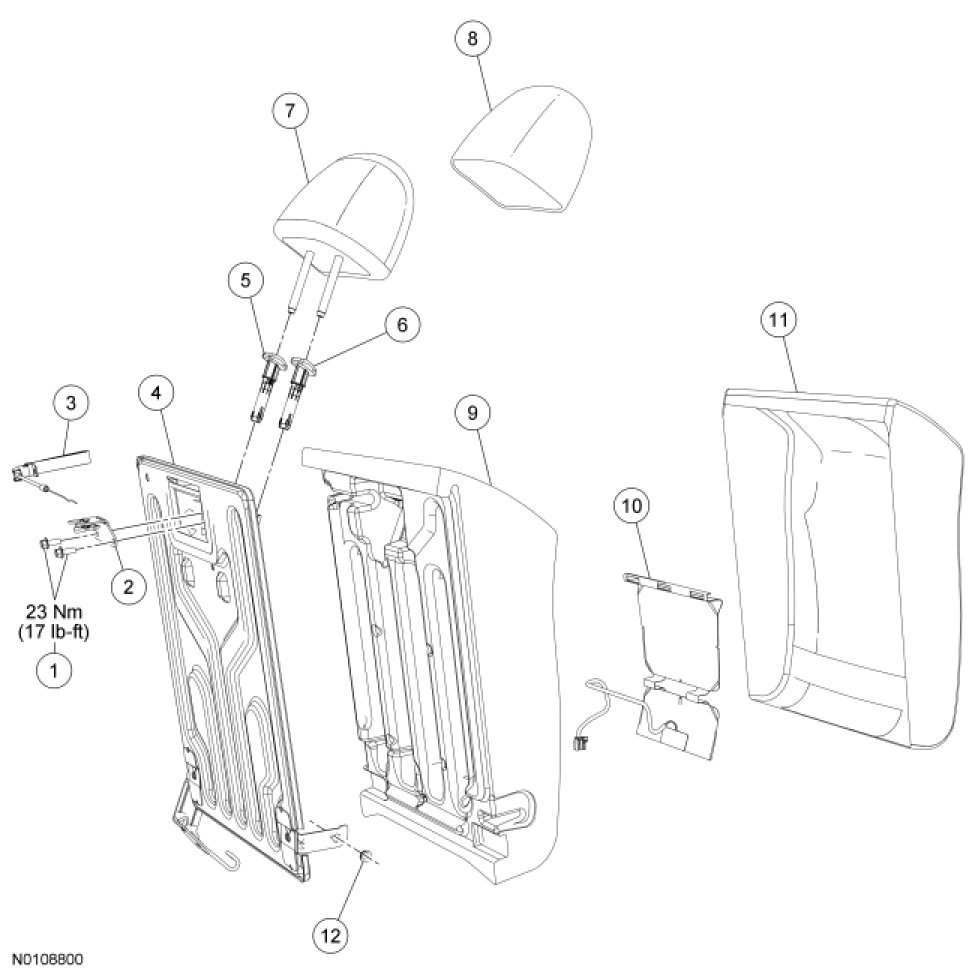

40 Percent Backrest

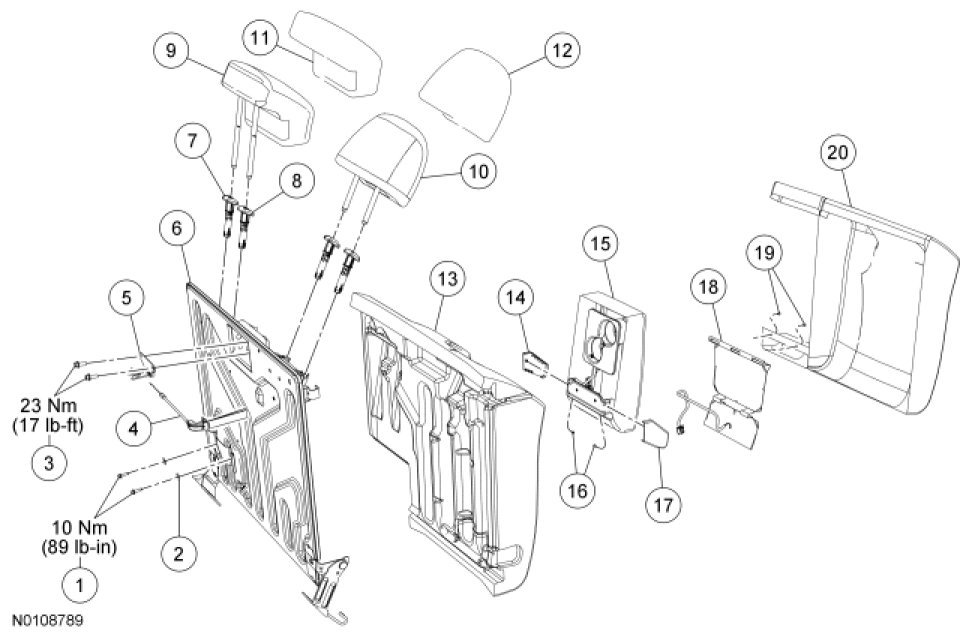

60 Percent Backrest
