Exterior Mirror Glass

Exterior Mirror Glass

Removal

1. Position the exterior mirror glass to the full upward and inward position.

2. WARNING: Place a shop towel between the hands and the exterior mirror glass for protection in case of glass breakage during mirror service. Failure to follow this instruction may result in serious personal injury.

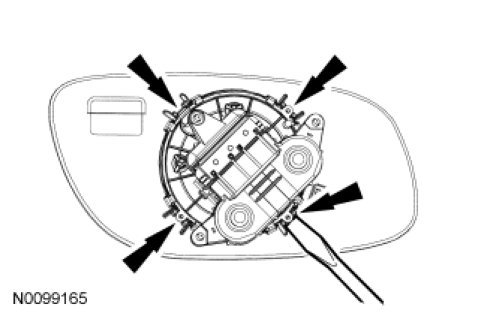

NOTE: LH mirror and motor removed from the housing and viewed from the back to show location of clips and placement of screwdriver.
Remove the exterior mirror glass using a screwdriver to release the tabs starting at the lower outboard side of mirror and continuing around the mirror until all 4 tabs are released.





3. Disconnect the electrical connectors.

Installation

1. Connect the electrical connectors.

2. WARNING: Place a shop towel between the hands and the exterior mirror glass for protection in case of glass breakage during mirror service. Failure to follow this instruction may result in serious personal injury.

NOTE: An audible click will be heard during installation.
Install the exterior mirror glass by pressing firmly in the center of the exterior glass until it snaps onto the exterior mirror motor.
