Hood Latch Release: Service and Repair

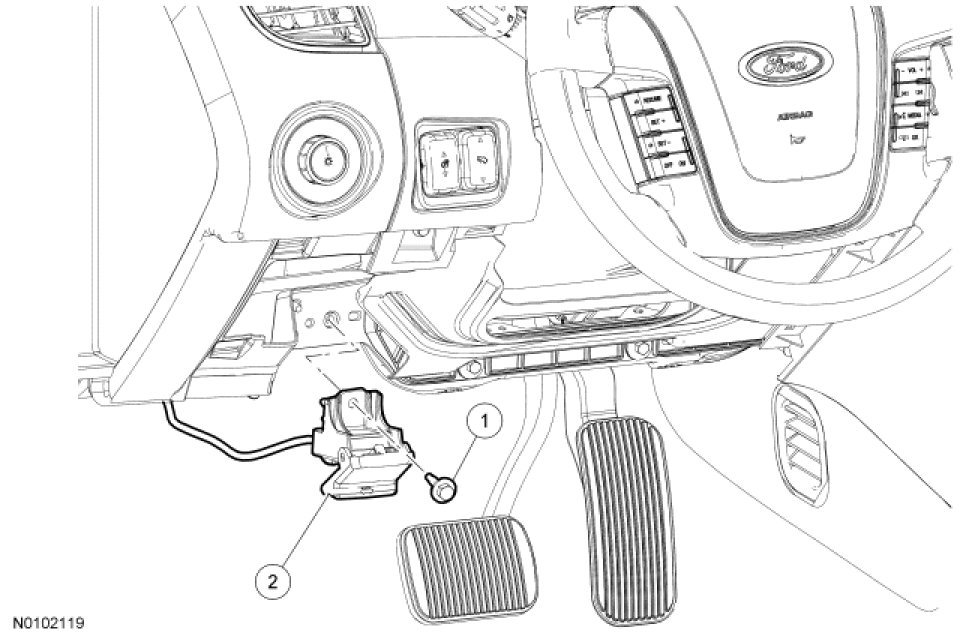

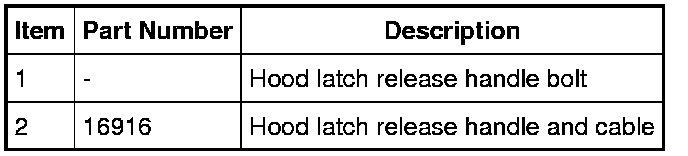

Hood Latch Release Handle

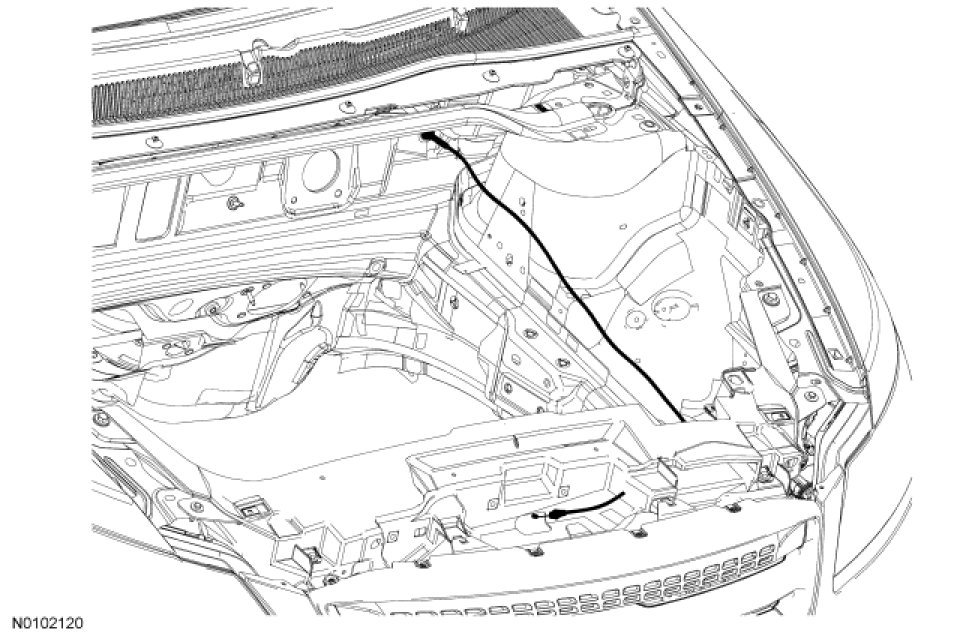

Hood Latch Release Cable Routing




Removal and Installation

1. Remove the hood latch. For additional information, refer to Hood Latch Service and Repair.

2. Remove the air cleaner. For additional information, refer to Fuel Delivery and Air Induction.

3. Remove the battery tray. For additional information, refer to Battery.

4. Release the hood latch release cable routing clips.

5. Remove the Smart Junction Box (SJB). For additional information, refer to Body Control Systems.

6. Remove the hood latch release handle bolt.

7. Release the hood latch release cable grommet from the dash panel.

8. Remove the hood latch release handle and cable assembly.

9. To install, reverse the removal procedure.
