Taurus AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>

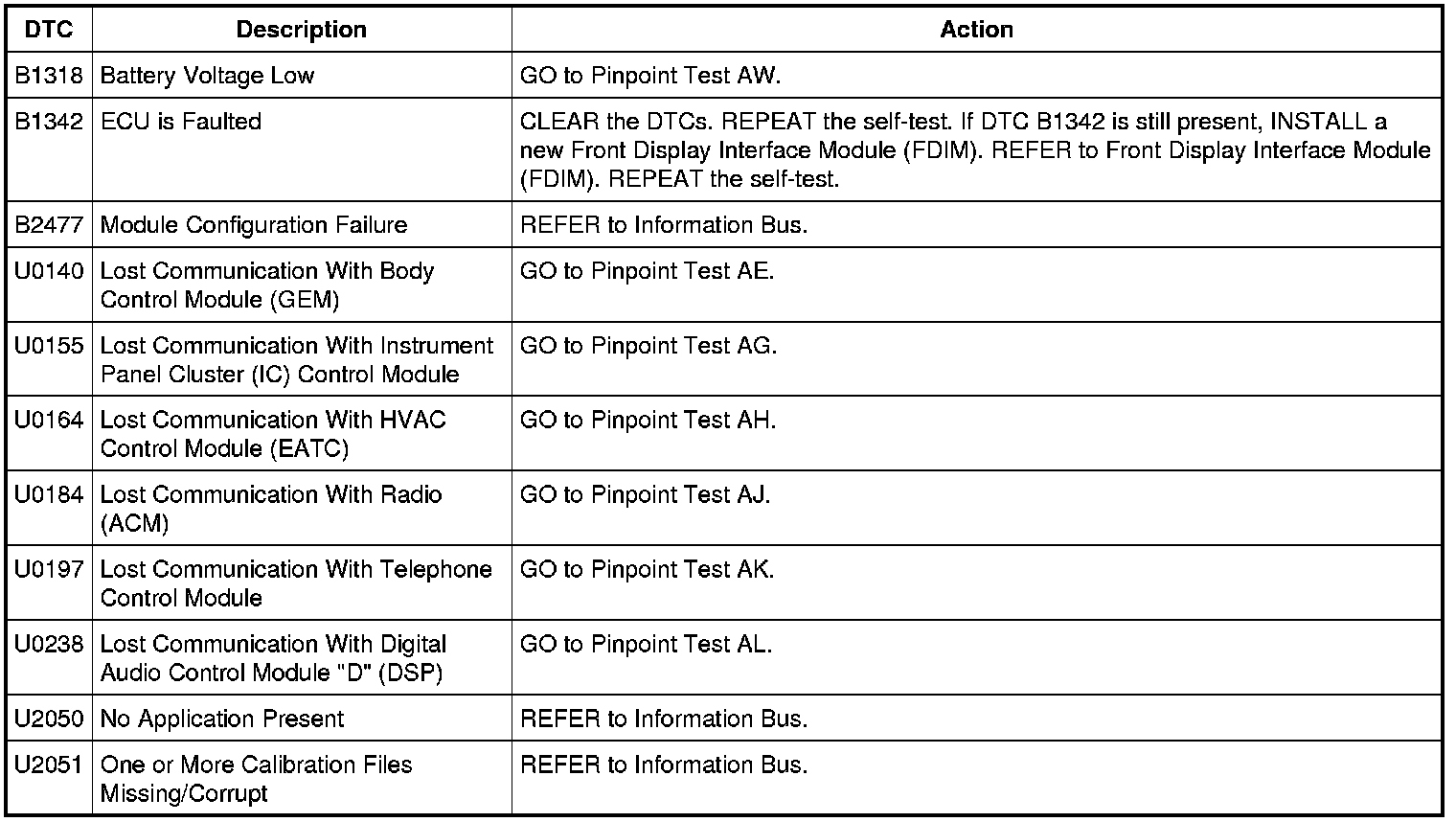

Front Display Interface Module (FDIM) DTC Chart - Without Navigation
Front Display Interface Module (FDIM) DTC Chart - Without Navigation
Information and Entertainment System
DTC Charts
Front Display Interface Module (FDIM) DTC Chart - Without Navigation
