TR3650

Transmission Rear Support Insulator

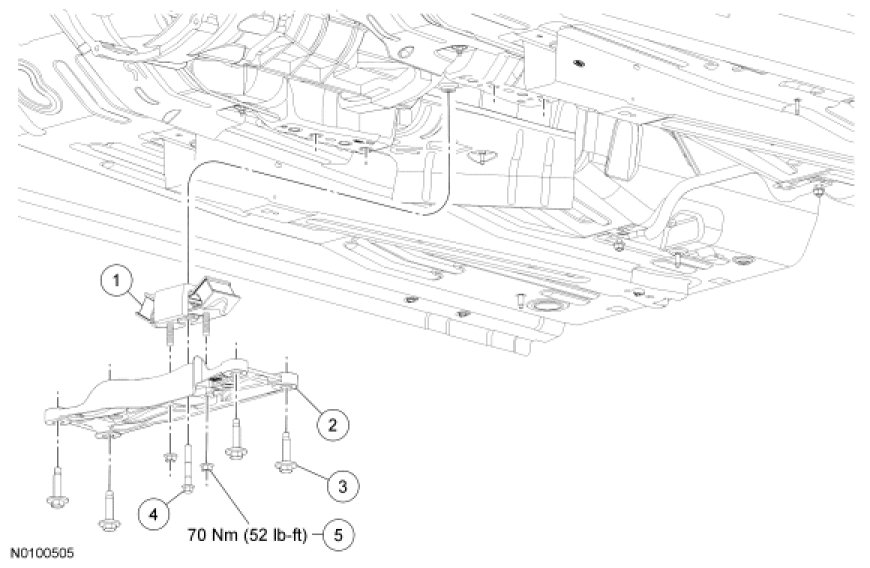

Transmission Rear Support Insulator Exploded View









1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Loosen the 2 transmission rear support insulator nuts.





3. Remove the transmission crossmember. For additional information, refer to Frame.

4. Remove the 2 transmission rear support insulator nuts. Separate the transmission rear support insulator from the transmission mount.
- To install, tighten to 70 Nm (52 lb-ft).

5. To install, reverse the removal procedure.
