Home >> Ford >> 2010 >> Mustang V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> 5R55S >> Diagnostic Routines >> Shift Concerns: 210 - 275 >> 225, No 2-1 Shift

225, No 2-1 Shift




Diagnostic Routines

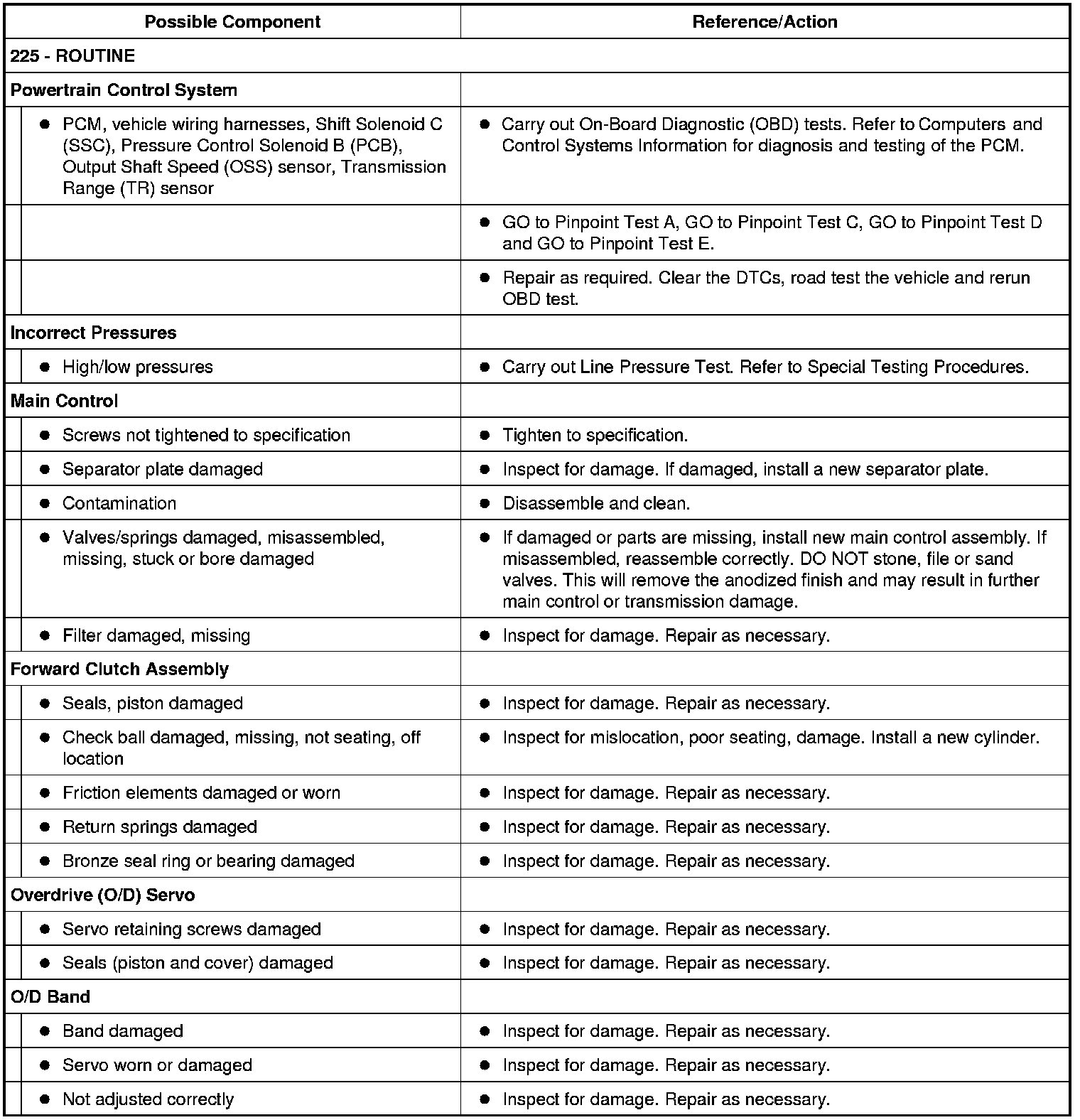

Shift Concern: No 2-1 Shift
