5R55S
>>
Diagnostic Routines
>>
Shift Concerns: 210 - 275
>>
215, No 1st and 2nd Gear In Drive, Engages In A Higher Gear
215, No 1st and 2nd Gear In Drive, Engages In A Higher Gear
Diagnostic Routines

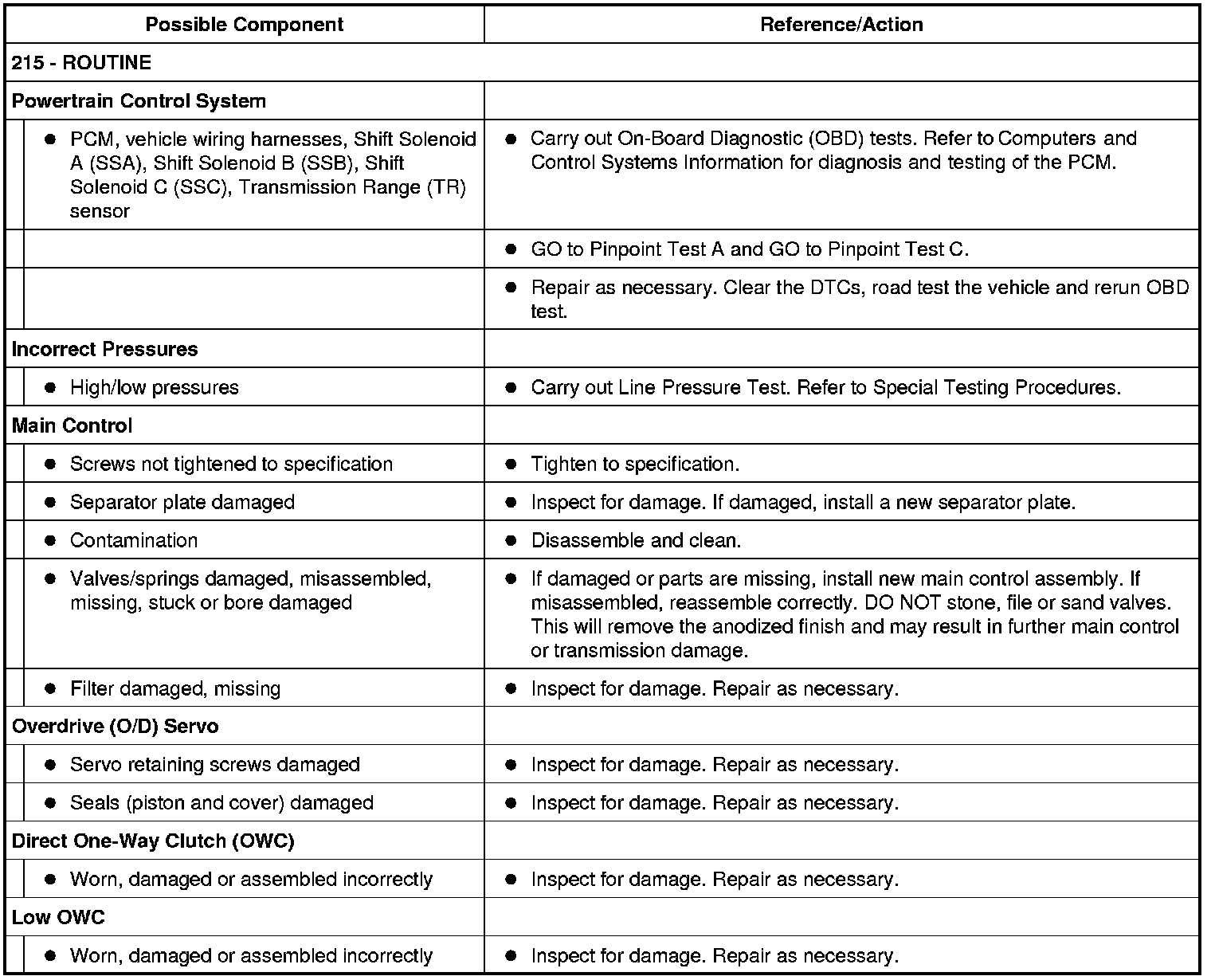

Shift Concern: No 1st and 2nd Gear in Drive, Engages in a Higher Gear
