5R55S
>>
Diagnostic Routines
>>
Other Concern: 251 - 285
>>

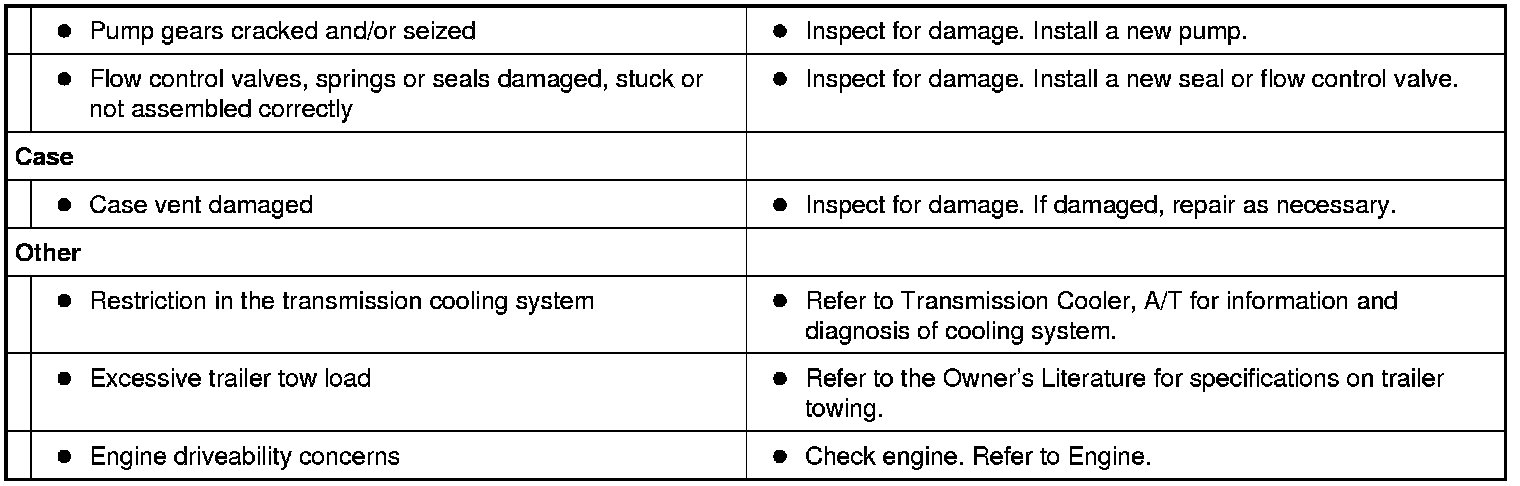

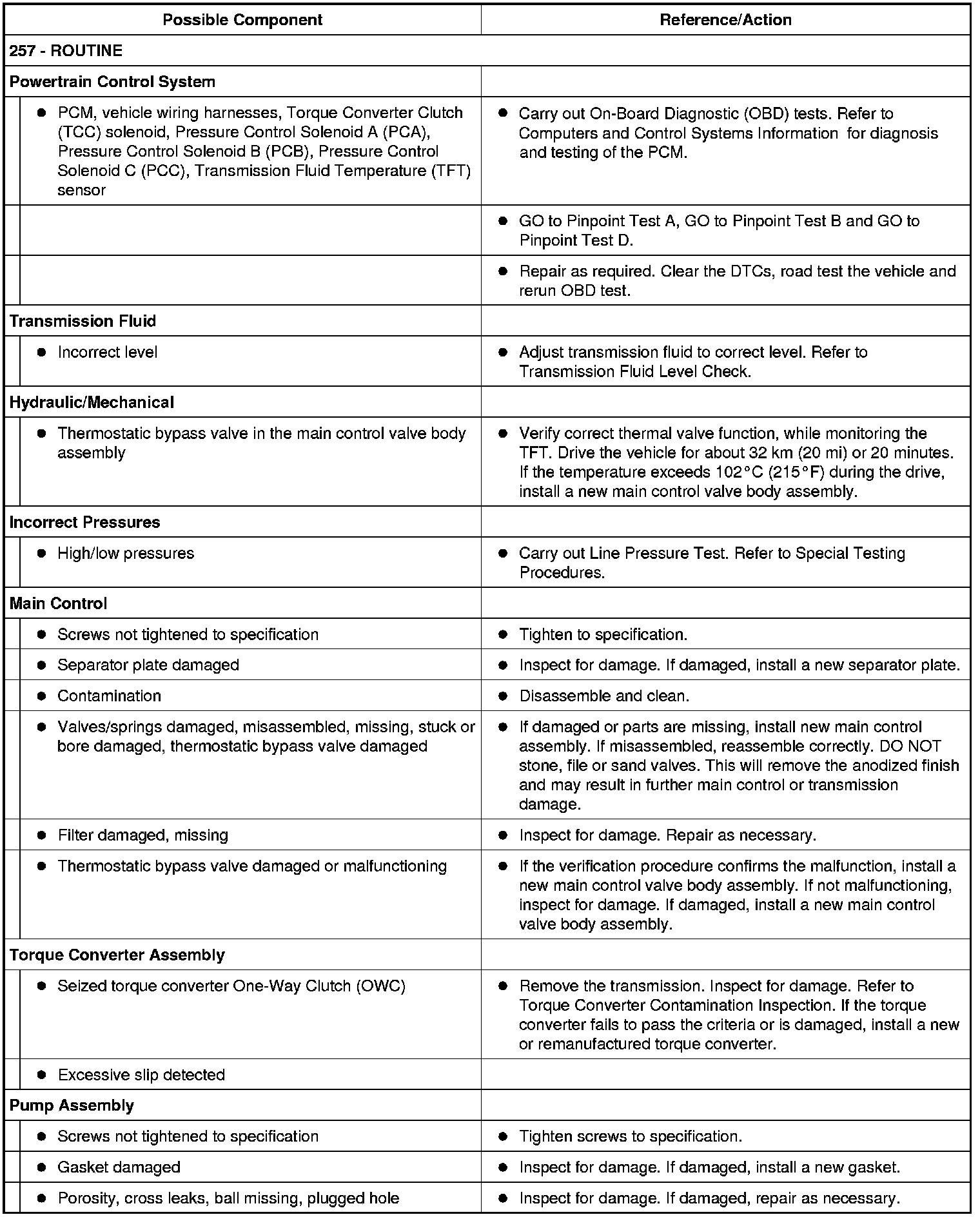

257, Transmission Overheating
257, Transmission Overheating
Diagnostic Routines
Other Concern: Transmission Overheating
