PINPOINT TEST C: THE TCS IS INOPERATIVE

-------------------------------------------------
C1 CHECK THE VOLTAGE TO THE TCS


- Ignition OFF.
- Disconnect: Selector Lever C307.
- Ignition ON.

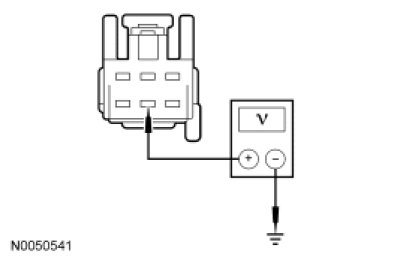

- Measure the voltage between transmission selector lever C307-5, circuit CBB48 (GY/YE), harness side and ground.




- Is the voltage greater than 10 volts?

Yes
GO to C2.

No
REPAIR circuit CBB48 (GY/YE). TEST the system for normal operation.

-------------------------------------------------
C2 CHECK THE TCS

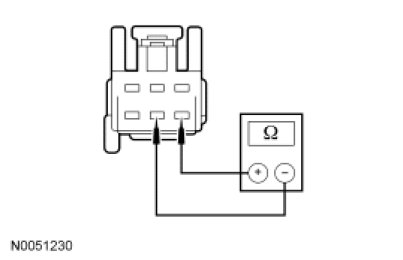

- Measure the resistance between selector lever C307-5 and C307-6, component side, while applying and releasing the Transmission Control Switch (TCS).




- Is the resistance less than 5 ohms with the TCS applied and greater than 10,000 ohms with the TCS released?

Yes
GO to C3.

No
INSTALL a new selector lever knob. TEST the system for normal operation.

-------------------------------------------------
C3 CHECK CIRCUIT CET34 (BN/GN) FOR AN OPEN


- Ignition OFF.
- Disconnect: PCM C175B.

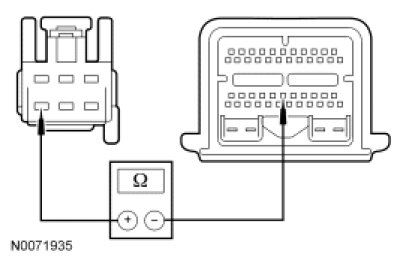

- Measure the resistance between selector lever C307-6, circuit CET34 (BN/GN), harness side and PCM C175B-29, circuit CET34 (BN/GN), harness side.




- Is the resistance less than 5 ohms?

Yes
GO to C4.

No
REPAIR circuit CET34 (BN/GN) for an open. TEST the system for normal operation.

-------------------------------------------------
C4 CHECK CIRCUIT CET34 (BN/GN) FOR A SHORT TO GROUND

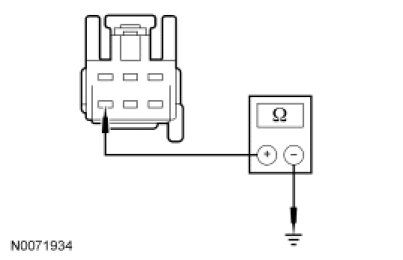

- Measure the resistance between selector lever C307-6, circuit CET34 (BN/GN), harness side and ground.




- Is the resistance greater than 10,000 ohms?

Yes
INSTALL a new PCM. REFER to Computers and Control Systems. TEST the system for normal operation.

No
REPAIR circuit CET34 (BN/GN) for a short to ground. TEST the system for normal operation.

-------------------------------------------------
