Transmission Support Insulator

Transmission Support Insulator

Transmission Support Insulator

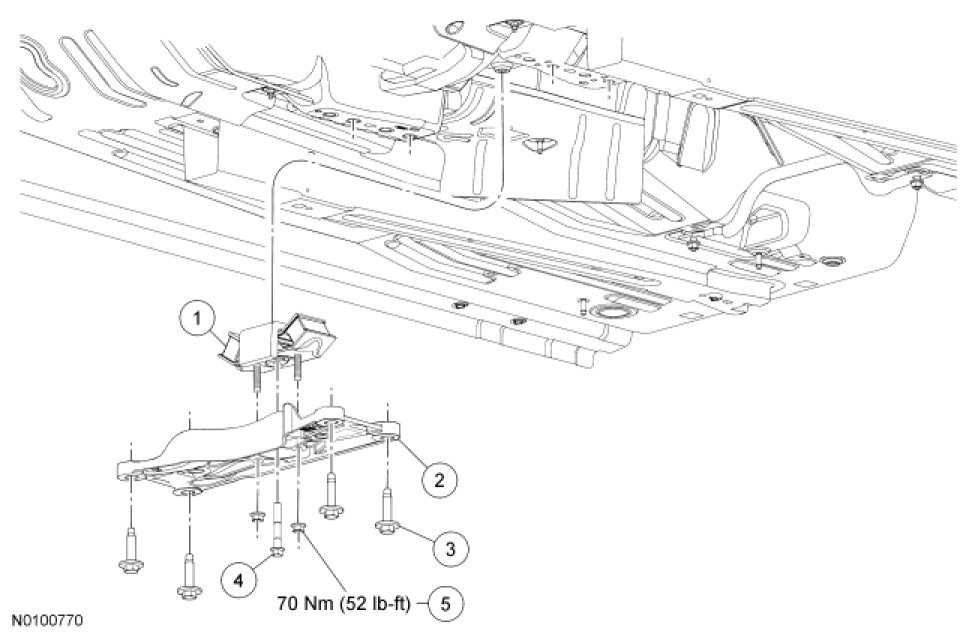

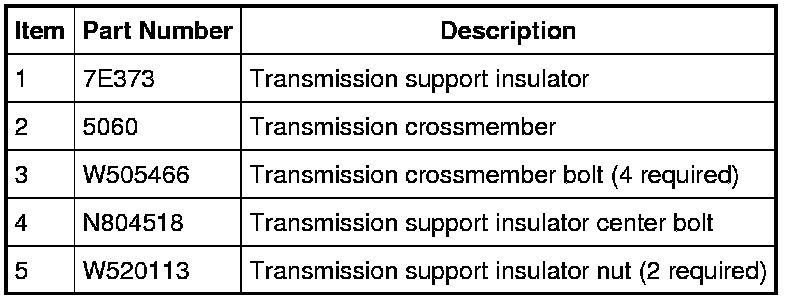

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Remove the transmission crossmember. For additional information, refer to Frame.

3. Remove the 2 transmission support insulator nuts. Separate the transmission support insulator from the transmission mount.
- To install, tighten to 70 Nm (52 lb-ft).

4. To install, reverse the removal procedure.
