Extension Housing Gasket

Extension Housing Gasket













Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Remove the driveshaft. For additional information, refer to Drive/Propeller Shafts, Bearings and Joints.

3. Remove the catalytic converter assembly. For additional information, refer to Exhaust System &/or Catalytic Converter.

4. Remove the transmission crossmember. For additional information, refer to Frame.

5. Remove and discard the transmission output shaft flange nut.

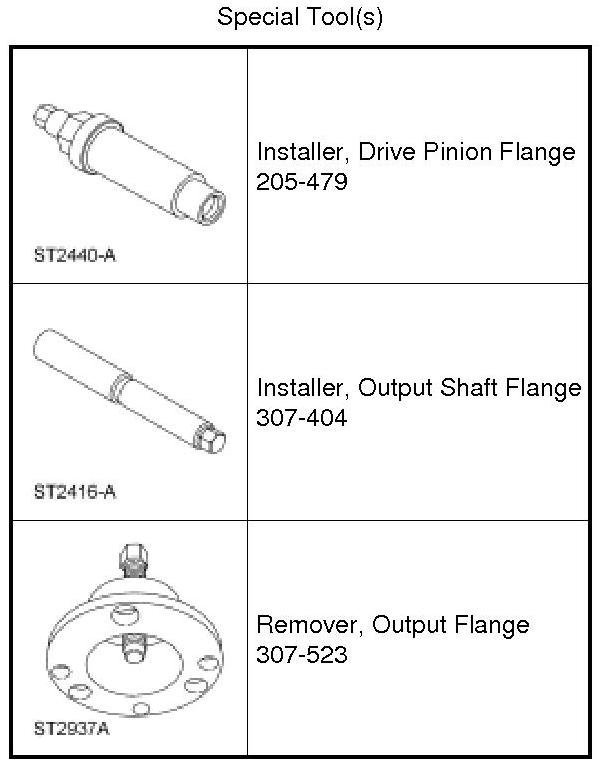

6. Using the Output Flange Remover, remove the output shaft flange.





7. NOTICE: The parking pawl, parking pawl return and parking pawl shaft may fall out during removal of the extension housing.

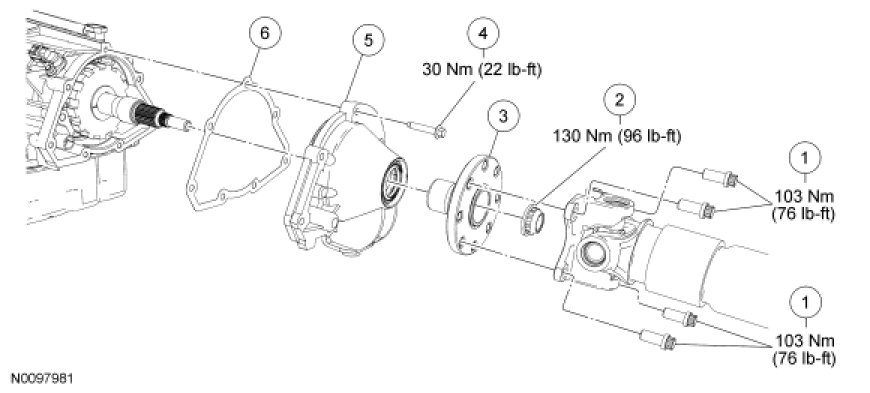

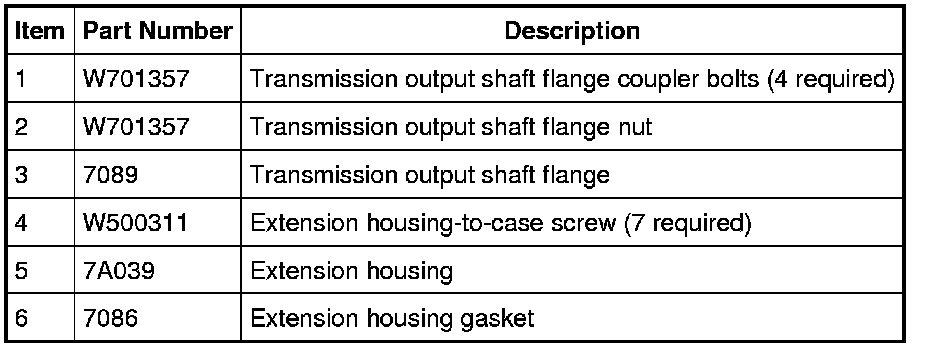

Remove the 7 extension housing screws and the extension housing.





8. Remove and discard the extension housing gasket.





Installation

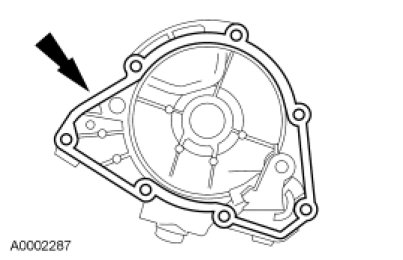

1. Clean the extension housing and install a new extension housing gasket. Make sure the parking pawl is installed correctly.





2. NOTE: Make sure the parking lever actuating rod is correctly seated into the case parking rod guide cup.

Install the extension housing and screws.

- Tighten to 30 Nm (22 lb-ft).





3. Using the Output Shaft Flange Installer and the Drive Pinion Flange Installer, install the output flange.





4. Install a new transmission output shaft flange nut.
- Tighten to 130 Nm (96 lb-ft).





5. Install the transmission crossmember. For additional information, refer to Frame.

6. Install the catalytic converter assembly. For additional information, refer to Exhaust System &/or Catalytic Converter.

7. Install the driveshaft. For additional information, refer to Drive/Propeller Shafts, Bearings and Joints.

8. Check the transmission fluid level. For additional information, refer to Transmission Fluid Level Check Transmission Fluid Level Check.
