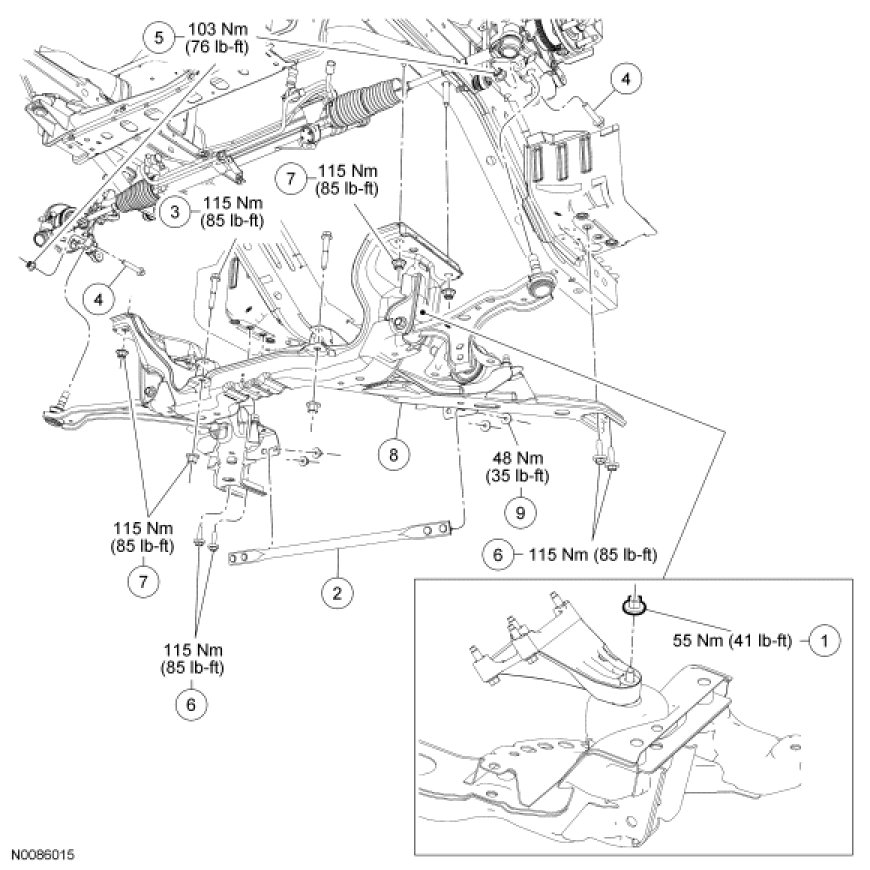

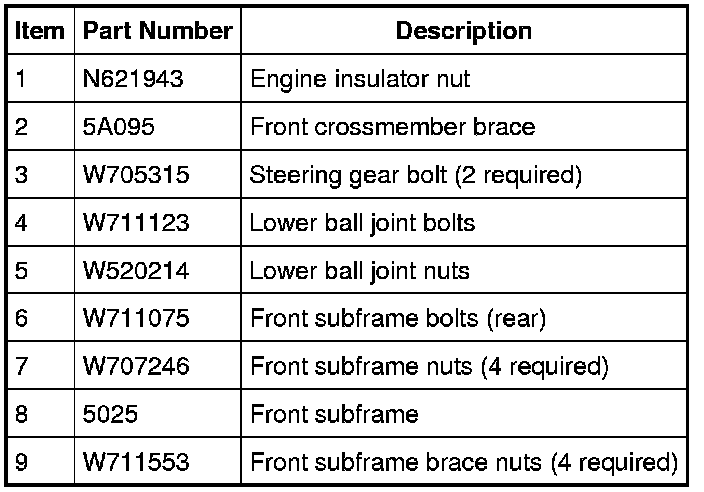

Subframe and Components - Exploded View, Front




Subframe and Components - Exploded View, Front

NOTE: 4.0L subframe shown, all others similar.
