Wiper Switch: Service and Repair

Steering Column Multifunction Switch

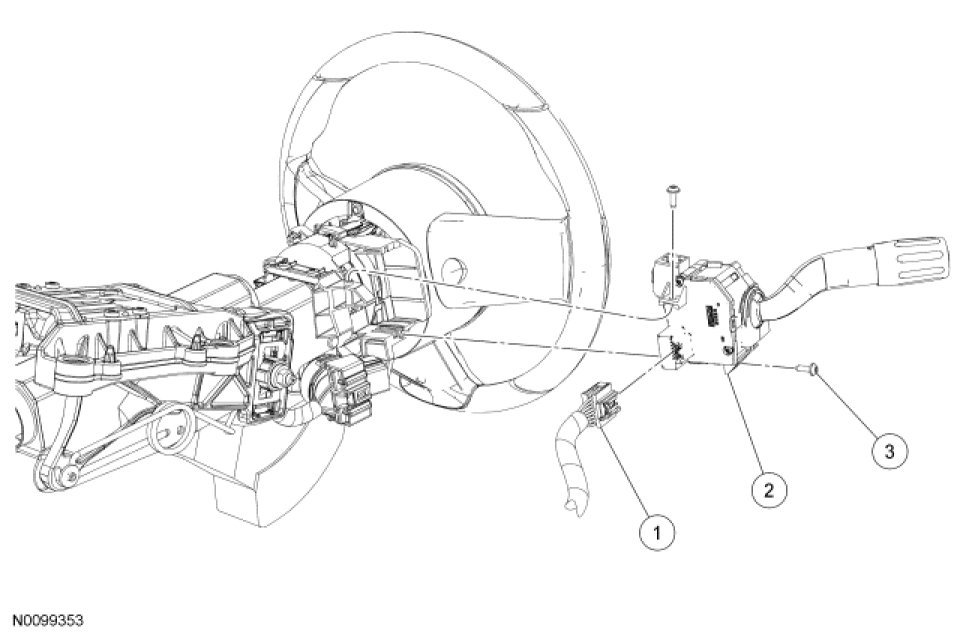

Removal and Installation

1. Remove the steering column shroud. For additional information, refer to Steering Column.

2. Disconnect the multifunction switch electrical connector.

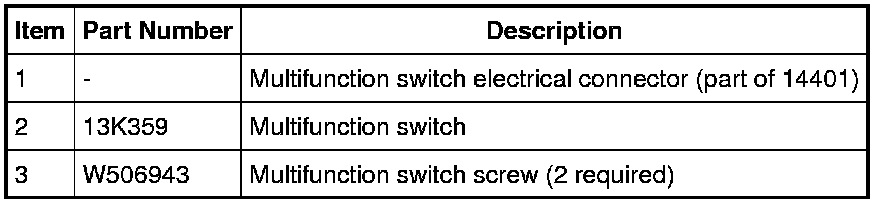

3. Remove the 2 screws and the multifunction switch.

4. To install, reverse the removal procedure.
