Hazard Warning Switch: Service and Repair

Hazard Flasher Lamp Switch

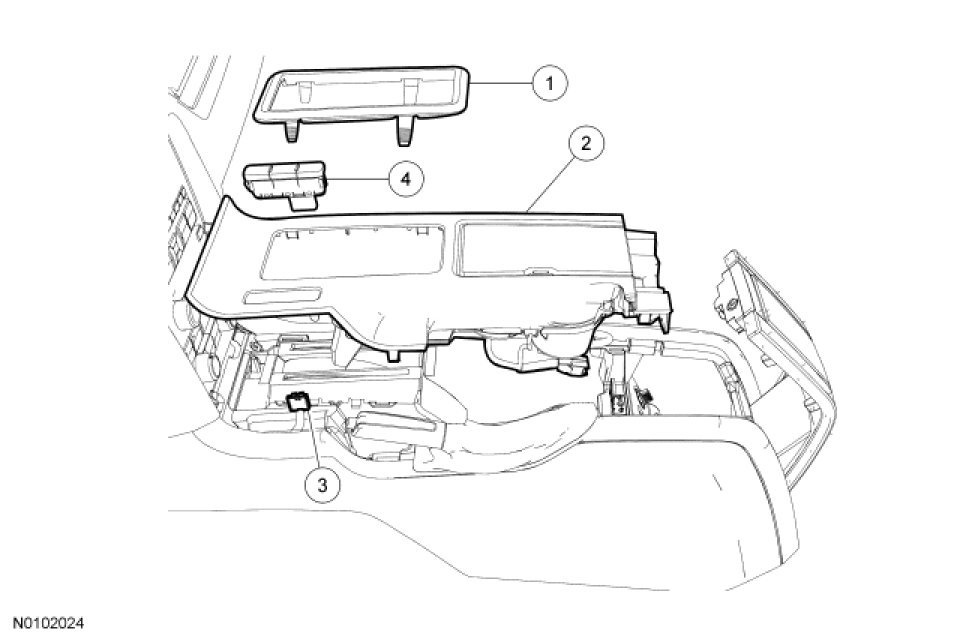

NOTE: Vehicles with automatic transmission shown, manual transmission similar.











Removal and Installation

1. For vehicles with an automatic transmission, remove the gear shift lever bezel.

2. Starting near the storage compartment, grasp and pull up on the floor console trim panel.
- Disconnect the electrical connector.

3. Release the tabs and remove the hazard flasher lamp switch from the floor console trim panel.

4. To install, reverse the removal procedure.
