Dimmer Switch: Service and Repair

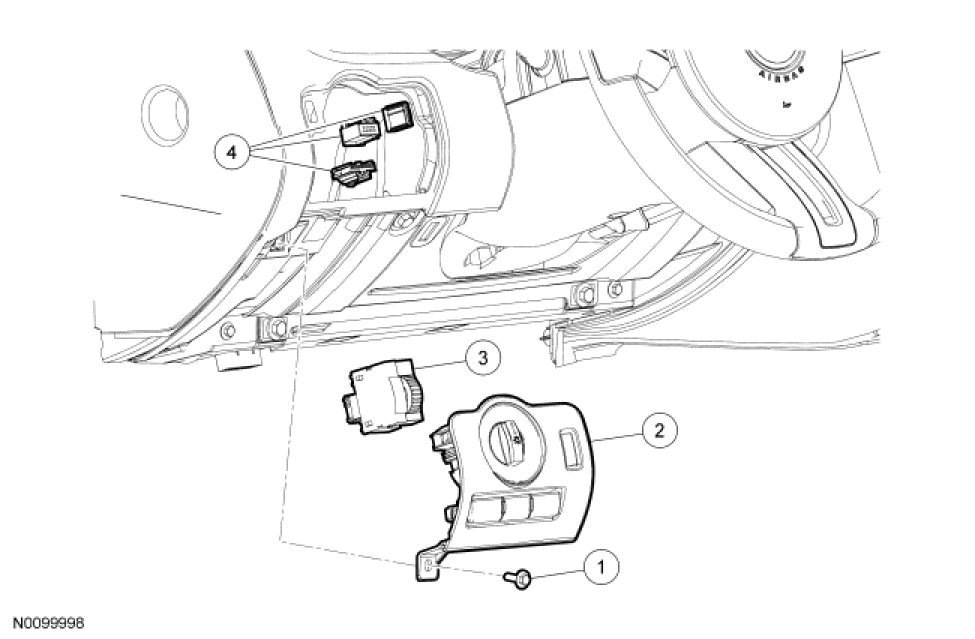

Instrument Panel Dimmer Switch









Removal and Installation

1. Remove the steering column opening trim panel. For additional information, refer to Instrument Panel - Exploded View in Instrument Cluster / Carrier &/or Interior Moulding / Trim.

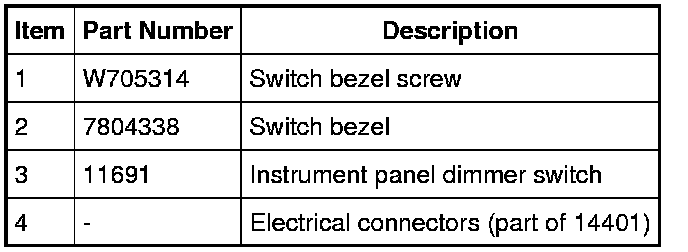

2. Remove the switch bezel screw.

3. Remove the switch bezel assembly.

4. Disconnect the electrical connectors

5. Release the tabs and remove the instrument panel dimmer switch from the switch bezel.

6. To install, reverse the removal procedure.
