Steering Angle Sensor: Service and Repair

Steering Wheel Rotation Sensor

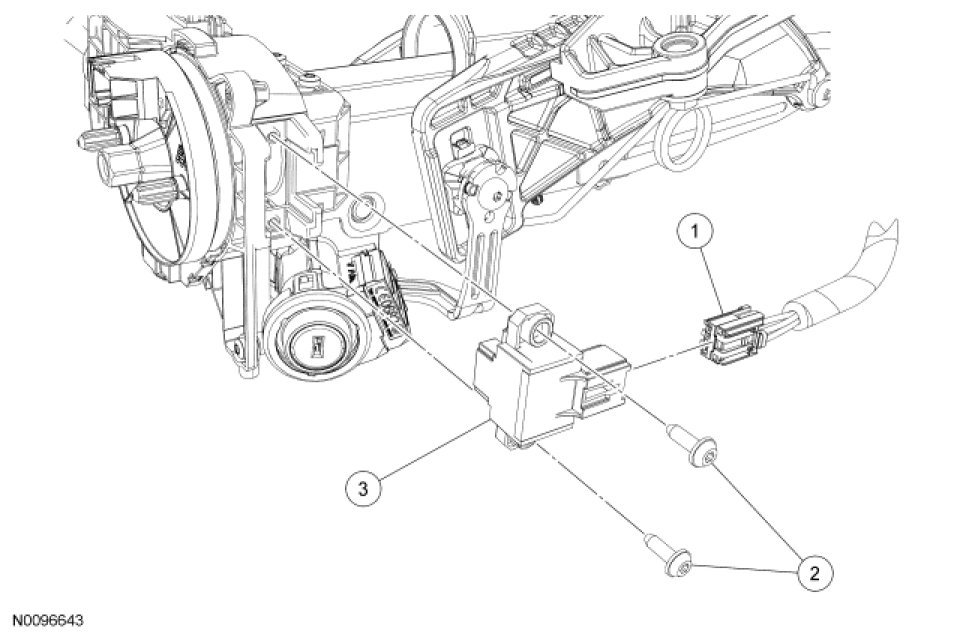

Removal and Installation

1. Remove the steering column shroud. For additional information, refer to Steering Column.

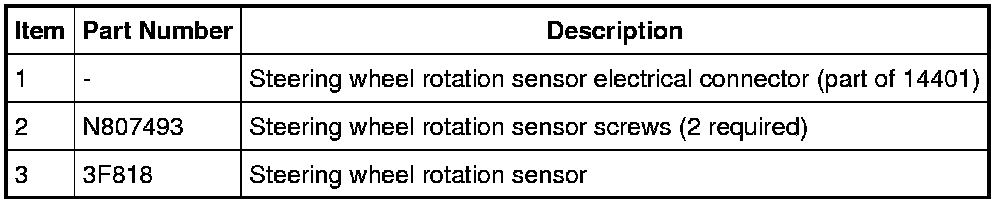

2. Disconnect the steering wheel rotation sensor electrical connector.

3. Remove the 2 screws and the steering wheel rotation sensor.

4. To install, reverse the removal procedure.

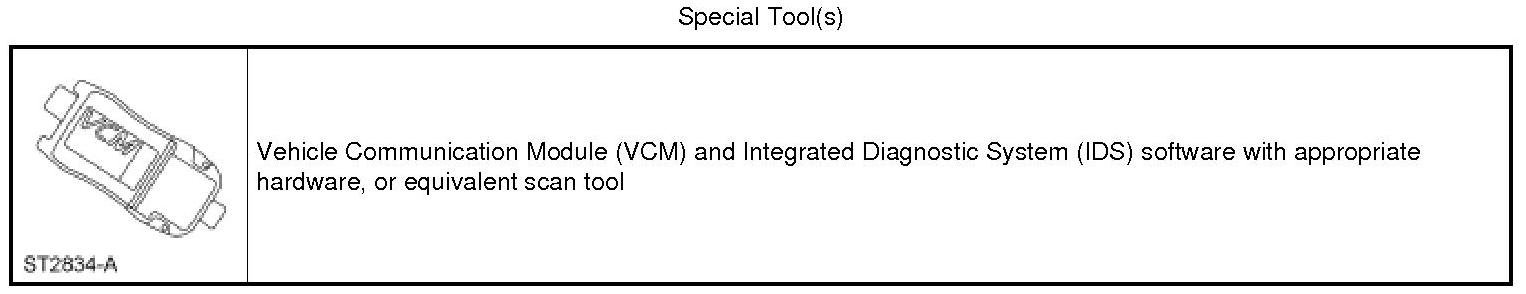

- Using the scan tool, carry out the IVD Initialization sequence.
