Side Marker Lamp - Front

Side Marker Lamp - Front









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

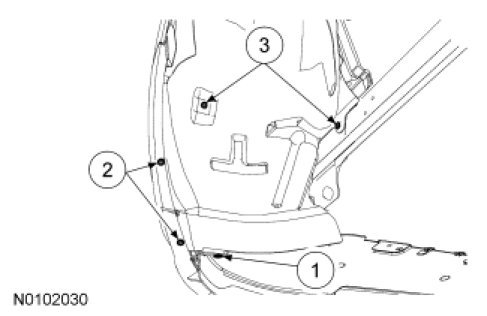

2. Position the fender splash shield aside.

1. Remove the lower air deflector-to-splash shield screw.

2. Remove the 2 fender-to-splash shield screws.

3. Remove the 2 pin-type retainers and position the fender splash shield aside.

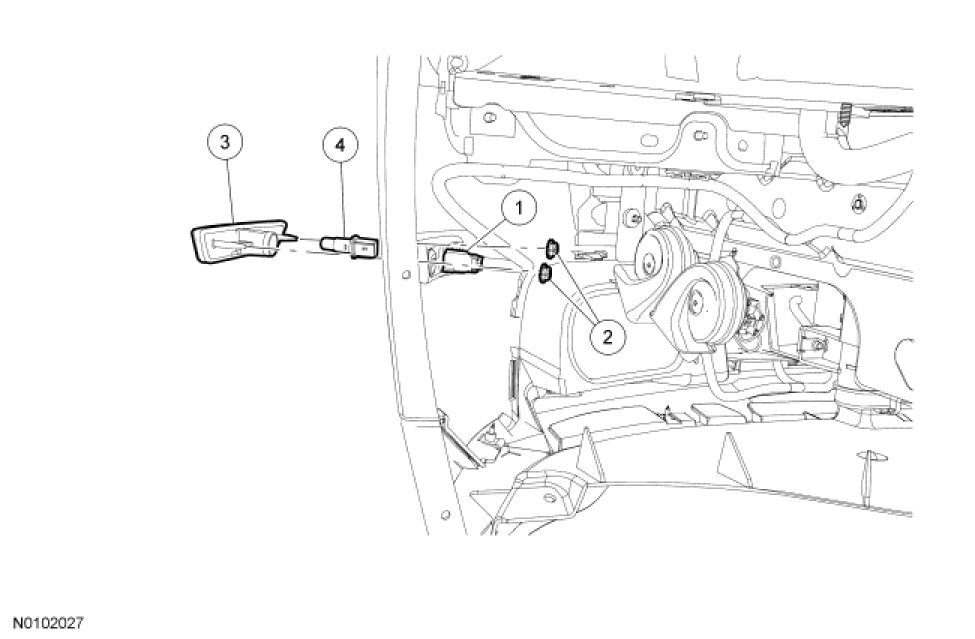

3. Disconnect the side marker lamp electrical connector.

4. NOTE: The bulb can be replaced without removing the side marker lamp assembly.

Remove the 2 nuts and the side marker lamp.

5. To install, reverse the removal procedure.
