Removal and Replacement




Exhaust System - Exploded View

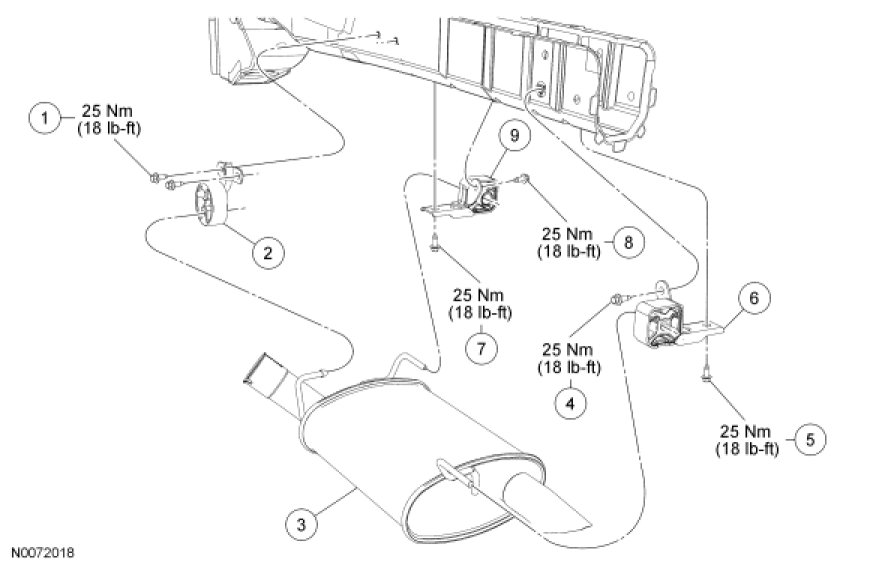

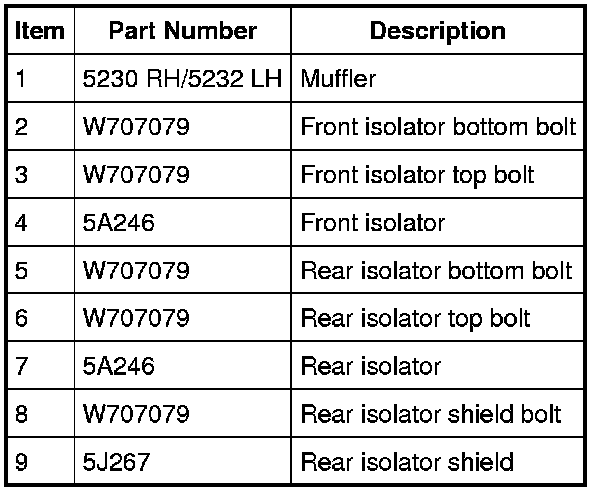

4.0L (View 1 of 2)

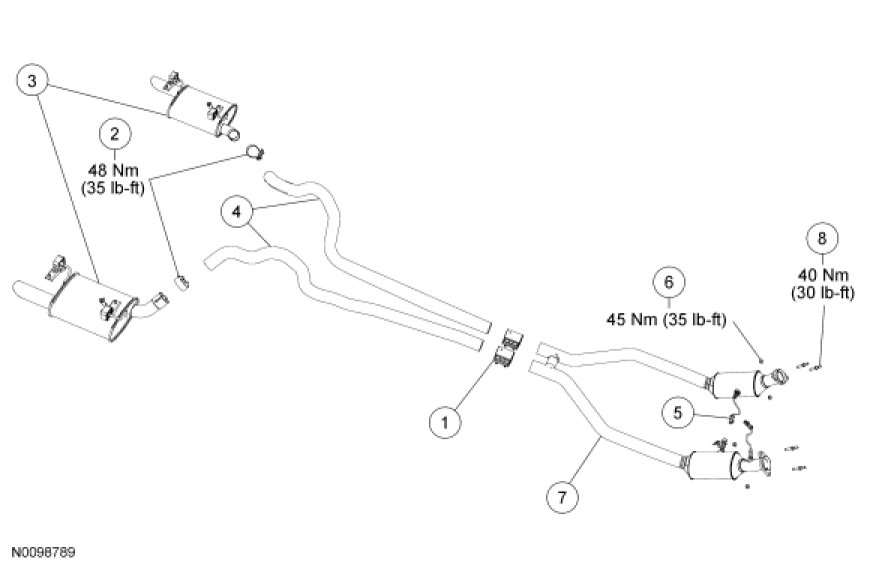

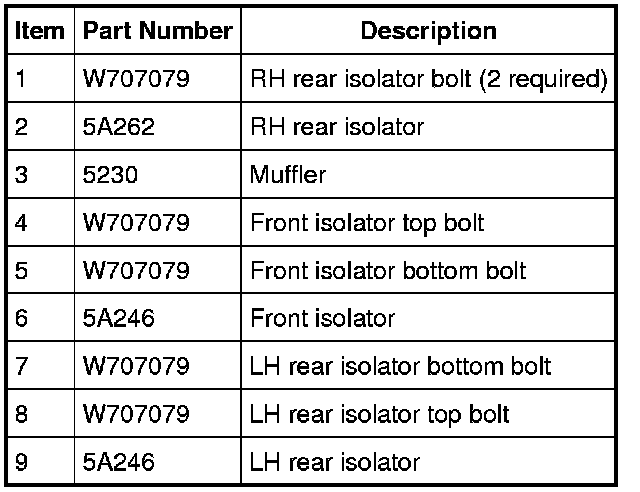

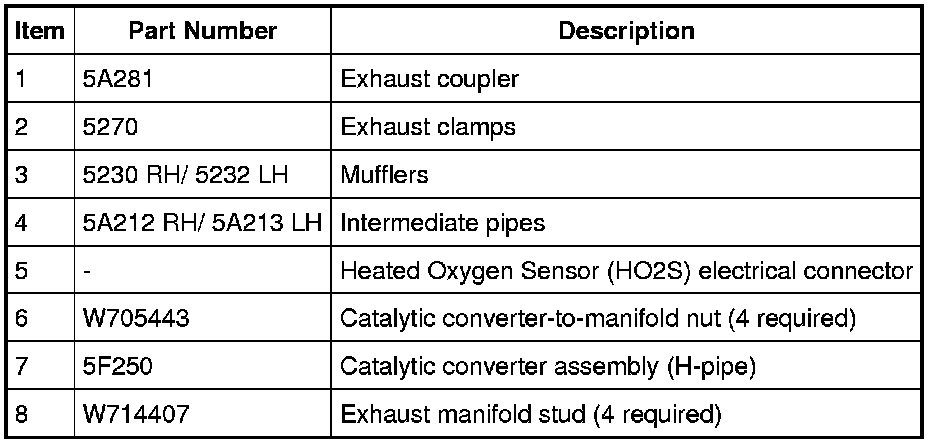

4.0L (View 2 of 2)

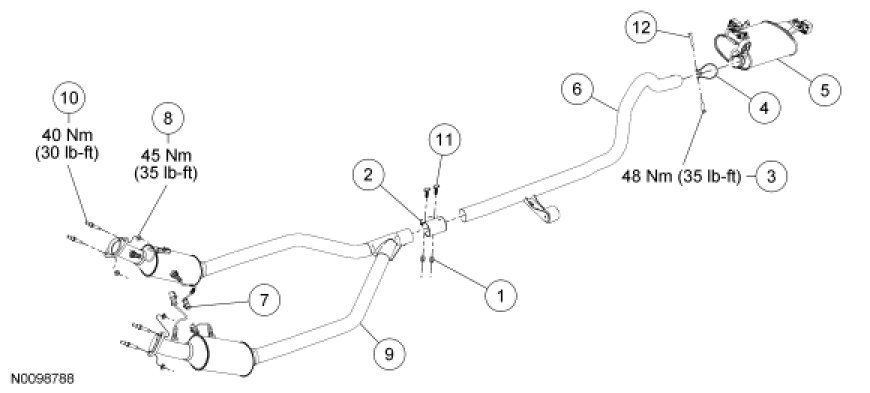

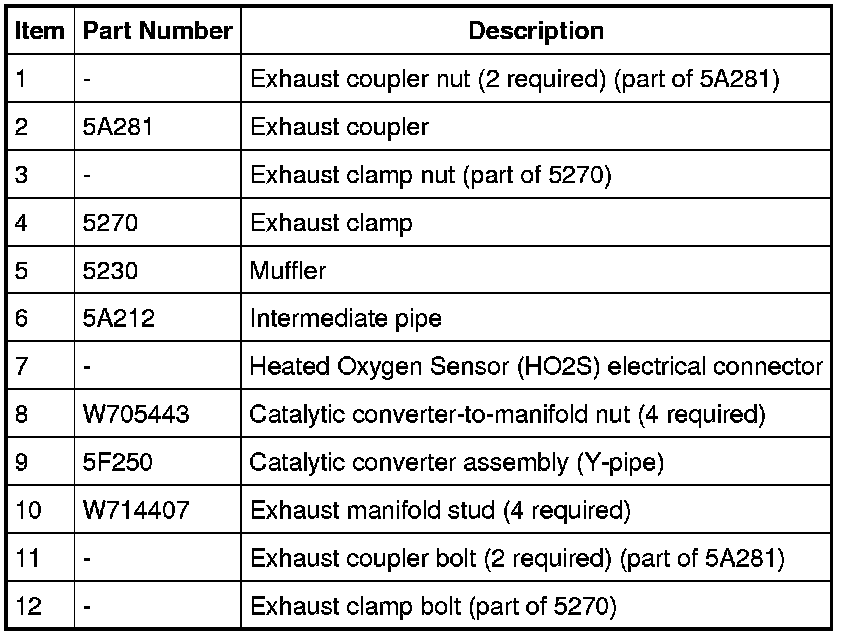

V8 Engines (View 1 of 2)

NOTE: 4.6L shown, 5.4L similar.

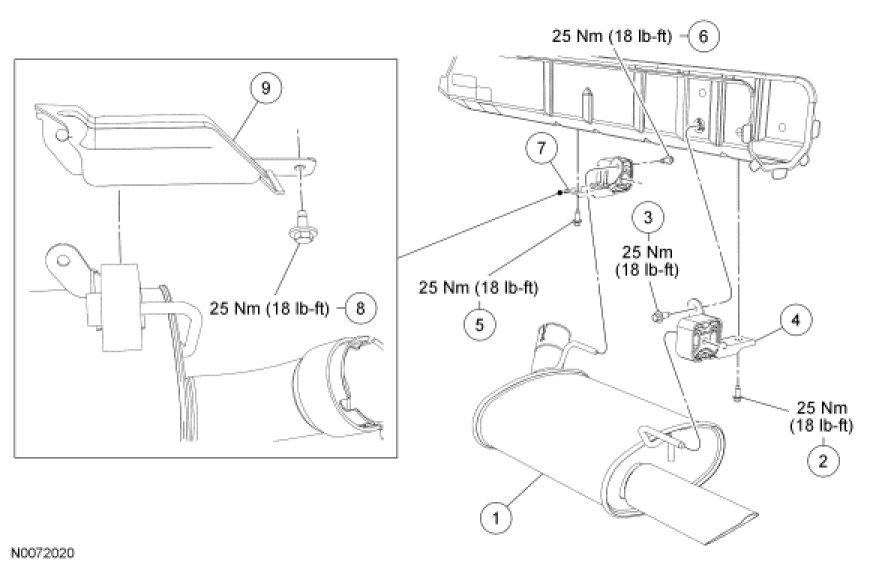

V8 Engines (View 2 of 2)
