Timing Drive Components - Hydraulic Chain Tensioner, LH

Timing Drive Components - Hydraulic Chain Tensioner, LH









Removal and Installation

1. Remove the Engine Coolant Temperature (ECT) sensor. For additional information, refer to Computers and Control Systems.

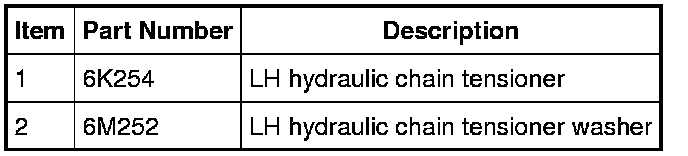

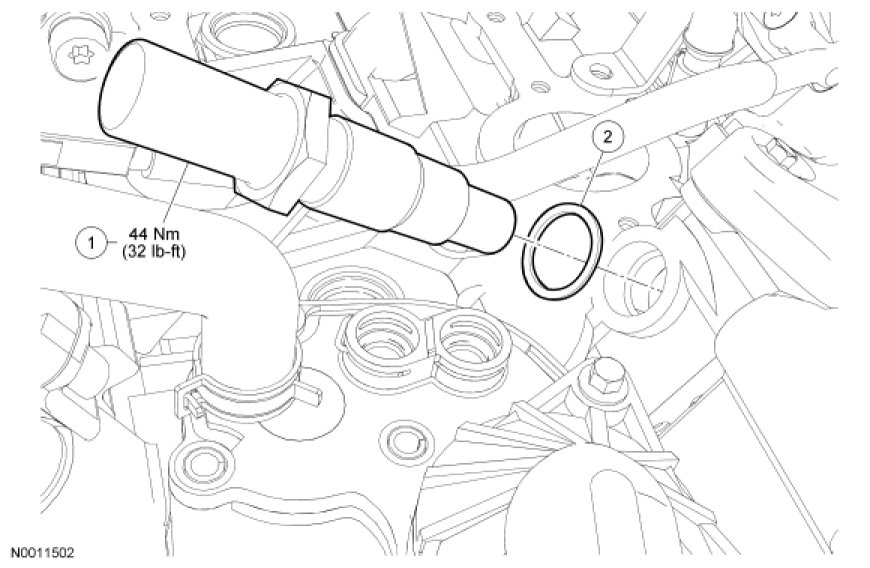

2. Remove the LH hydraulic chain tensioner.
- To install, tighten to 44 Nm (32 lb-ft).

3. Remove and discard the washer.

4. To install, reverse the removal procedure.
