Oil Pan, Oil Pump, Cylinder Block Cradle and Oil Pump Screen and Pickup Tube - Exploded View

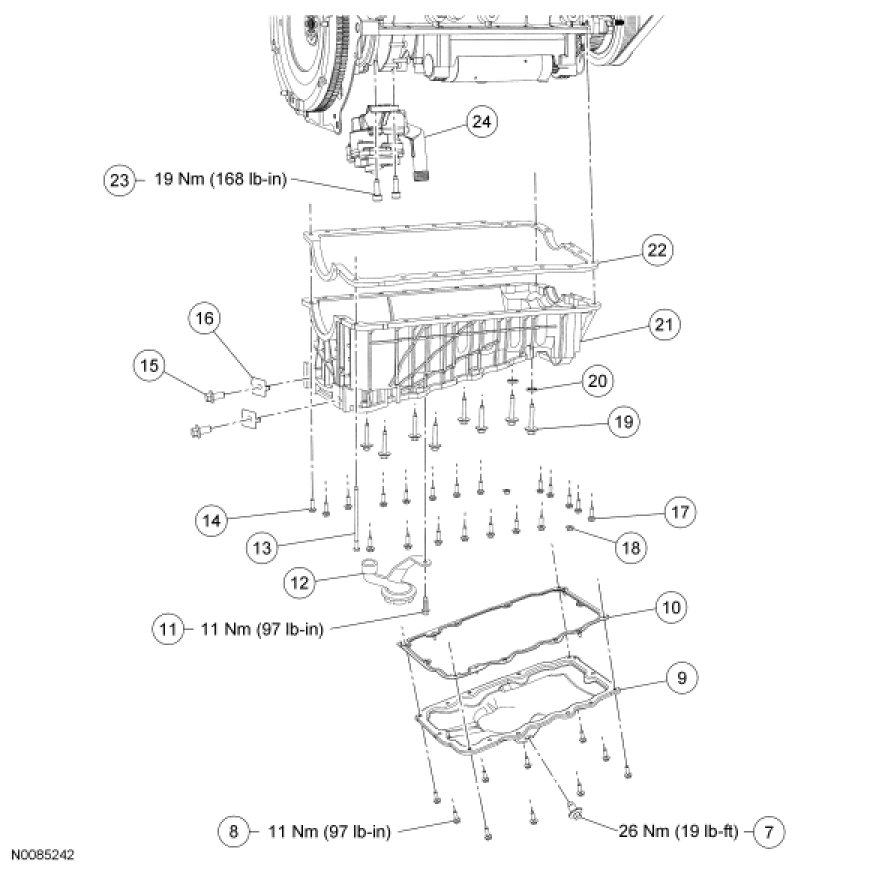

Engine Lubrication Components - Exploded View

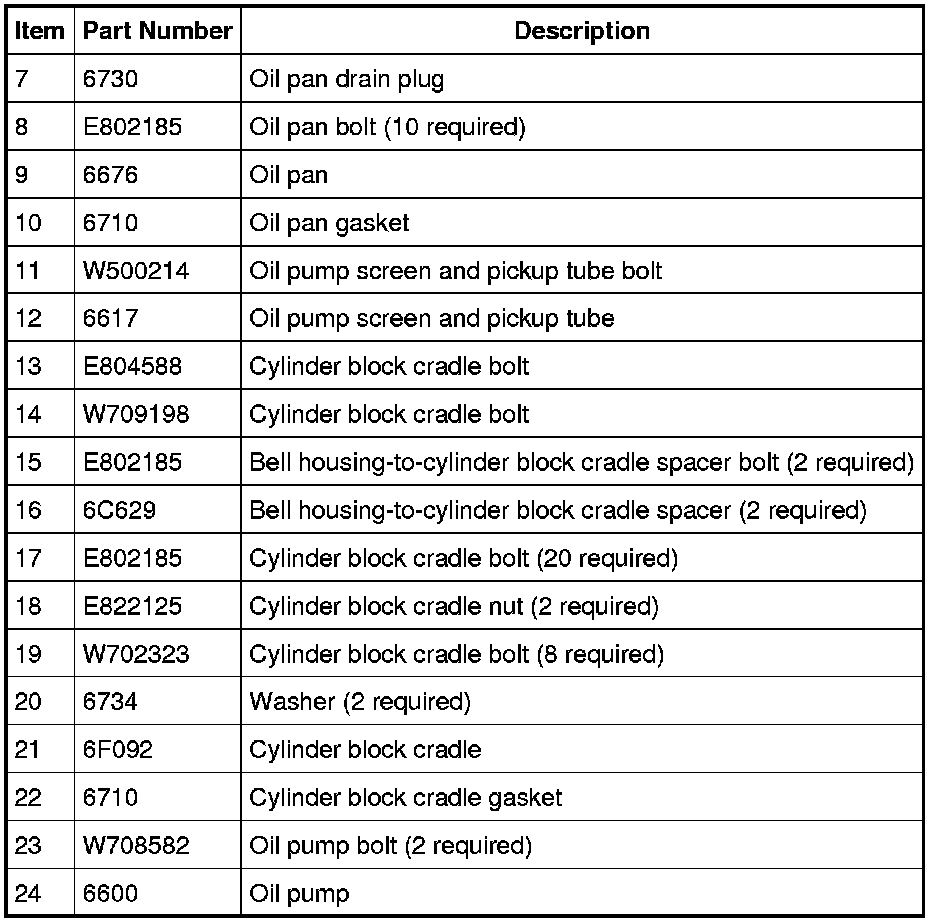

Oil Pan, Oil Pump, Cylinder Block Cradle and Oil Pump Screen and Pickup Tube
