Oil Level Indicator and Tube

Oil Level Indicator and Tube













Removal and Installation

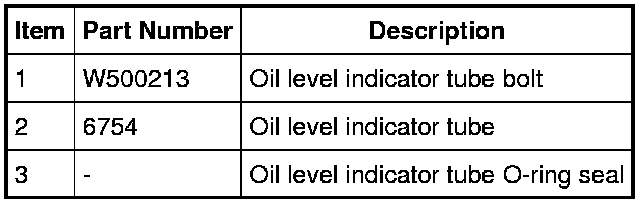

1. Remove the bolt and the oil level indicator tube.
- To install, tighten to 11 Nm (97 lb-in).
- Remove and discard the O-ring seal.

2. NOTE: Lubricate the O-ring seal with clean engine oil.

To install, reverse the removal procedure.
