Camshaft Roller Follower

Camshaft Roller Follower









Removal and Installation

1. Remove the fuel rail. For additional information, refer to Fuel Delivery and Air Induction.

2. Remove the LH and RH valve covers. For additional information, refer to Valve Cover - RH Valve Cover - RH and Valve Cover - LH Valve Cover - LH.

3. Rotate the crankshaft until the camshaft for the cylinder being serviced is at base circle.





4. NOTE: Mark the position of the camshaft roller followers so they can be installed in their original positions.

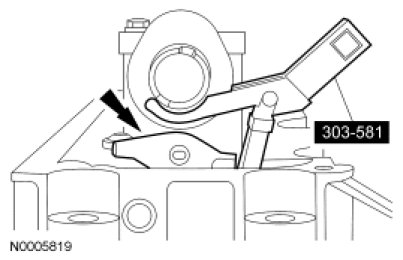

Using the Valve Spring Compressor, remove the camshaft roller followers.





5. NOTE: The camshaft roller followers must be installed in their original positions.

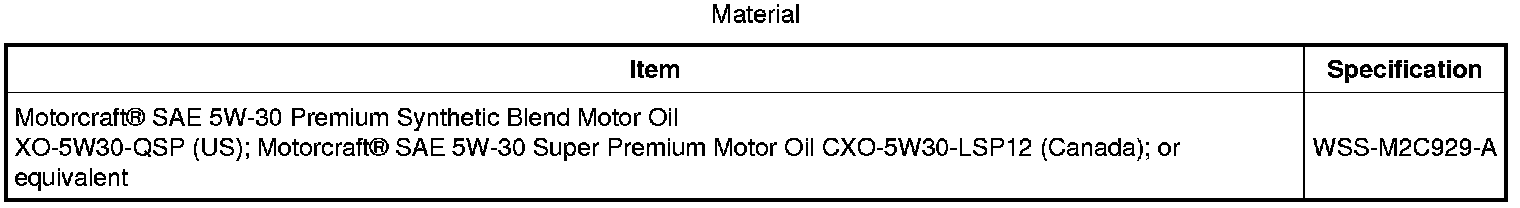

NOTE: Lubricate the camshaft roller followers with clean engine oil.

To install, reverse the removal procedure.
