Parking Brake Control

Parking Brake Control

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Remove the floor console. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

3. Release the tension on the parking brake cable. For additional information, refer to Parking Brake Cable Tension Release Procedures.

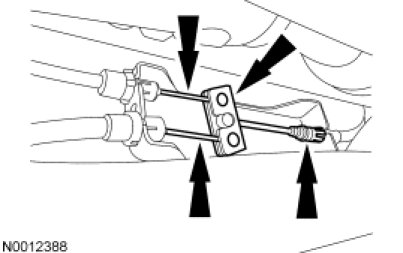

4. Disconnect the front parking brake cable from the 2 rear parking brake cables at the equalizer and release the front cable from the body bracket.





5. Disconnect the parking brake switch electrical connector.

6. Remove the nut from the parking brake control.
- To install, tighten to 17 Nm (150 lb-in).

7. Remove the 2 bolts from the parking brake control.
- To install, tighten to 30 Nm (22 lb-ft).

8. Remove the parking brake control.
- Position the cable and equalizer through the floorpan.

9. To install, reverse the removal procedure.
- Adjust the parking brake cable tension. For additional information, refer to Parking Brake Cable Adjustment Adjustments.
