Lumbar Assembly

Lumbar Assembly

Removal and Installation

NOTE: For parts identification and location, refer to Seat - Exploded View, Front Seat - Exploded View, Front.

1. Remove the seat backrest. For additional information, refer to Seat Backrest - Front Seat Backrest - Front.

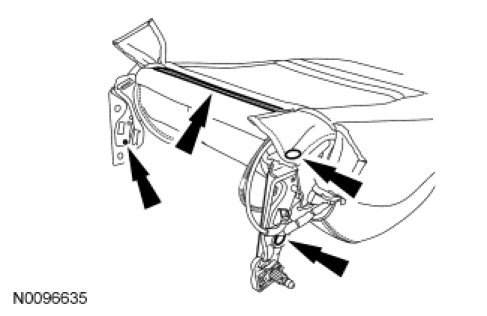

2. Release the backrest cover pin-type retainers and J-clip.





3. Release the J-clip at the back of the backrest trim cover and separate the hook-and-loop strip.

4. NOTICE: Use care when separating the seat backrest cover from the hook-and-loop strips. The hook-and-loop strips may be torn from the foam pad.

Partially invert the seat backrest cover to access the lumbar assembly.

5. Detach the 4 hooks from the backrest frame and remove the lumbar assembly.
- If equipped, disconnect the power lumbar electrical connector.





6. To install, reverse the removal procedure.
