Convertible Top - Exploded View




Convertible Top - Exploded View

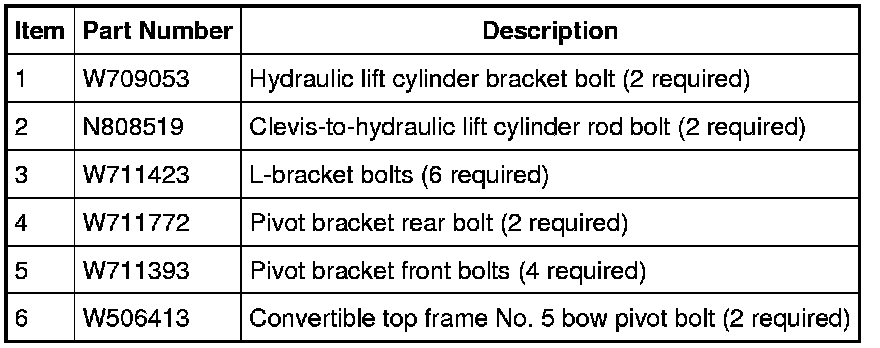

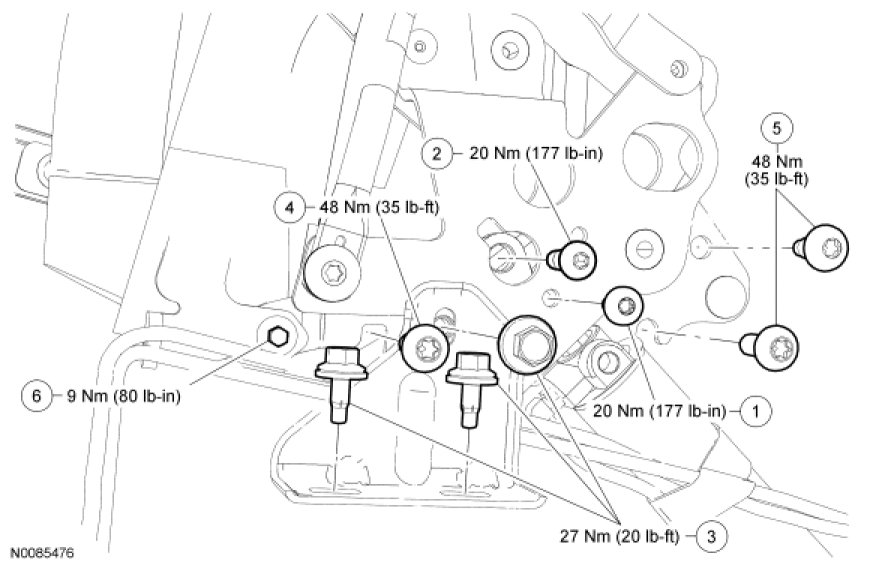

Convertible Top Assembly (View 1 of 3)

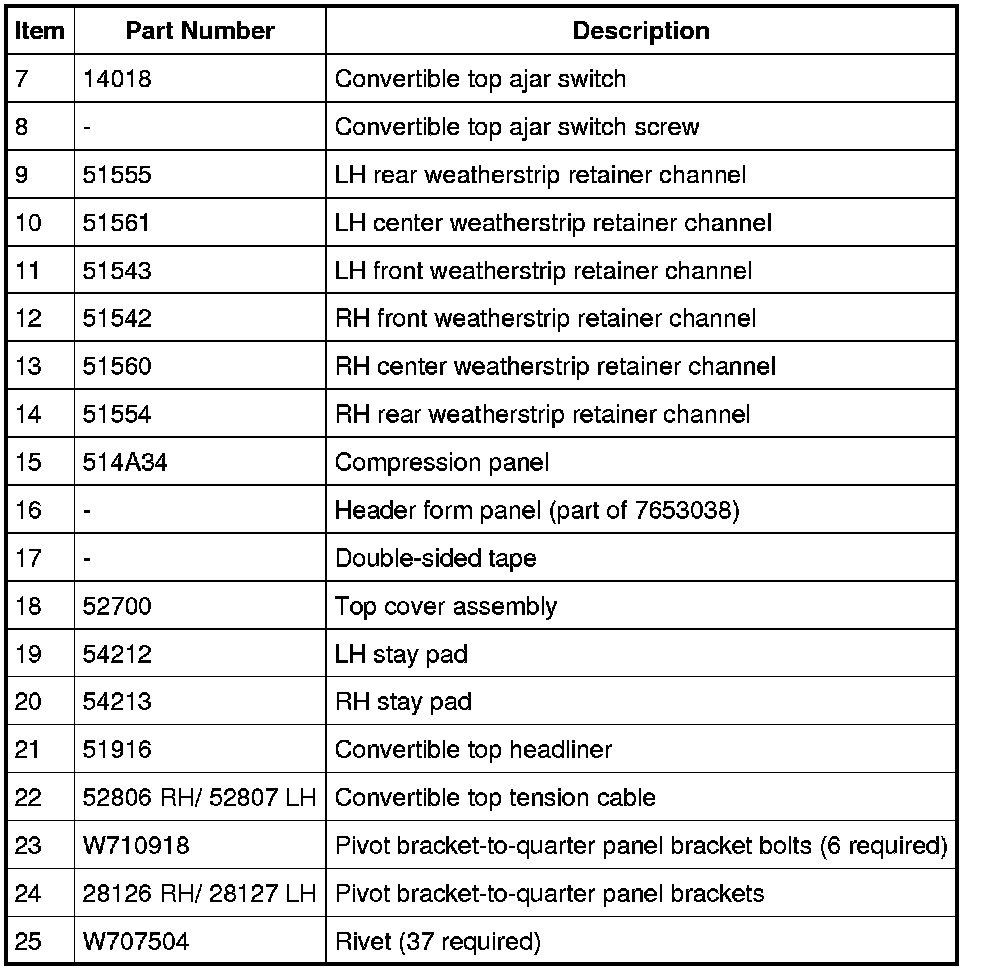

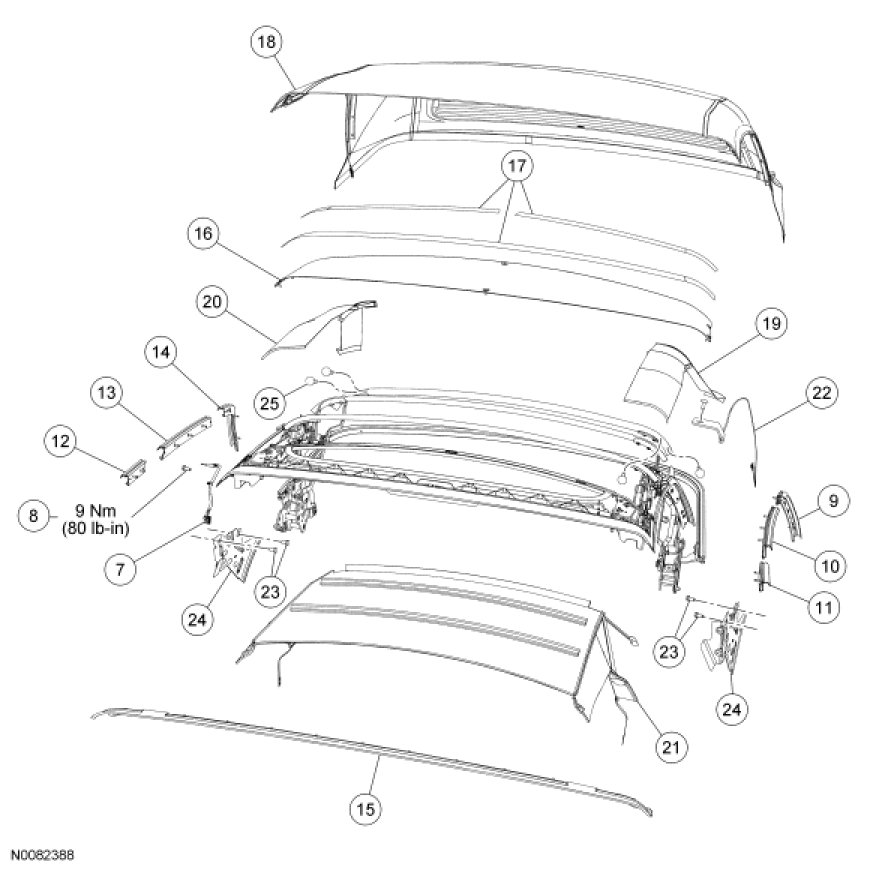

Convertible Top Assembly (View 2 of 3)

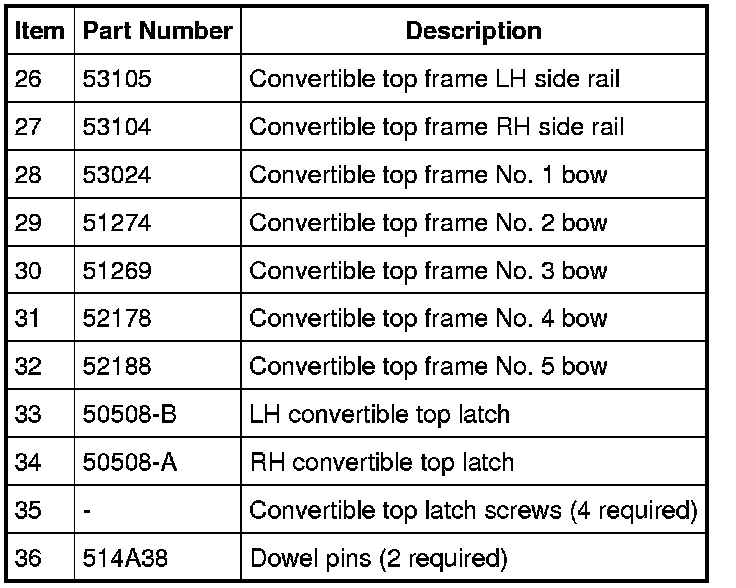

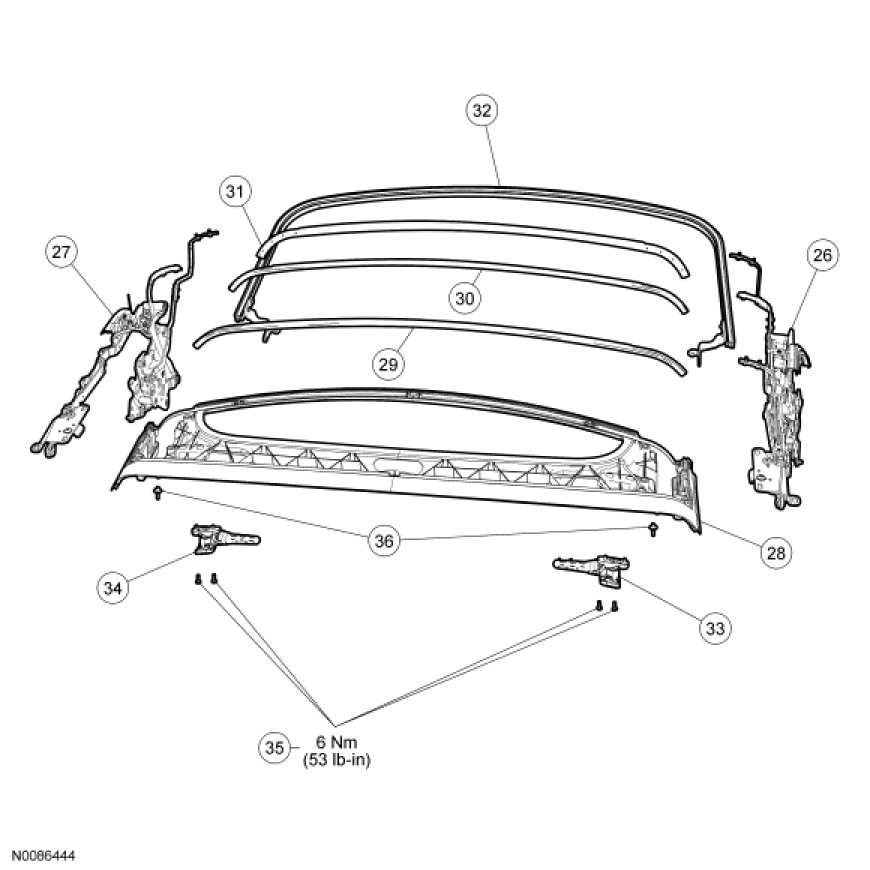

Convertible Top Assembly (View 3 of 3)
