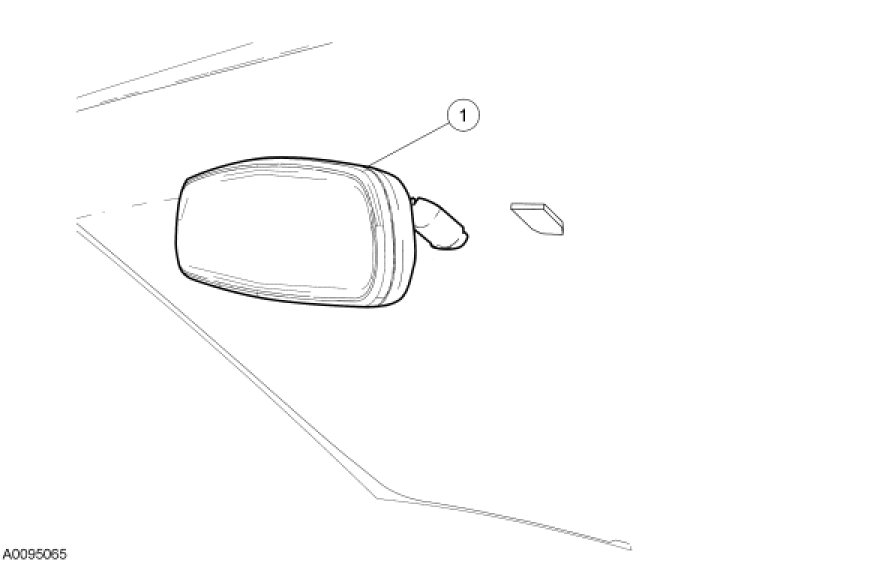

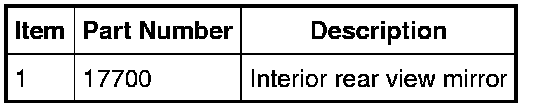

Interior Rear View Mirror




Interior Rear View Mirror













Removal

NOTICE: The interior rear view mirror is of the break-away design. Excessive force in any direction may cause damage to the mirror or the windshield.

1. Position the interior rear view mirror in the full up position.

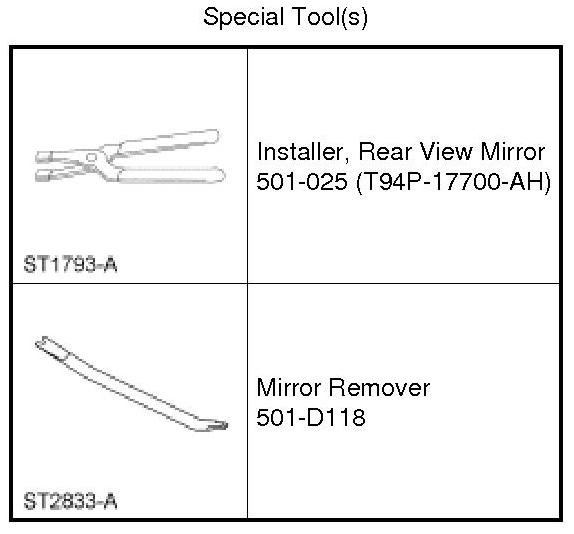

2. Insert the Mirror Remover between the mirror mount and windshield bracket.





Installation

1. Place the interior rear view mirror on the windshield bracket.

2. Using the Rear View Mirror Installer, press the interior rear view mirror in place until fully seated.
