Trunk / Liftgate Lock Cylinder: Service and Repair

Luggage Compartment Lid Lock Cylinder - Convertible

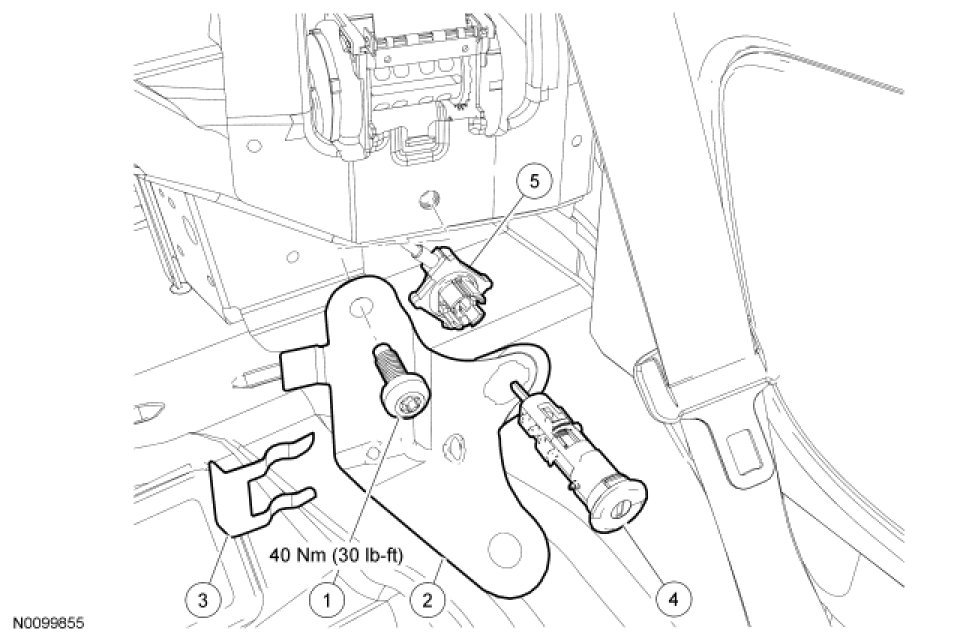

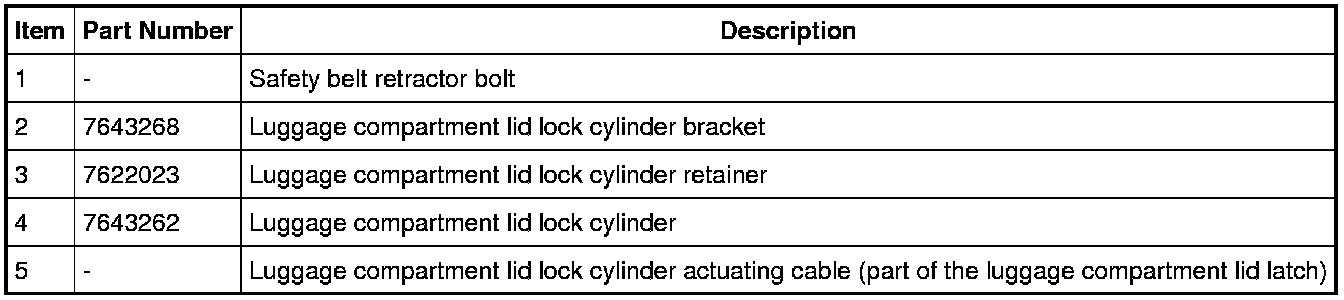

Removal and Installation

1. Remove the rear seat backrest. For additional information, refer to Seats.

2. Remove the safety belt retractor bolt.
- To install, tighten to 40 Nm (30 lb-ft).

3. Disconnect the luggage compartment lid latch actuator cable from the luggage compartment lid lock cylinder.

4. Slide the luggage compartment lid lock cylinder retainer off the lock cylinder.

5. Remove the luggage compartment lid lock cylinder.

6. To install, reverse the removal procedure.
