Door Lock Cylinder: Service and Repair

Door Lock Cylinder

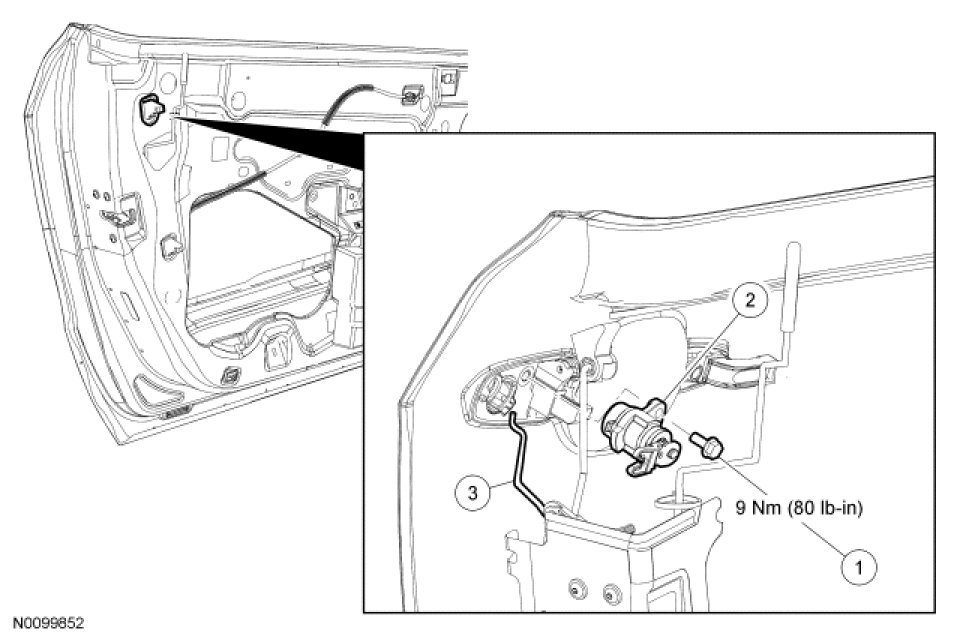

NOTE: Inner door sheet metal shown removed for clarity.











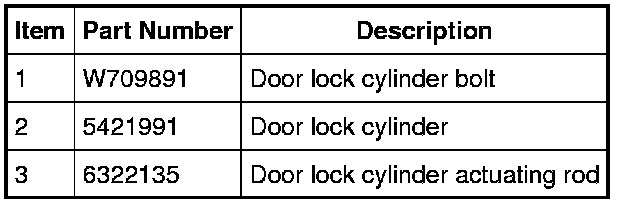

Removal and Installation

1. Raise the door window glass to the full-up position.

2. Remove the door trim panel.

3. Position the water shield aside.

4. Remove the bolt and turn the door lock cylinder clockwise one-eighth of a turn.
- To install, tighten to 9 Nm (80 lb-in).

5. Disconnect the door lock cylinder actuating rod and remove the door lock cylinder.

6. To install, reverse the removal procedure.
