Scuff Plate: Service and Repair

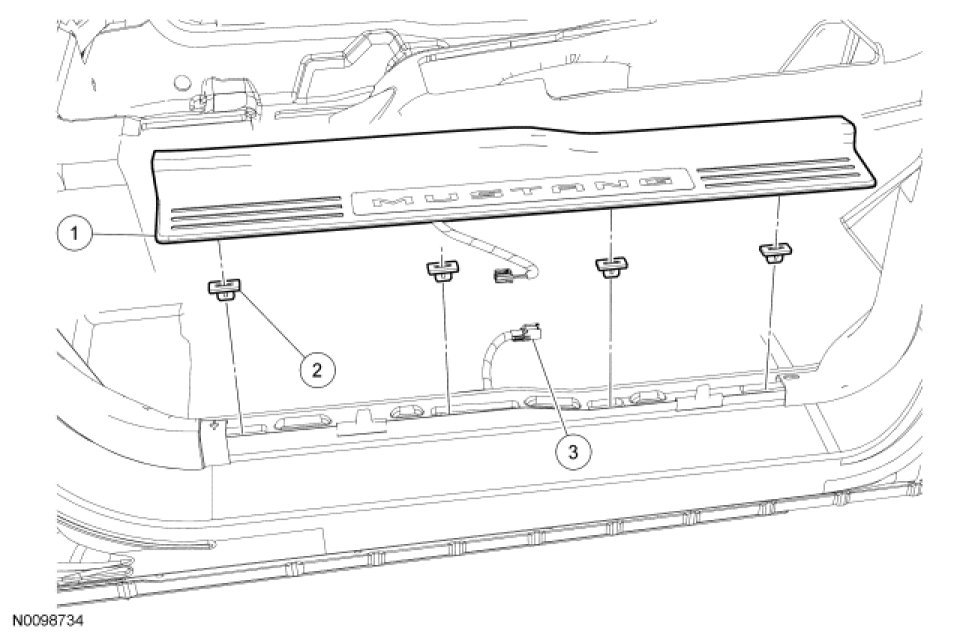

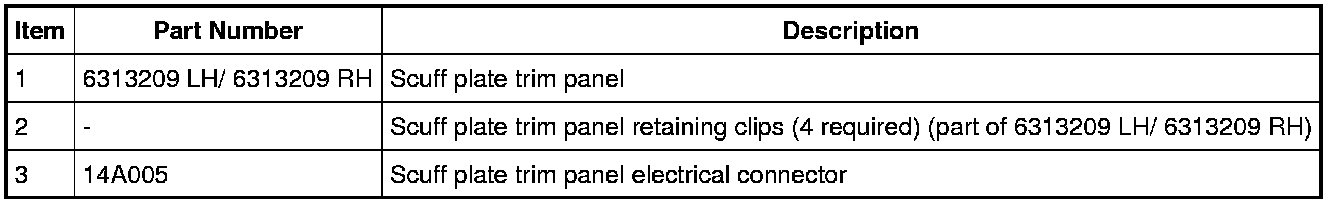

Scuff Plate Trim Panel









1. NOTICE: To avoid damage to the scuff plate trim panel, remove any retaining clips from the body and attach them to the scuff plate trim panel before installing.

Remove the front door scuff plate trim panel by lifting straight up on the front and rear edge of the scuff plate trim panel to release the 4 lower retaining clips.

2. Disconnect the door scuff plate trim panel electrical connector.

3. Remove the door scuff plate trim panel.

4. To install, reverse the removal procedure.
