Grille: Service and Repair

Radiator Grille

Base and GT









Shelby









Removal and Installation

All vehicles

1. Remove the front bumper cover. For additional information, refer to Bumper.

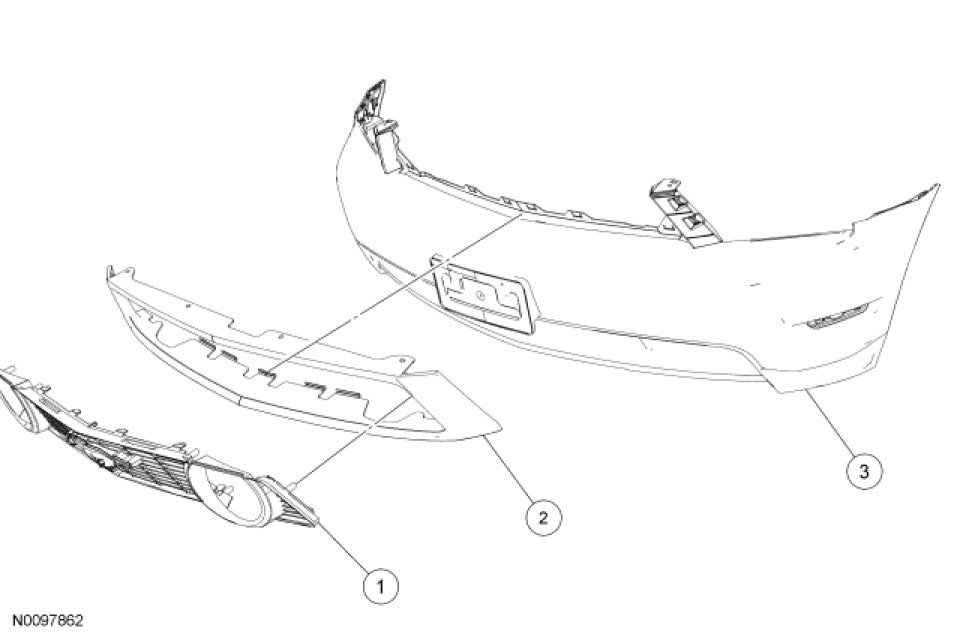

Base and GT

2. Release the radiator grille retaining clips from the radiator grille bezel and remove the radiator grille.

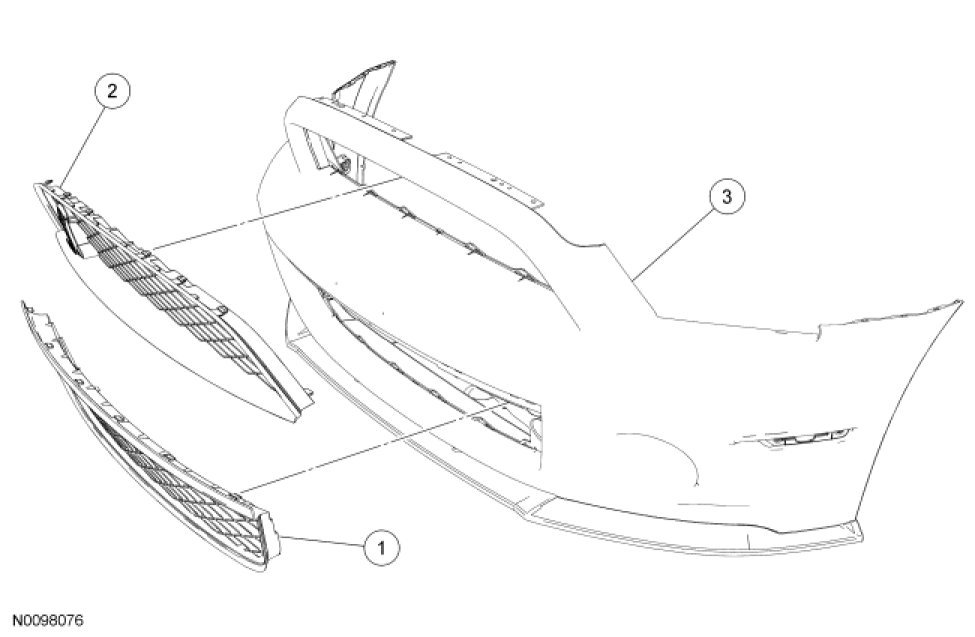

Shelby upper radiator grille

3. Release the upper radiator grille retaining clips from the front bumper cover and remove the upper radiator grille.

Shelby lower radiator grille

4. Release the lower radiator grille retaining clips from the front bumper cover and remove the lower radiator grille.

All vehicles

5. To install, reverse the removal procedure.
