Trunk / Liftgate Latch: Service and Repair

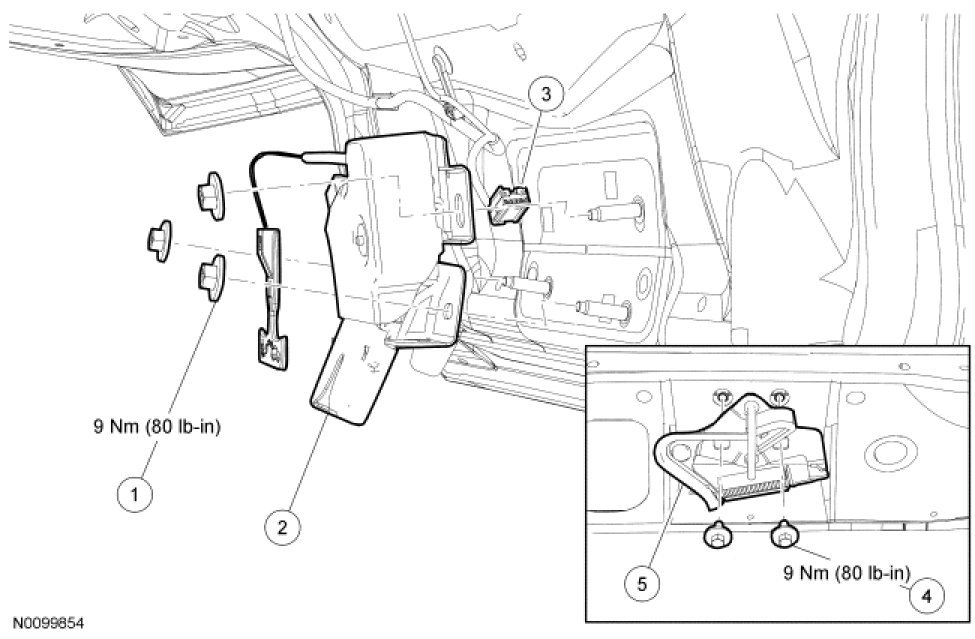

Luggage Compartment Lid Latch









Removal and Installation

1. Remove the luggage compartment lid trim panel.

2. For convertible vehicles, remove the luggage compartment lid lock cylinder. For additional information, refer to Luggage Compartment Lid Lock Cylinder - Convertible Service and Repair.

3. For convertible vehicles, remove the luggage compartment lid lock cylinder actuating guide clip and pull the cable out from behind the luggage compartment trim panel.

4. Disconnect the luggage compartment lid latch electrical connector.

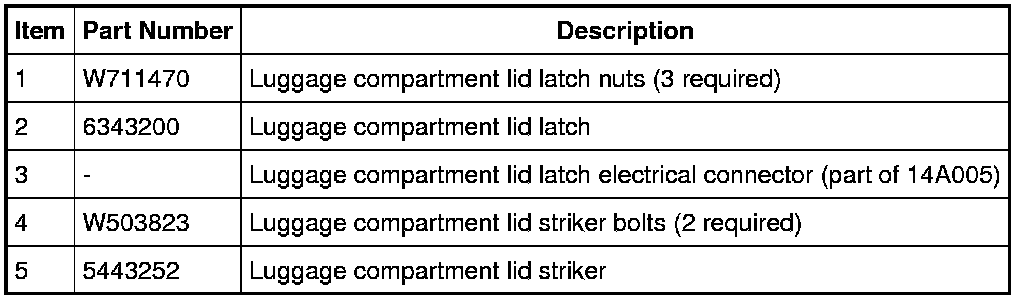

5. Remove the 3 luggage compartment lid latch nuts.
- To install, tighten to 9 Nm (80 lb-in).

6. Remove the luggage compartment lid latch.

7. To install, reverse the removal procedure.
