Inspection and Verification

Body Control Module B (BCM-B)

Inspection and Verification

1. Verify the customer concern.

2. Visually inspect for obvious signs of electrical damage.

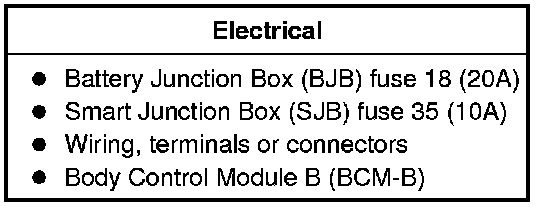

Visual Inspection Chart





3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. NOTE: Make sure to use the latest scan tool software release.

If the cause is not visually evident, connect the scan tool to the Data Link Connector (DLC).

5. NOTE: The Vehicle Communication Module (VCM) LED prove-out confirms power and ground from the DLC are provided to the VCM.

If the scan tool does not communicate with the VCM:

- Check the VCM connection to the vehicle.

- Check the scan tool connection to the VCM.

- Refer to Information Bus, No Power To The Scan Tool, to diagnose no power to the scan tool.

6. If the scan tool does not communicate with the vehicle:
- Verify the ignition key is in the ON position.

- Verify the scan tool operation with a known good vehicle.

- Refer to Information Bus to diagnose no response from the PCM.

7. Carry out the network test.
- If the scan tool responds with no communication for one or more modules, refer to Information Bus.

- If the network test passes, retrieve and record the continuous memory DTCs.

8. Clear the continuous DTCs and carry out the self-test diagnostics for the BCM-B.

9. NOTE: In order to correctly run the self-test, the convertible top (if equipped) must be in the full-down position and the doors must be closed. If these conditions are not met, DTCs B1267:11, B1268:11, B1269:11 and/or B126D:15 may set. In this case, they would be product characteristic and diagnostics should not be followed for these DTCs at this time.

Clear the DTCs. Repeat the self-test with the convertible top (if equipped) in the full-down position and both doors closed. If the DTCs retrieved are related to the concern, go to DTC Charts Body Control Module B (BCM-B). For all other DTCs, refer to Diagnostic Trouble Code (DTC) Chart Diagnostic Trouble Code (DTC) Chart.

10. If no DTCs related to the concern are retrieved, GO to Symptom Chart. Body Control Module B (BCM-B)
