Front Display Interface Module (FDIM)

Front Display Interface Module (FDIM)

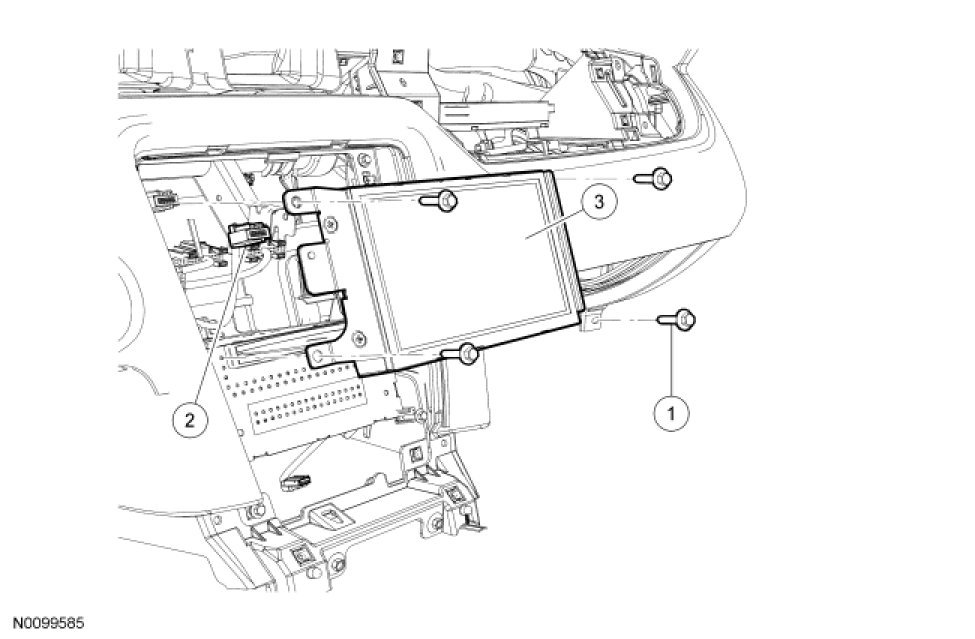

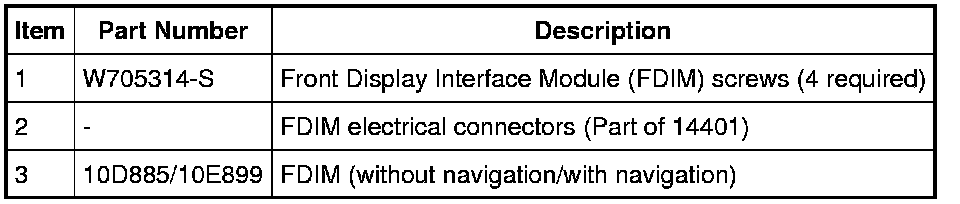

NOTE: With navigation shown, without navigation similar.











Removal and Installation

1. NOTE: Module configuration is required when a new Front Display Interface Module (FDIM) is being installed.

Upload the FDIM configuration information to the scan tool. For additional information, refer to Information Bus to carry out Programmable Module Installation (PMI). Programming and Relearning

2. Remove the center instrument panel finish panel. For additional information, refer to the Instrument Cluster / Carrier &/or Interior Moulding / Trim.

3. Remove the 4 screws and the FDIM.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
- Download the configuration information to the FDIM. For additional information, refer to Information Bus to carry out PMI. Programming and Relearning
