Audio Input Jack

Audio Input Jack

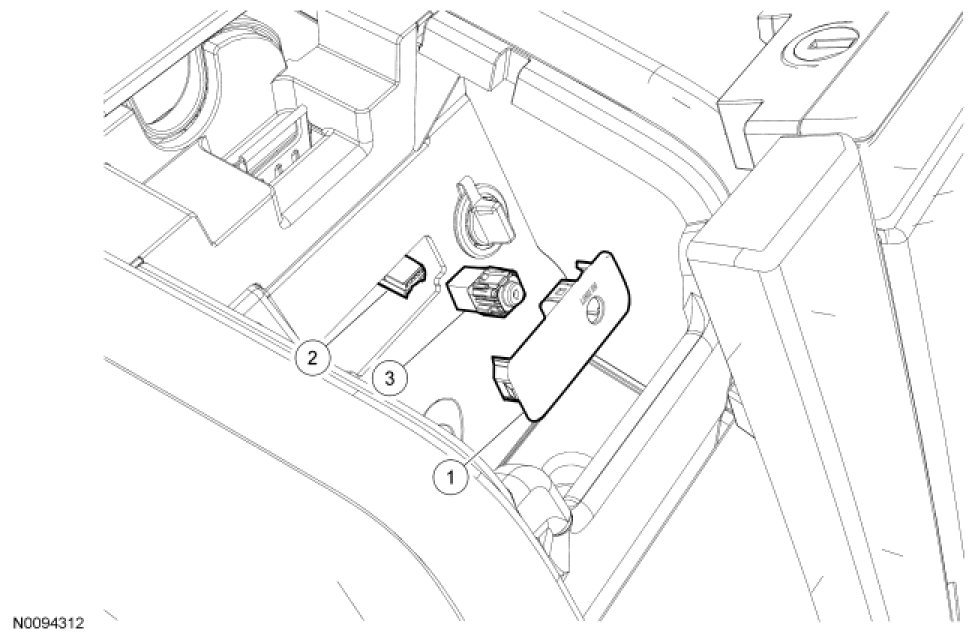

NOTE: Without the SYNC system shown, with the SYNC system similar.











Removal and Installation

1. Open the floor console rear stowage bin door.

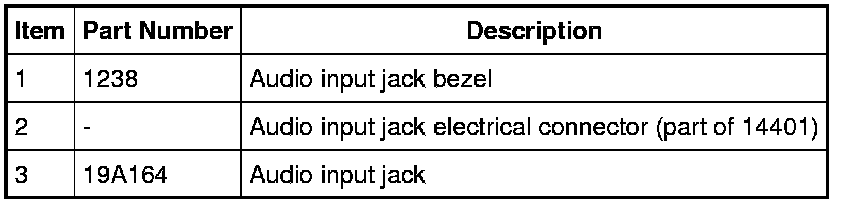

2. Using a suitable tool such as a trim tool, remove the audio input jack bezel by prying straight rearward.
- Disconnect the audio input jack electrical connector and the Universal Serial Bus (USB) cable, if equipped.

3. Release the tabs and remove the audio input jack.

4. To install, reverse the removal procedure.
