Alarm System Transmitter: Service and Repair

Passive Anti-Theft System (PATS) Transceiver









Removal and Installation

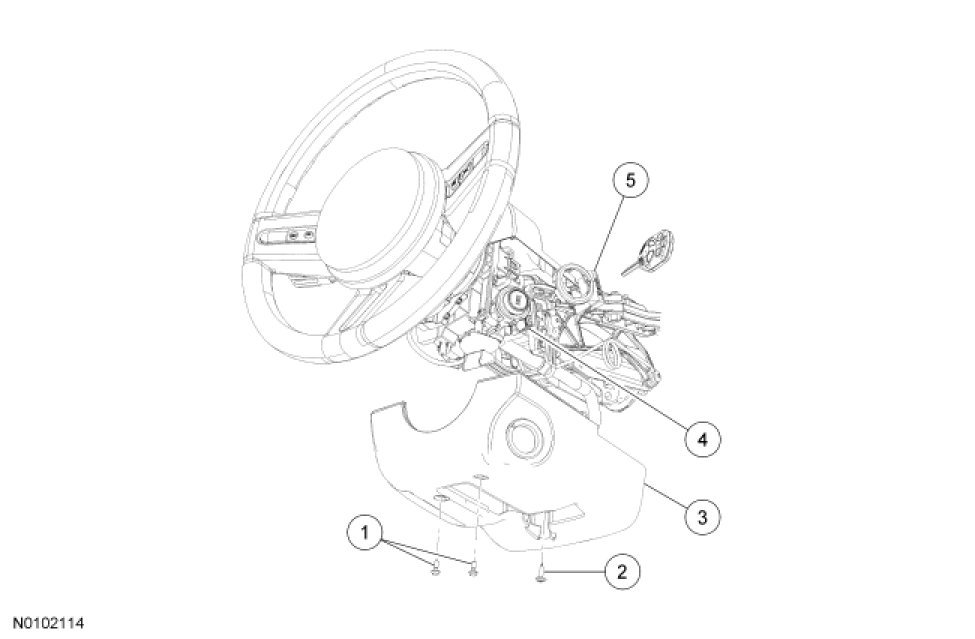

1. Remove the steering column opening trim panel. For additional information, refer to Instrument Panel - Exploded View in Instrument Cluster / Carrier &/or Interior Moulding / Trim.

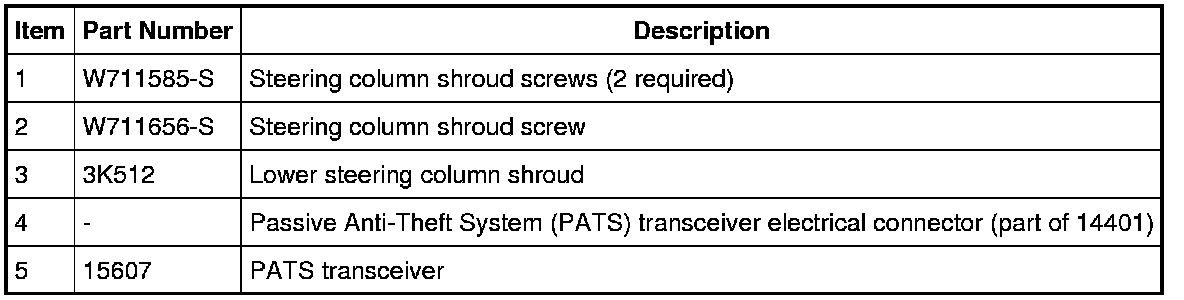

2. Remove the 3 screws and the lower steering column shroud.

3. Disconnect the Passive Anti-Theft System (PATS) transceiver electrical connector.

4. Release the clips and remove the PATS transceiver.

5. NOTE: Replacement of the PATS transceiver does not require the PATS keys to be programmed into the Instrument Panel Cluster (IPC) again.

To install, reverse the removal procedure.
