Antenna - AM/FM

Antenna - AM/FM









Removal and Installation

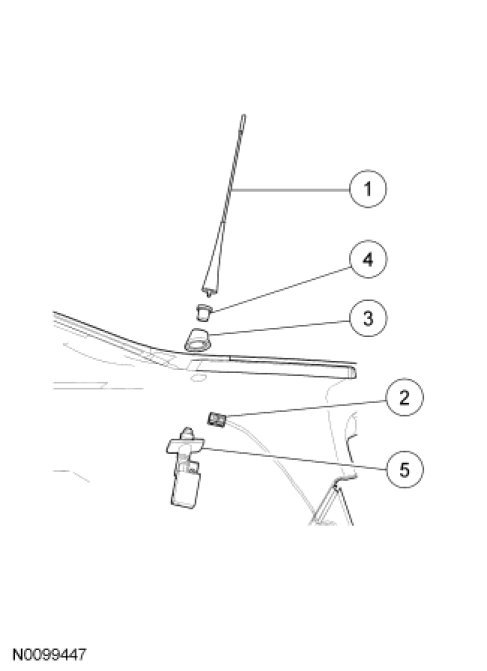

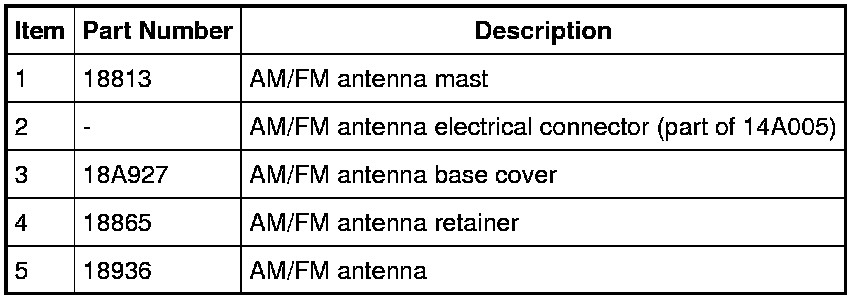

1. Remove the AM/FM antenna mast.

2. Pull back the RH side of the luggage compartment trim.

3. Disconnect the AM/FM antenna electrical connector.

4. Remove the retainer, the base cover, and the AM/FM antenna.

5. To install, reverse the removal procedure.
