Halfshaft Seal - RH

Halfshaft Seal - RH, Front Wheel Drive (FWD)

















Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

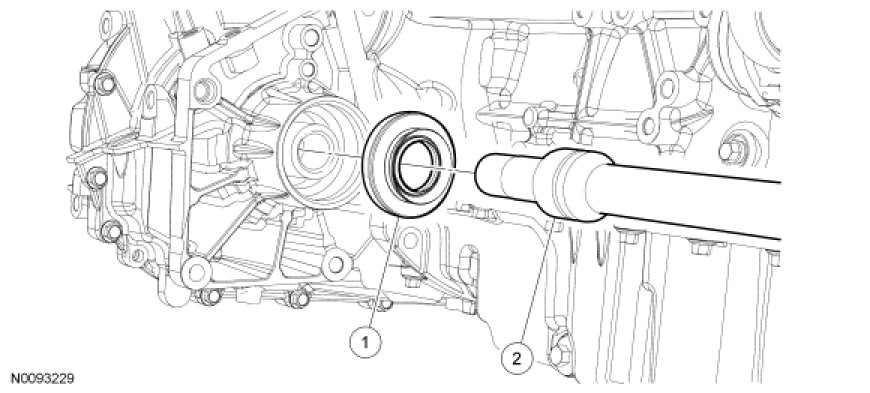

2. Remove the front RH halfshaft. For additional information, refer to Drive Axles, Bearings and Joints.

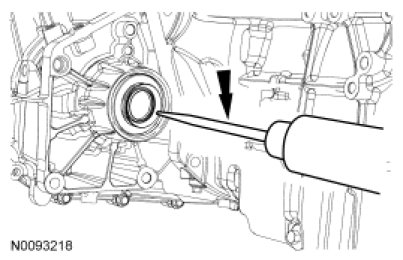

3. Using a suitable awl, poke a small hole in the halfshaft seal.

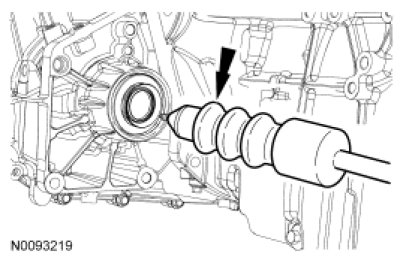

4. Using a suitable dent puller, remove the halfshaft seal.





Installation

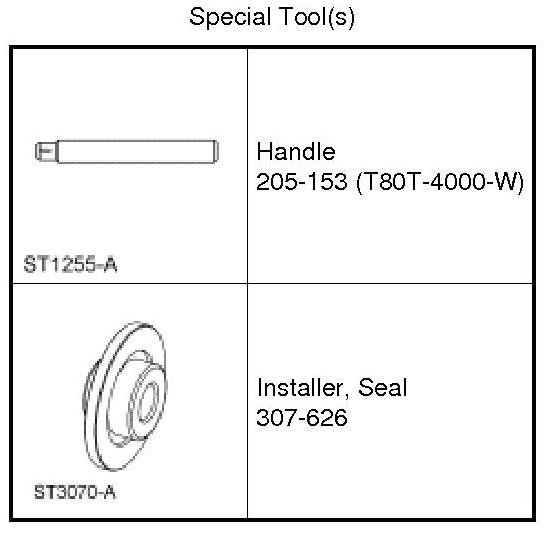

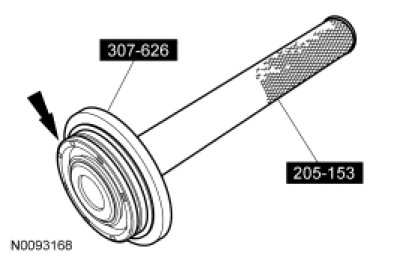

1. Install a new halfshaft seal on the Seal Installer and Handle.

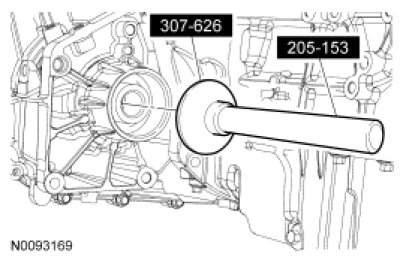

2. Using the Seal Installer and Handle, install the RH halfshaft seal.





3. Install the front RH halfshaft. For additional information, refer to Drive Axles, Bearings and Joints.

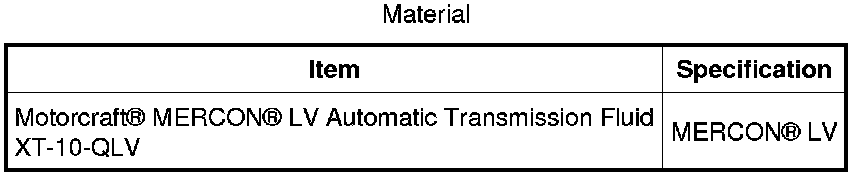

4. Fill the transaxle with clean transmission fluid.





5. Start the engine and let it run for 3 minutes. Move the range selector lever into each gear position. Check the transmission fluid level, making sure that the transmission fluid is at the correct level.
