Parking Lamp Bulb - LH

Parking Lamp Bulb - LH, Fusion

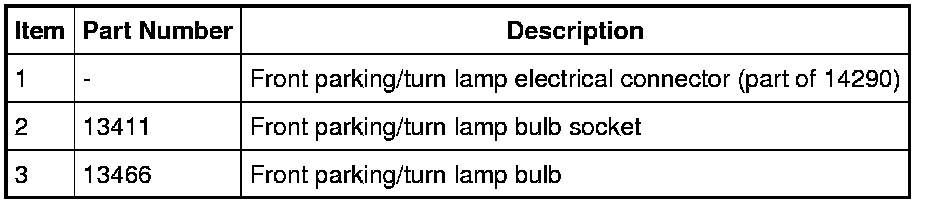

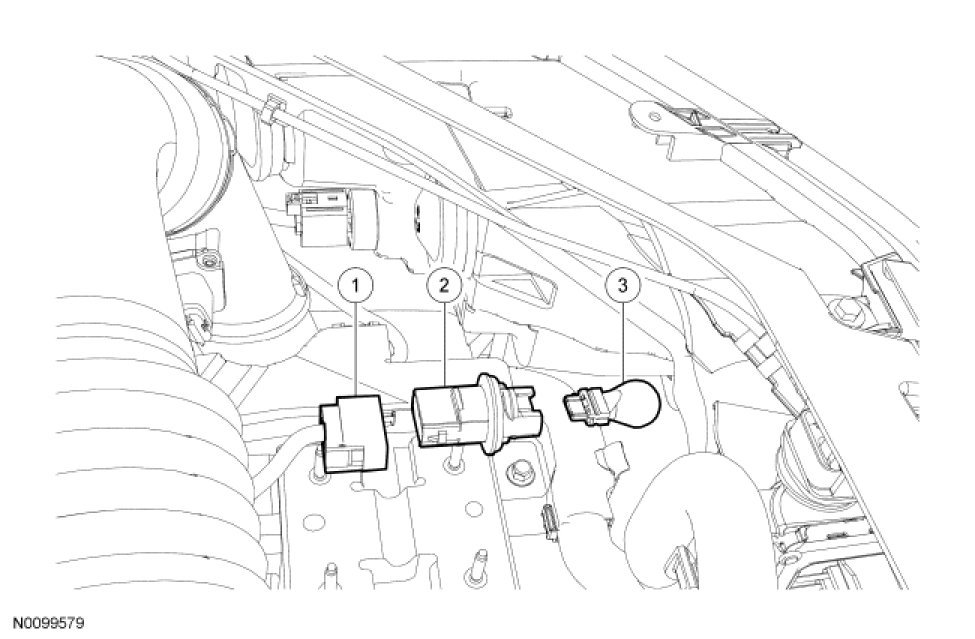

NOTE: Hybrid shown, non-Hybrid similar.











Removal and Installation

NOTE: The front parking/turn lamp on non-Hybrid vehicles equipped with a 2.5L or 3.0L engine can be accessed without removing any components.

1. For Hybrid vehicles, remove the battery tray. For additional information, refer to Battery.

2. For vehicles equipped with a 3.5L engine, remove the air cleaner. For additional information, refer to Fuel Delivery and Air Induction.

3. Disconnect the parking/turn lamp electrical connector.

4. Remove the front parking/turn lamp socket from the headlamp assembly.
- Remove the front parking/turn lamp bulb.

5. To install, reverse the removal procedure.
